FLIR TG297 กล้องถ่ายภาพความร้อน Thermal Camera (IR Resolution 160×120 pixels) | Max 1030°C
TG297 กล้องถ่ายภาพความร้อนที่ออกแบบมาสำหรับงานอุตสาหกรรม โดยการผสมผสานระหว่างเครื่องวัดอุณหภูมิอย่างแม่นยำและความสามารถในการจับภาพความร้อนได้สูงสุดถึง 1030°C และแน่นอนว่ายังมาพร้อมกับเทคโนโลยี MSX® (Multi-Spectral Dynamic Imaging) ที่จะช่วยเพิ่มความคมชัดของภาพถ่ายความร้อนให้คุณสามารถมองเห็นรายละเอียดต่าง ๆ ได้อย่างเต็มที่ ซึ่งถูกจดสิทธิบัตรเฉพาะ FLIR เท่านั้น
TG297 เหมาะสำหรับงานอุตสาหกรรมที่มีอุณหภูมิสูง เช่น อุตสาหกรรมเครื่องแก้ว, อุตสาหกรรมหลอมเหล็ก, หรือเตาหลอมต่าง ๆ ซึ่งจะช่วยให้คุณ "ตรวจสอบ" และ "แก้ไข" ปัญหาที่เกิดขึ้นได้อย่างรวดเร็วและแม่นยำ

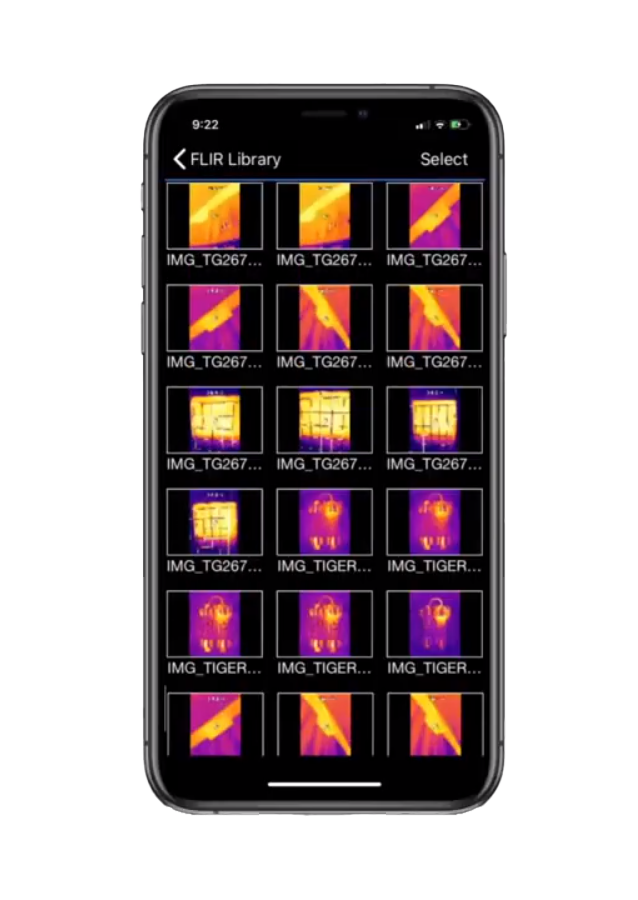

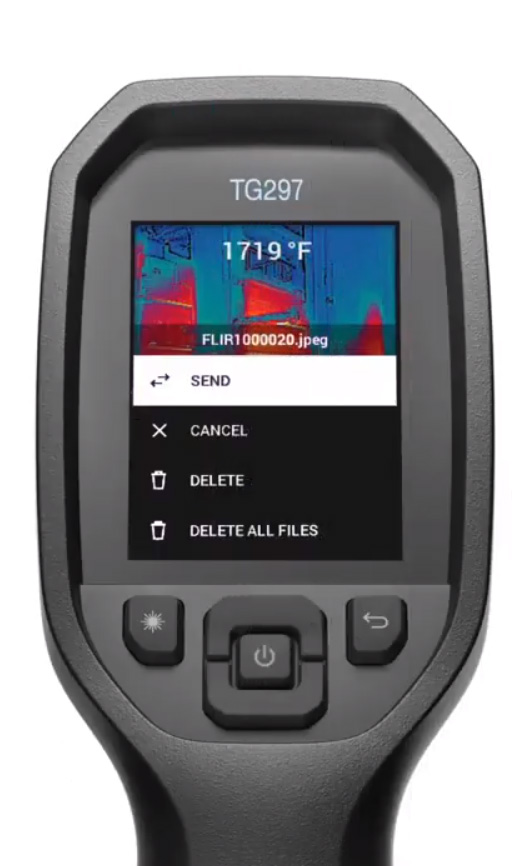

แอพพลิเคชั่นที่สามารถดาวน์โหลดใช้งานได้ทั้ง iOS และ Android ในการส่งข้อมูลแบบไร้สายจาก TG297 ด้วย Bluetoothไปยัง Smartphone หรือ Tablet ของคุณอย่างรวดเร็ว




Imaging and optical data | |
IR resolution | 160 × 120 pixels |
Digital image enhancement | Yes |
Thermal sensitivity/NETD | <70 mK |
Field of view (FOV) | 57° × 44° |
Minimum focus distance | 0.3 m (0.98 ft) |
Distance to spot ratio | 30:1 |
Image frequency | 8.7 Hz |
Focus | Fixed |
Focal plane array/ spectral range | Uncooled microbolometer/ 7.5 - 14 μm |
Detector pitch | 12 μm |
Image Presentation | |
Display resolution | 320 × 240 pixels |
Screen size | 2.4 in. portrait |
Color palettes | Iron, Rainbow, White hot, Black hot, Arctic, Lava |
Image adjustment | Automatic |
Image modes | MSX® (Multi Spectral Dynamic Imaging) Visual with temperature reading |
Gallery | Yes |
Measurement and analysis | |
Object temperature range | -25°C to 1030°C (-13°F to 1886°F) |
Measurement accuracy | up to ±3ºC (±7°F) for -25°C to 50°C (-13°F to 122°F) ±1.5ºC (±3°F) or ±1.5% whichever is greater for 50°C to 100°C (122°F to 212°F) ±2.5ºC (±6°F) or ±2.5% whichever is greater for 100°C to 500°C (212°F to 932°F) ±3ºC (±7°F) or ±3% whichever is greater for 500°C to 1030°C (932°F to 1886°F) |
IR temperature resolution | 0.1°C (0.2°F) |
Repeatability of reading | ±1% of reading or ±1°C (2°F), whichever is greater |
Response time | 150 ms |
IR thermometer measurement | Continuous scanning |
Minimum measurement distance | 0.26 m (0.85 ft) |
Spotmeter | Center spot on/off |
Set-up and service functions | |
Set-up commands | Local adaptation of units, language, date, and time formats Screen brightness (high, medium, low) Gallery, deletion of images |
Emissivity correction | Yes: 4 pre-set levels with custom adjustment |
Image storage and visual camera | |
Storage capacity on 4 GB card | 50,000 images |
Image file format | JPEG w/ spot temp data |
Digital camera resolution | 2 MP (1600 × 1200 pixels) |
Field of view (FOV) | 71° × 56°, adapts to IR lens |
Light and laser | |
Flashlight | 100 lumens LED, on/off option |
Class 1 laser | Projects center spot and outlines circular measurement area to indicate size |
Data communcation interfaces | |
Bluetooth® | BLE |
USB | Type-C: data transfer, power |
Additional data | |
Battery type | Rechargeable 3.7V Li-ion battery |
Battery operating time | 5 hrs scanning |
Battery charging time | 4 hrs to 90% |
Power management | Adjustable: off, 5 min, 15 min, 30 min |
Shock/vibration | 25 g (IEC 60068-2-27); 2 g (IEC 60068-2-6) |
Drop | Designed for 2 m (6.56 ft) |
Weight | 394 g (13.9 oz) |
Dimension | 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in) |
ข้อมูลจำเพาะ
ข้อมูลจำเพาะ
รหัสสินค้า | TG297 |
---|---|
ขนาด | 210 × 64 × 81 mm |
Weight | 394.0000 |
ผู้ผลิต | FLIR |
Field of View (FOV) | 57° × 44° |
Measurement Range | -25°C to 1030°C |
ฟังก์ชั่น | MSX® (Multi-Spectral Dynamic Imaging) |
Sensor Output Interface | USB 2.0, Bluetooth |
Power Supply | Rechargeable 3.7 V Li-ion battery |
Resolution | ไม่่ |
ระดับการป้องกัน | ไม่่ |
บันทึกข้อมูล | ได้ |
Detector Resolution | 160 × 120 pixels |
Accuracy | ±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) & 100°C to 1030°C (212°F to 1886°F) |
ดาวน์โหลด
ข้อมูล
วิดีโอ
วิดีโอ
บทความ
บทความ
FLIR TG297 กล้องถ่ายภาพความร้อน สำหรับงานอุตสาหกรรม | INDUSTRIAL HIGH TEMP THERMAL CAMERA
FLIR TG297 กล้องถ่ายภาพความร้อนที่ออกแบบมาสำหรับงานอุตสาหกรรม ตอบสนองการใช้งานตรวจสอบอุณหภูมิสูงด้วยช่วงการวัด -25 to 1030 °C ช่วยบอกตำแหน่งจุดที่ร้อนและเย็นได้อย่างทันที ทำให้การตรวจสอบวิเคราะห์ปัญหาเป็นไปได้อย่างรวดเร็ว
อุปกรณ์
อุปกรณ์
Accessories Included:
- TG297
- Wrist strap lanyard
- USB A to USB C cable
- Pouch
- Printed documentation
