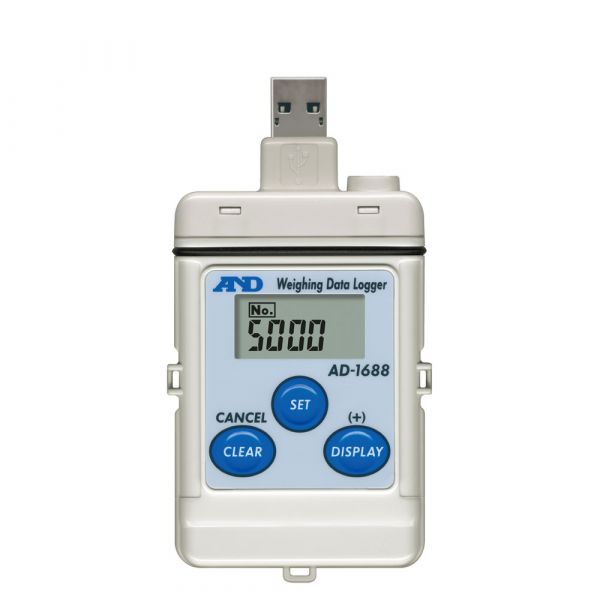

AND AD-1688 Weighing Data Logger

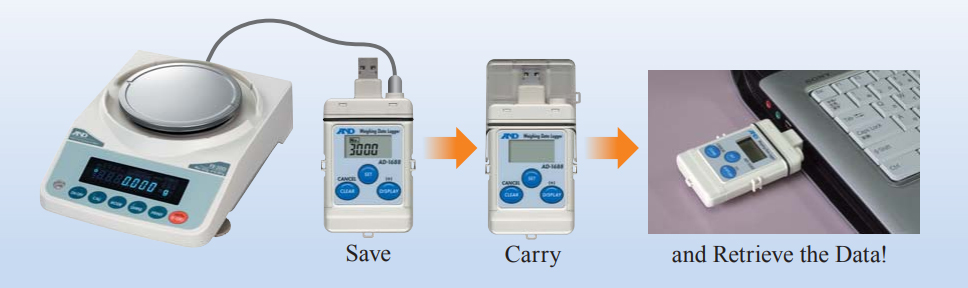

Weighing Data Logger, Dual interface with an RS-232C interface to import weighing data from an A&D balance or scale and a USB interface to export the data to a PC (no driver software is required). Large memory approx. 5,000 weighing data sets can be stored. Highly portable, small size and IP65 dust and waterproof (with the casing cover). No battery required, receives power supply directly from a balance, scale or PC.

Compatible with

■ AD-4212B ■ AD-4212C ■ GH series ■ Hr-i series ■ FZ-i series ■ FX-I series ■ FX-iWP series ■ GR series ■ GX-A series ■ GF-A series■ GX-K series ■ GF-K series ■ MC series ■ HR-AZ series ■ HR-A series

AND AD-1688 Weighing Data Logger

Model Specification

Memory size	Approx. 5,000 data sets in the standard format (15 characters in 1 data set) can be stored
Clock error	±1 minute / month
Compatible OS	Windows 2000 / XP / Vista
Dedicated power supply	Not required. Power is supplied by the weighing instrument or PC.
Operating environment	5 °C to 40 °C (41 °F to 104 °F), 85 %RH or less (no condensation)
Dimensions	55 × 103 ×16.5 mm
Weight	Approx. 60 g

* If the AD-1688 is not detected by your PC
Depending on your type of PC, if a USB extension cable is used, the signal may weaken and not be detected by the computer.
Please either connect the AD-1688 directly to your PC without using a USB extension cable, or connect the AD-1688 to your computer using an off-the-shelf USB hub.

More Information

SKU	AD-1688
Weight	100.000000
Dimension	55 x 103 x 16.5mm
Manufacturer	AND
Water resistance	IP65
Function for Scale	No
Resolution	No
Measurement Range	No
Other Function	Memory data : 5000 data Data output : USB, RS232 Protection class : IP65
Power Supply	No Need
Accuracy	±
