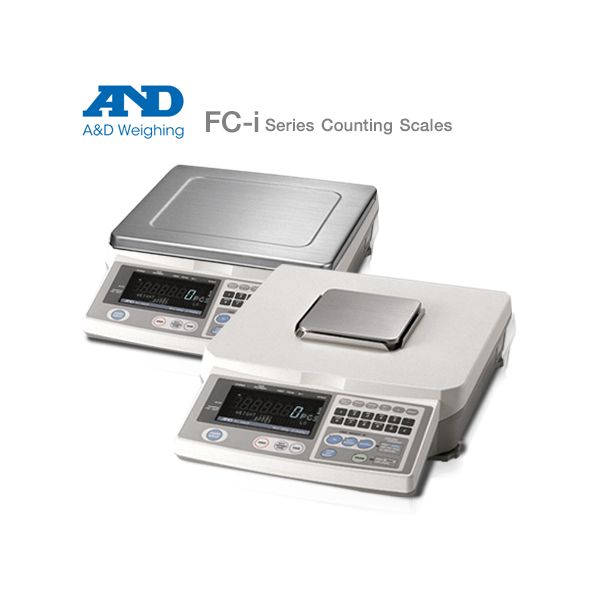

AND FC-i Series Counting Scales

SKU
FC-i Series
฿39,600.00

In stock

AND FC-i Series Counting Scales
Max 500g, 1Kg, 2Kg, 5Kg, 10Kg, 20Kg, 50kg (depends on model)
Automatic Counting Accuracy Improvement (Max. 1,000,000 pcs),
Accumulation (M+) function, Comparator function
Large Memory for 500 Items | 2 unit measurement g, lb
A&D, Japan

Price as configured ฿39,600.00

AND FC-i Series Counting Scales

Digital counting scales can count up to 1,000,000 counts. Two selectable the weighing unit (g, lb). The LCD screen has a backlight, read clearly. The screen was detachable from the weighing tray. The stainless steel weighing tray can be removable. Therefore easy to clean resistant to chemicals. Can be used in all environments.
AND, Japan

Function

  • Automatic Counting Accuracy Improvement (ACAI) function: ACAI automatically corrects errors caused by variation in unit weights. this function provides greater counting accuracy.
  • Large memory for 500 items: Stores data on unit weight, tare weight, upper/lower limit values, and gross quantities (accumulated total) according to ID number.
  • Customizable printing format with the Universal Flexi Coms (UFC) function: You can design your own printing format and easily print out the measurement data.
  • Accumulation (M+) function: Total piece calculation stored in memory. Works in automatic mode or manual mode.

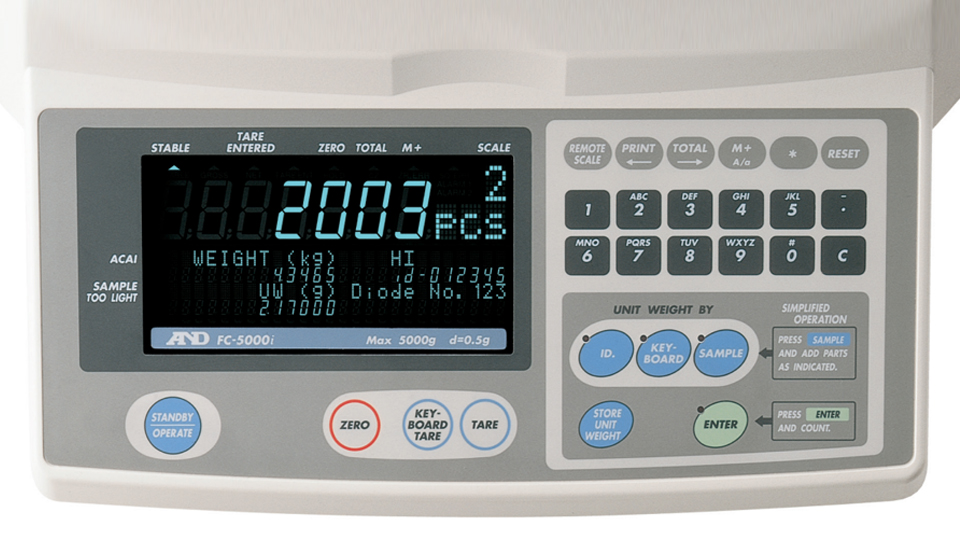

  • Comparator function with buzzer: The scale can indicate whether the count or weight of pieces is within the designated limits with "HI", "OK" or "LO" display.
AND FC-i Series Counting Scales
AND FC-i Series Counting Scales
Model FC-500i FC-1000i FC-2000i FC-5000i FC-10Ki FC-20Ki FC-50Ki
Capacity 500 g 1 Kg 2 Kg 5 Kg 10 Kg 20 Kg 50 Kg
Minimum unit weight Normal mode 0.01 g 0.02 g 0.04 g 0.1 g 0.2 g 0.4 g 1 g
Fine mode 0.0005 g 0.001 g 0.002 g 0.005 g 0.01 g 0.02 g 0.05 g
Display resolution 0.05 g 0.1 g 0.2 g 0.5 g 1 g 2 g 5 g
Maximum count display 1,000,000

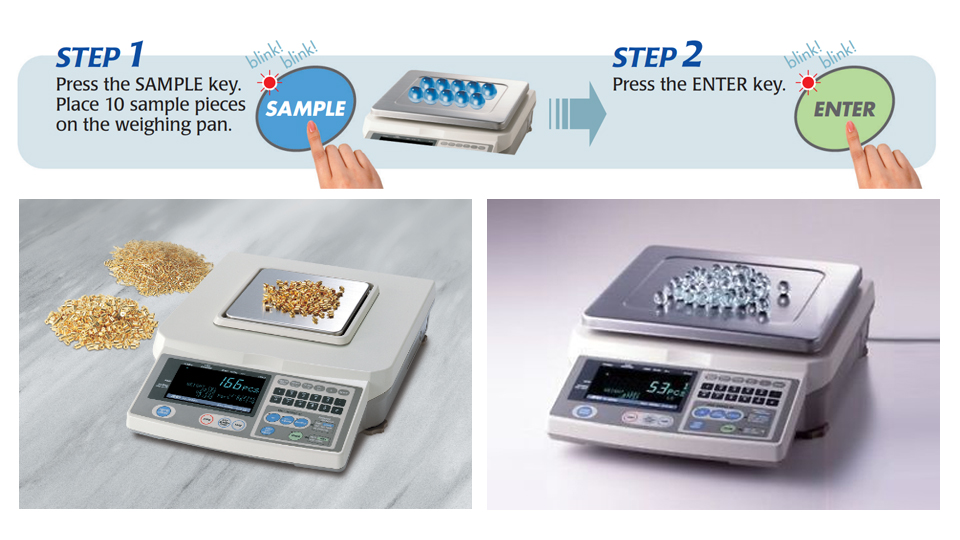

Number of samples 10 pieces (5, 25, 50, 100 or at random setting)
Units of measure grams (g), pounds (lb)
Pan Size 205 x 152mm 300 x 280mm
Dimensions 330 x 426 x 107mm 330 x 426 x 117mm
Weight 5.5 Kg 6.5 Kg 6.7 Kg 7.5 Kg
Power AC adapter (100, 120, 220, 240VAC 50Hz/60Hz)
SKUFC-i Series
ManufacturerAND
Water resistanceNo
Function for ScaleConnects to Computer, Counting scale
Resolution

FC-i Series (Minimum display)

0.05g

0.1g

0.2g

0.5g

1g

2g

5g

Measurement Range

FC-i Series (Weighing capacity)

500g

1Kg

2Kg

5Kg

10Kg

20Kg

50Kg

Other Function
  • Accumulation (M+) function for counting
  • Comparator function with buzzer
Power SupplyAC adapter 100, 120, 220, 240VAC 50Hz/60Hz)
Accuracy

FC-i Series (Linearity)

±0.05g

±0.1g

±0.2g

±0.5g

±1g

±2g

±5g

Your Rating

ทดลองใช้งานฟังก์ชั่น Counting Mode ด้วยเครื่องชั่งน้ำหนักดิจิตอล EJ-303 ยี่ห้อ AND

เครื่องชั่งดิจิตอล ส่วนใหญ่คงใช้งานการแค่เพียงชั่งน้ำหนักเท่านั้น เนื่องจากการแสดงผลตัวเลขผ่านหน้าจอ สามารถแสดงผลจุดทศนิยมได้ละเอียด แต่บทความนี้ Lega tool ขอนำเสนอ ฟังก์ชั่นนับจำนวน(Counting mode) ที่เปลี่ยนการชั่งน้ำหนักแบบธรรมดาให้ เป็นการนับจำนวน(ชิ้น) เพื่อสะดวกต่อการใช้งาน เช่น นับเม็ดจำนวนยา นับจำนวนชิ้นงาน หรือ คำนวนสูตรทำขนม เป็นต้น

อุปกรณ์มาตรฐาน

  • ตัวเครื่อง
  • คู่มือ Instruction manual
  • AC Adapter
