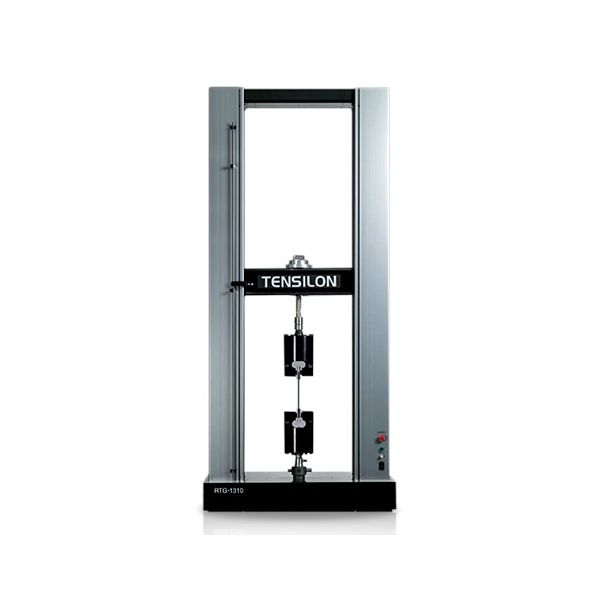

AND RTG-1225 Universal Material Testing Machine

AND TENSILON RTG-1225 Universal Material Testing Machine was developed using out superior knowledge of force sensor and measurement control technology, enables connection between sensor and machines. Our measurement control system at the core of our testing machines offer the highest accuracy and most rapid calculation in the world.

TENSILON RTG-1225 is our newest universal testing machine providing cost-effective measurement with a higher level of accuracy.

SPECIFICATION

Loading system	Closed-loop microcomputer controlled digital servomechanism
Maximum capacity	2.5 kN
Effective test width	420 mm
Crosshead stroke	1100 mm
Effective stroke	665 mm
Crosshead speed	0.05 to 1000 mm/min
Crosshead speed accuracy	±0.2%
Crosshead random speed	0.01 mm/min step in crosshead speed range
Crosshead speed and load capacity	Maximum load capacity in full speed range
Crosshead return speed	1000 mm/min or 500 mm/min
Load measurement accuracy	±1% of reading (within range of 1/1 to 1/500 of load cell rating)
Load range	Fully automatic range swithcing (up to 128 folds)
Load calibration	One touch operation load calibration with the calibration circuit embedded in the load cell. Equipped with a load cell rating discrimination function
Sampling speed	1 msec
Safety function for overload	Provided
Stroke limiter	Upper - Lower limit 2 points
Power requirement	AC 100V, 50/60 Hz
Dimension / Weight	708 x 436 x 1555 mm / 100kg

More Information

SKU	RTG-1225
Weight	100.000000
Dimension	708 x 436 x 1555mm
Manufacturer	AND
Data logger	No
Resolution	No
Measurement Range	Maximum capacity : 2.5 kN Effective stroke : 665 mm
Other Function	No
Power Supply	AC 100V
Water resistance	No
Sensor Output Interface	No
Accuracy	±
