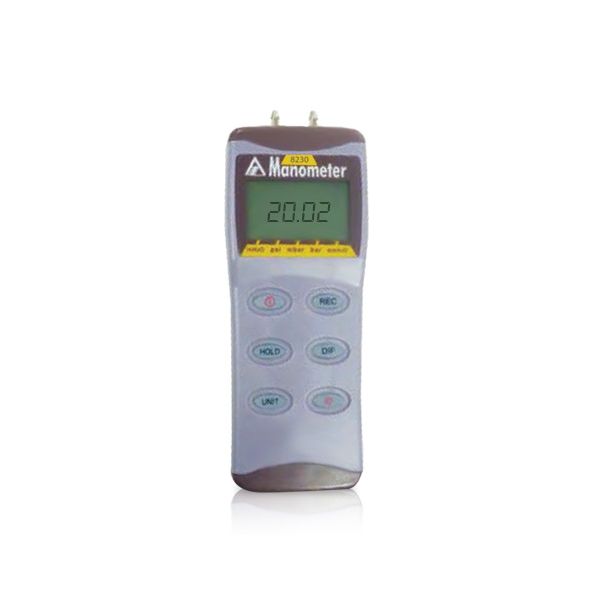

AZ-8230 Digital Manometer 30 psi

SKU

AZ-8230

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

-10%

Special Price ฿5,670.00 was ฿6,300.00

Out of stock now

Out of stock

Manometer เครื่องวัดความดัน
ช่วงการวัดความดัน-แรงดัน 30.00 psi
หน่วยการวัดสูงสุดถึง 11 หน่วย
หน้าจอ LCD พร้อมไฟ Backlight
ฟังก์ชั่นหลากหลาย Hold, Max/Min, Record

สินค้าเข้าช่วงเดือนเมษายน 2024

Categories: AZ, Product Type 2 (Stock Item)

AZ 8230 Manometer เครื่องวัดความดัน (30 psi)

Features

Hold function freezes current readings
Over-range indication with error messages
Backlight function for dark area
Auto power off disablement
Low battery indicator
Real time shows in recording mode

Range & Resolution

Measurement	psi	kPa	mmHg	Kg/cm²	mbar (hpa)	bar	inH₂O	cmH₂O	inHg	ftH₂O	oz/inch²
Range	±30.00	±206.8	±1551	±2.109	±2068	±2.068	±830.4	±2101	±61.08	±69.20	±480.0
Resolution	0.02	0.2	1	0.002	2	0.002	0.5	2	0.04	0.04	0.3

Pressure Conversion Table (ตารางแปลงหน่วยความดัน)

SPECIFICATION

Accuracy	±0.3% of full scale at ±25ºC
Repeatability	±0.2% to 0.5% of full scale
Linearity/ Hysteresis	±0.29% to 1% of full scale
Combined accuracy	±1.0% of full scale
Response time	0.5 second
Compensated temp. range	0 to 50ºC
LCD size	29 x 51 mm
Power requirement	Battery 9V
Dimensions/ Weight	182 x 72 x 30 mm/ 150 g

More Information

SKU	AZ-8230
Weight	150.000000
Dimension	182 x 72 x 30 mm.
Manufacturer	AZ
Data logger	No
Type of Pressure	Gauge Pressure
Resolution	0.02 psi
Measurement Range	-30.00 to 30.00 psi
Other Function	Hold function freezes current readings Over-range indication with error messages Backlight function for dark area Auto power off disablement Low battery indicator Real time shows in recording mode
Power Supply	Battery 9V
Water resistance	No
Sensor Output Interface	No
Accuracy	±0.3%F.S.

PDF Download

Accessories Included:

AZ 8215
Connection hose
Battery 9
Hard carry case
Manual
