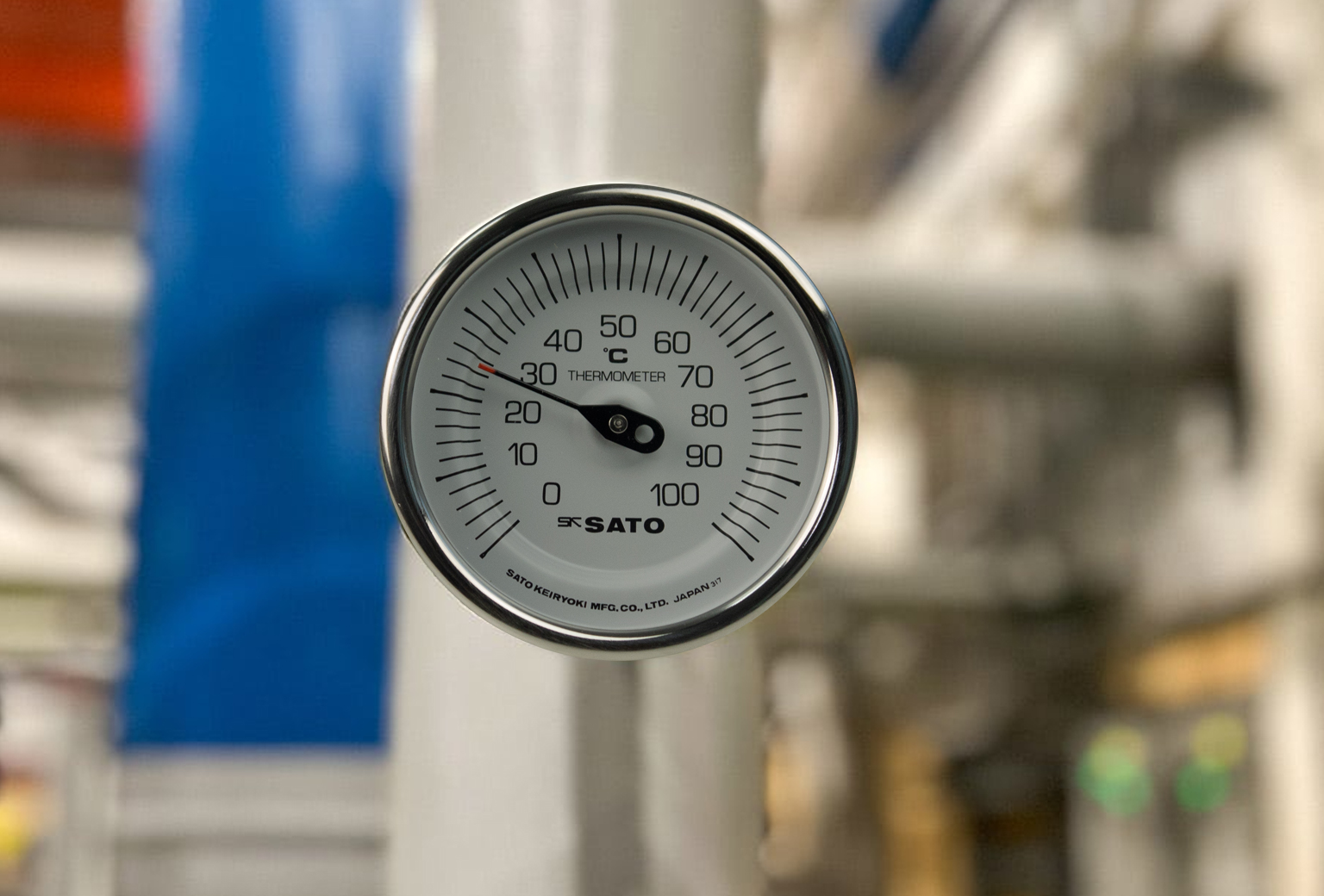

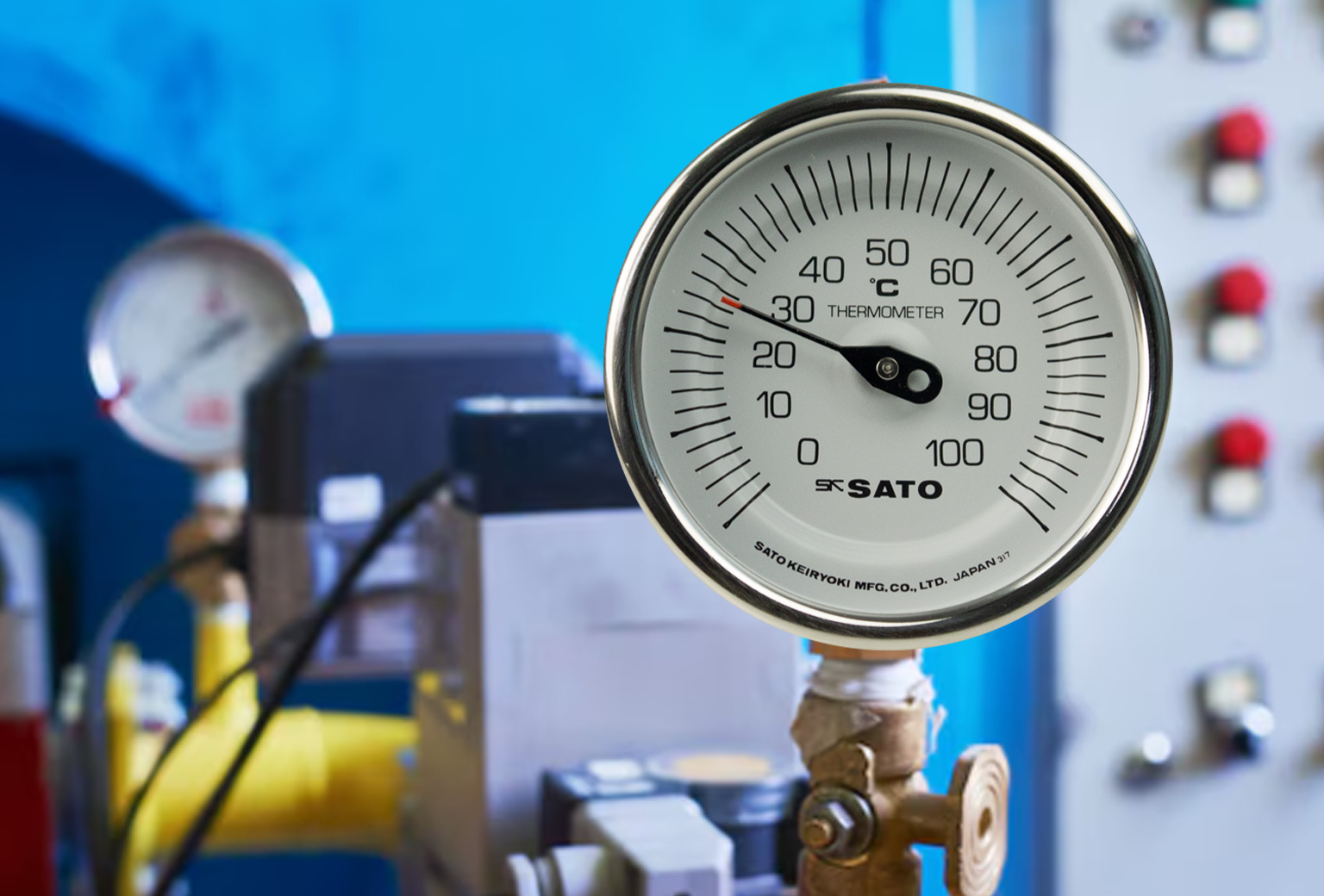

BM Series Bimetal Thermometer (Made to order)

SKU

BM-Series

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

฿0.00

Pre-Order Item

Out of stock

Bimetal Thermometer (Made to order)
Model, Type, Measurement, Stem depend by user.
Reference data as details below.
sk-SATO, Japan

Categories: Bimetal Thermometers, Industrial Bimetal Thermometer, SK Sato

BM Series Bimetal Thermometer (Made to order) สั่งทำแบบพิเศษตามต้องการ

BM-T-70S (How to Order)

0 to 200°C
Sensing Stem ø8 x 250 mm Materials: SUS316
Union type R (PT) 3/4 Materials: SUS316

Order Format

Select Model and Cat.No. (A: Case Type (Cat.No.))
Model : BM-T-70S, Cat.No. : 2470-B
Select Measuremetn range and Dial diameter. (B: Standard for scale plate)
Temperature Range : 200°C , Dial diameter : ø40 mm
Select Materials, Diameter and Sensing Stem length. (C: Standard for sensing stem)
Materials : SUS316, Diameter : ø8 mm, Length : 250 mm
Select Sensing Stem type. (D: Standard for connector for sinsing stem)
Type : SW
Select Screw type and Materials. (E: Standard for screw)
Name : R (PT) 3/4 , Materials : SUS316

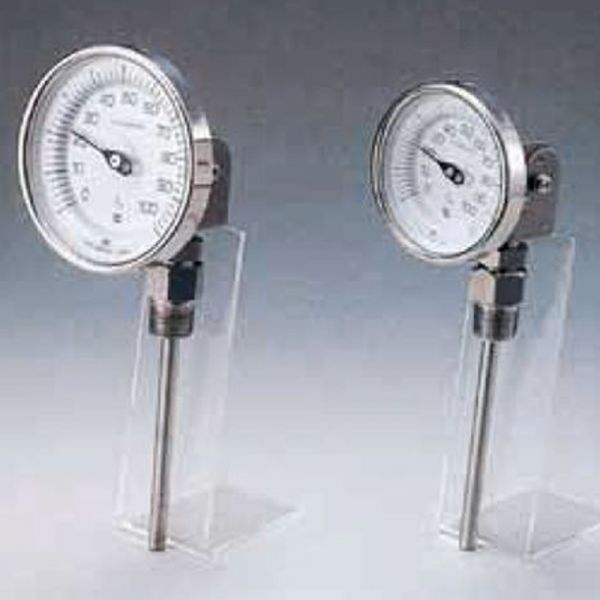

A: Case Type (Cat.no.)

Type T : Back connection type
Type S : Bottom connection type
Type F : Tilting type

Type	Dial diameter	Model	Cat. No.
T	ø40 mm	BM-T-40S	2440-B
	ø60 mm	BM-T-60S	2460-B
	ø70 mm	BM-T-70S	2470-B
	ø90 mm	BM-T-90S	2490-B
S	ø60 mm	BM-S-60S	2465-B
	ø70 mm	BM-S-70S	2475-B
	ø90 mm	BM-S-90S	2495-B
F	ø70 mm	BM-F-70S	2700-B
F	ø90 mm	BM-F-90S	2710-B

B: Standard for scale plate

◇ : Available
◆ : Available with JIS standard

Temperature Range (°C)	Minimum div.	Dial diameter
Temperature Range (°C)	Minimum div.	ø40 mm	ø60 mm	ø70 mm	ø90 mm
-50 to 50	2/1	◇	◆	◇	◇
-30 to 50	1/1	◇	◆	◇	◇
0 to 50	1/1	◇	◆	◇	◇
0 to 100	2/1	◇	◆	◇	◇
0 to 120	2/1	◇	◆	◇	◇
0 to 150	2/1	◇	◆	◇	◇
0 to 200	5/1	◇	◆	◇	◇
0 to 300	10/1	◇	◇	◇	◇
0 to 400	10/1	—	—	—	◇
0 to 500	10/1	—	—	—	◇

C: Standard for Stem

◇ : Available Maximum length 800mm

Material	Stem diameter
Material	ø6 mm	ø8 mm	ø10 mm	ø12 mm
SUS 304	◇	◇	◇	◇
SUS 316	◇	◇	◇	◇

D: Standard for connector for sensing stem

Type	Name
NB	Screwless type
SC	With fixed screwed connection type
SF	Semi-union type
SW	Union type
UW	Union type with thermowell

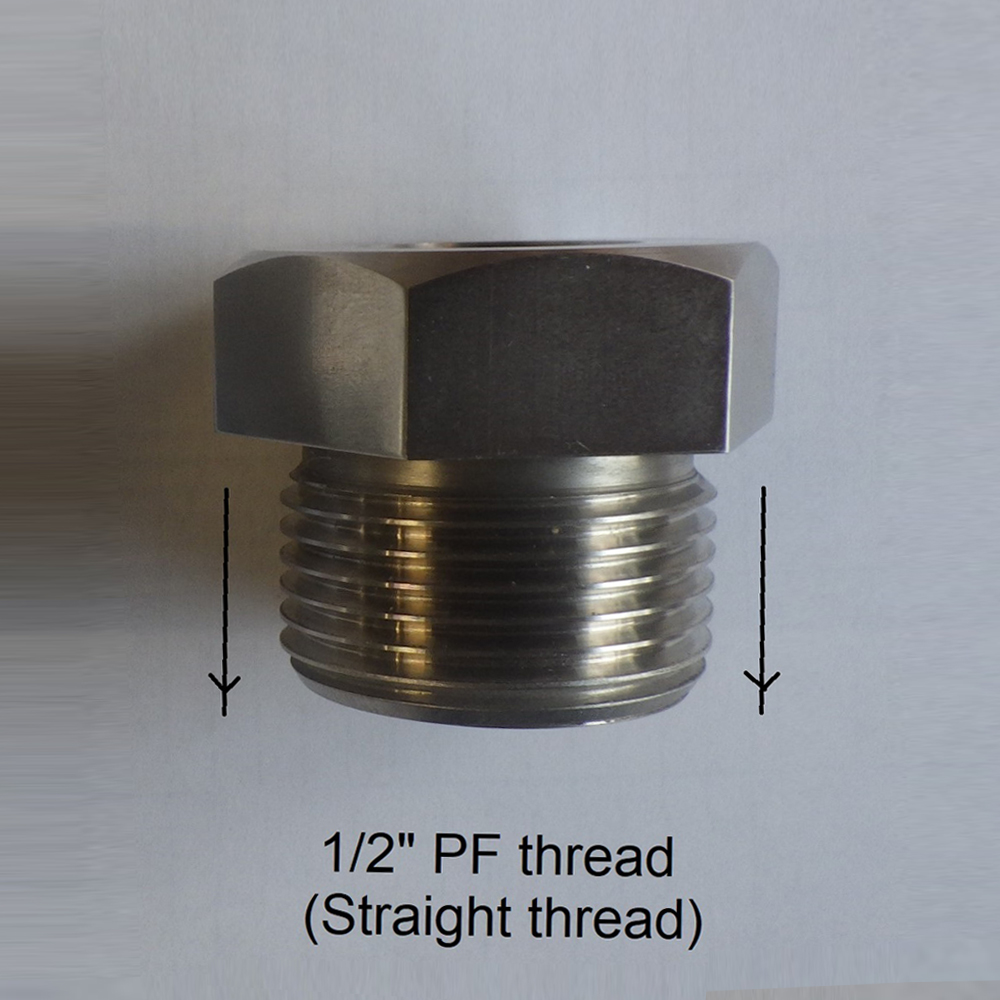

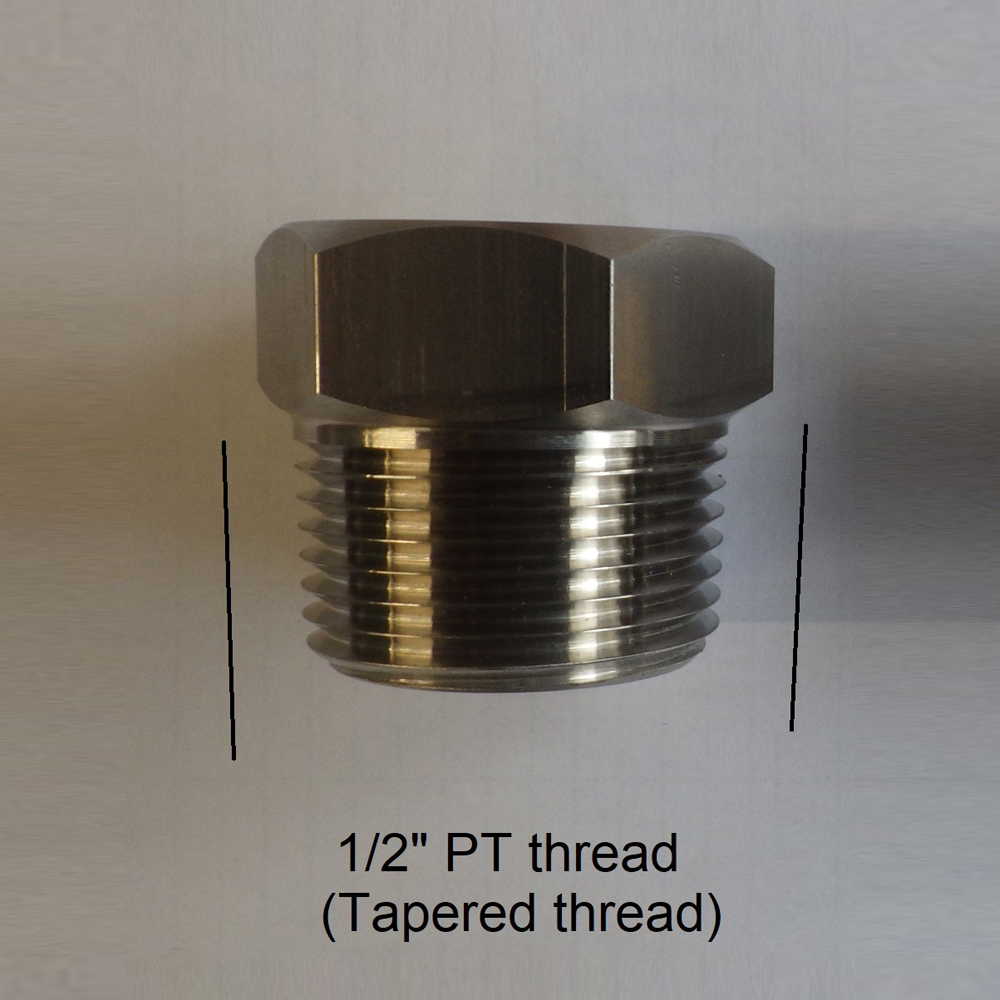

E: Standard for screw

◇ : Available

Name	Sensing stem dia. applied	SUS304	SUS316	SUS304 with slide screw
R (PT), G (PF) 1/4	ø6 mm	◇	◇	—
R (PT), G (PF) 3/8	ø6, 8 mm	◇	◇	◇
R (PT), G (PF) 1/2	ø6, 8, 10, 12 mm	◇	◇	◇
R (PT), G (PF) 3/4	ø6, 8, 10, 12 mm	◇	◇	◇
R (PT), G (PF) 1	ø8, 10, 12 mm	◇	◇	◇

More Information

SKU	BM-Series
Weight	0.000000
Dimension	0
Manufacturer	SK Sato
Measurement object	Temperature in Liquid
Other Function	No
Power Supply	-
Water resistance	No
Temperature Range	Made to Order
Accuracy	-
