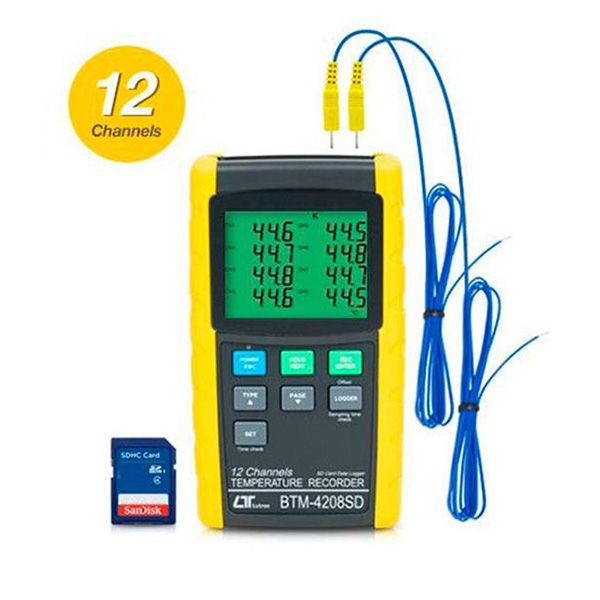

Lutron BTM-4208SD Temperature Recorder 12Ch | Max.1300℃

SKU
BTM-4208SD
฿35,500.00
In stock

12 channels Temperature Recorder
Supports Thermocouple Type K, J,T, T, R,S
Included Thermocouple Type K x 2
Measurement range: -100 to 1300℃ (depends on probe)
Real Time datalogger with SD Card (1 GB to 16 GB.)
Sampling Time Setting from 1 to 3600 seconds.
RS232/USB PC COMPUTER interface
Lutron

Add to Compare

Lutron BTM-4208SD Temperature Recorder 12Ch | Max.1300℃

12 Channels Temperature Recorder, compatible with Thermocouple type K, J, T, E, R, S. Super large LCD display with Green blacklight easy to readout the values. Auto power off, Data hold, Record MAX. and MIN. reading and RS232/USB PC COMPUTER interface.

Datalogger Sampling Time Setting range

  • Auto: 1 second to 3600 seconds
  • Manual: Push the data logger button once will save data one time.

Innovation and easy operation, No need to setup software, Just put the SD Card into the computer. You can open file data as Excel directly.

EXCEL data screen (for example) EXCEL graphic screen (for example)
EXCEL data screen (for example) EXCEL graphic screen (for example)

ThermocoupleMore Thermocouple Click!

Supports Thermocouple Type K, J, T, E, R, S (Measurement range depends on probe)

Sensor type Range Resolution Accuracy
Type K -50.1 to -100.0 °C 0.1°C ± (0.4 % + 1°C)
-50.0 to 999.9°C ± (0.4 % + 0.5°C)
1000 to 1300°C 1°C ± (0.4 % + 1°C)
Type J -50.1 to -100.0°C 0.1°C ± (0.4 % + 1°C)
-50.0 to 999.9°C ± (0.4 % + 0.5°C)
1000 to 1150°C 1°C ± (0.4 % + 1°C)
Type T -50.1 to -100.0°C 0.1°C ± (0.4 % + 1°C)
-50.0 to 400.0°C ± (0.4 % + 0.5°C)
Type E -50.1 to -100.0°C 0.1°C ± (0.4 % + 1°C)
-50.0 to 900.0°C ± (0.4 % + 0.5°C)
Type R 0 to 600°C 1°C ± (0.4 % + 0.5°C)
601 to 1700°C ± (0.4 % + 1°C)
Type S 0 to 600°C 1°C ± (0.4 % + 0.5°C)
601 to 1500°C ± (0.4 % + 1°C)
Datalogger Sampling Time Setting range Auto: 1 second to 3600 seconds
Manual: Push the data logger button once will save data one time.
Advanced setting
  • Set clock time (Year/ Month/ Date, setting Hour/ Minute/ Second)
  • Set loop time of recorder
  • Decimal point of SD card setting
  • Auto power OFF management
  • Set beep Sound ON/ OFF
  • Set temperature unit to ℃ or ℉
  • Set sampling time
  • SD memory card Format
Data Output RS 232/USB PC computer interface.
Power Supply Battery AA x 8 or Adapter 9V (Optional)
Dimension/ Weight 225 X 125 X 64 mm (944g)
SKUBTM-4208SD
Weight948.000000
Dimension225 x 125 x 64mm
ManufacturerLutron
Measurement objectAmbient Temperature, Core Temperature, Surface Temperature, Temperature in Liquid
Sensor connector typeMiniture connector for thermocouple
Supported sensor TypeThermocouple Type K , J , T , E , R , S
Other Function
  • Set clock time (Year/ Month/ Date, Hour/ Minute/ Second)
  • Set loop time of the recorder
  • The decimal point of the SD card setting
  • Auto power OFF management
  • Set beep Sound ON/OFF
  • Set temperature unit to ºC or ºF
  • Set sampling time
  • SD memory card Format
Power SupplyAlkaline Battery AAx8, AC to DC9V adapter (Optional)
Resolution0.1℃/ 1℃
Temperature Sensor TypeThermocouple
Number of Channel3 Channels and more...
Water resistanceNo
Sensor Output InterfaceNo
Temperature Range-100 to 1300℃
Data loggerYes
Accuracy
  • Type K: ±0.4% + 0.5℃ (at -50.0 to 999.9℃)
  • Type J: ±0.4% + 0.5℃ (at -50.0 to 999.9℃)
  • Type T: ±0.4% + 0.5℃ (at -50.0 to 400.0℃)
  • Type E: ±0.4% + 0.5℃ (at -50.0 to 900.0℃)
  • Type R: ±0.5% + 1℃ (at 0 to 1700℃)
  • Type S: ±0.5% + 1℃ (at 0 to 1500℃)
Your Rating

Product's Video

การเลือกใช้โพรบวัดอุณหภูมิ Type K ( Temperature Probes Type K )

เครื่องมือวัดอุณภูมิทั่วไปจะมีให้เลือกหลายใช้งานเเบบ เช่น เครื่องวัดอุณหภูมิเเบบอินฟราเรด เครื่องวัดอุณหภูมิเเบบไร้สาย เครื่องวัดอุณหภูมิเเบบมีโพรบในตัว หรือ เครื่องวัดอุณหภูมิแบบเเยกโพรบ ซึ่งเครื่องวัดอุณภูมิเเต่ละชนิดจะสามารถใช้งานได้เลยบนตัวของมันเอง เเต่เครื่องวัดอุณหภูมิเเบบเเยกโพรบ

เทอร์โมคัปเปิ้ล (Thermocouple) คืออะไร?

เซ็นเซอร์เทอร์โมคัปเปิลคืออะไร? ที่มา : https://bit.ly/2Cept3h เทอร์โมคัปเปิล คือ อุปกรณ์สำหรับวัดอุณหภูมิ ประกอบด้วยลวดโลหะที่แตกต่างกันสองเส้นรวมกันเพื่อสร้างรอยต่อ เมื่อเชื่อมต่อกับเครื่องทำความร้อนหรือระบายความร้อนจะมีแรงดันไฟฟ้าเล็ก ๆ เกิดขึ้นในวงจรไฟฟ้าซึ่งสามารถวัดได้และตรงกับอุณหภูมิ ในทางทฤษฎีแล้วโลหะสองชนิดสามารถนำมาใช้เพื่อทำเทอร์โมคัปเปิ้ล แต่ในทางปฏิบัติมีจำนวนชนิดที่ใช้กันอยู่ทั่วไป พวกเขาได้รับการพัฒนาเพื่อให้การปรับปรุงความเป็นเส้นตรงและความถูกต้องและประกอบด้วยโลหะผสมที่พัฒนาขึ้นเป็นพิเศษ เทอร์โมคัปเปิ้ล สามารถทำเพื่อให้เหมาะกับเกือบทุกการใช้งาน ซึ่งสามารถทำเพื่อให้มีประสิทธิภาพตอบสนองได้อย่างรวดเร็วและการวัดช่วงอุณหภูมิที่กว้างมาก เทอร์โมคัปเปิ้ล (Thermocouple) ทำอะไร?

DATA LOGGER แบบใช้ SD CARD

DATA LOGGER แบบ SD CARD ช่วยให้การบันทึกข้อมูลเป็นไปได้อย่างสะดวกและรวดเร็วไม่ต้องยุ่งยากในการเชื่อมต่อกับซอฟต์แวร์ใดๆเพื่อที่จะดูข้อมูล เพียงบันทึกข้อมูลลง SD CARD เท่านี้ก็ข้อมูลทั้งหมดก็จะถูกบนทึกอยู่ในSD CARD เราสามารถนำไปเสียบกับคอมพิวเตอร์เพื่อจะดูข้อมูลได้ทันที ทั้งนี้ เครื่องวัดแบบ SD Card Series มีแบบเครื่องสีดำและสีขาว เครื่องสีดำส่วนมากจะเป็นเครื่องที่ใช้วัดเกี่ยวกับอุณหภูมิความชื้นเป็นส่วนมาก ส่วนเครื่องสีขาวจะเป็นเครื่องวัดค่าทั่วๆไป เช่น คุณภาพน้ำ อุณหภูมิและความชื้น ความสั่นสะเทือน ความเร็วลม เป็นต้น

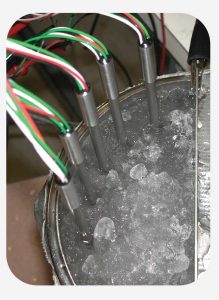

สาเหตุและปัญหาต่างๆ ที่ทำให้ตัววัดอุณหภูมิมีอายุการใช้งานสั้นลงกว่าปรกติ

อุณหภูมิ เป็นตัวแปรทางด้านกายภาพ ซึ่งสามารถเปลี่ยนแปลงโดยเพิ่มขึ้นหรือลดลงได้ตลอดเวลา ซึ่งส่งผลกระทบต่อระบบต่างๆ ที่เราสนใจ ไม่ว่าจะเป็นการทดลอง หรือในระบบอุตสาหกรรม จึงจำเป็นต้องควบคุม และ สามารถตรวจจับการเปลี่ยนแปลงของตัวแปรเหล่านี้ เซนเซอร์ เป็นอุปกรณ์ซึ่งสามารถใช้ตรวจจับการเปลี่ยนต่างๆ รวมทั้งอุณหภูมิ ซึ่งผลที่ได้จากเซนเซอร์ สามารถนำมาควบคุมการทำงานของระบบได้

อุปกรณ์ที่มีมาในชุด:

  • Main unit x 1
  • Instruction manual x 1
  • Calibration Certificate (from manufacturer) x 1
  • Type K Temp. Probe, (TP-01) x 2
  • Hard carrying case, (CA-08) x 1
  • SD CARD 4 GB x 1
  • Battery AA x 8 (ทางเลกะแถมให้ฟรี)
 อุปกรณ์ที่มาในชุด

▲ ภาพแสดงอุปกรณ์ที่มาในชุดจากทางโรงงาน
