CEM DT-9880 Particle Counter

DT-9880 4 in 1 Particle Counter comes with 2.8" color TFT LCD display & a Micro SD memory card for capturing images (JPEG) or video (3GP) for viewing on your PC. Would be the best instrument for environment protection and energy conservation. It is a good handy industrial measurement and data analyzer.

Features

2.8” TFT Color LCD display
320 * 240 pixels
Images (JPEG) & Video (3GP)
Micro-SD (max. 8GB) memory card
Air temperature and humidity
Dew-Point & Wet Bulb temperature
Simultaneously measure and display 6 channel of particle sizes
MAX, MIN, DIF, AVG record, Date/time setup controls
Auto Power Off

General Specification

Particle Measurement
Channels	0.3, 0.5, 1.0, 2.5, 5.0, 10 μm
Flow Rate	0.1ft³ (2.83L/min)
Counting Efficiency	50% at 0.3 μm, 100% for particles > 0.45 μm
Coincidence Loss	5% at 2,000,000 particles per ft³
Data Storage	5,000 sample records (Micro-SD card)
Count Modes	Cumulative, Differrential, Concentration
Temperature, Dew-point, Humidity Measurement
Temperature Range	0 to 50 °C
Temperature Accuracy	± 0.5 °C (10 to 40°), ± 1.0 °C (other)
Dew-point Temperature Range	0 to 50 °C
Dew-point Temperature Accuracy	± 0.5 °C (10 to 40°), ± 1.0 °C (other)
Relative Humidity Range	0 to 100% RH
Relative Humidity Accuracy	± 3% RH 40 to 60%, ±3.5% RH 20 to 40% & 60 to 80%, ±5% RH 0 to 20% & 80 to 100%
General SPECIFICATION
Operating / Storage Temperature	0 to 50 °C / -10 to 60 °C
Operating / Storage Humidity	10 to 90% RH non-condensing
Display	2.8" 320 x 240 color LCD with backlight
Power Requirement	Rechargeable battery (life 4 hours)
Dimension / Weight	190 x 75 x 55mm (425g)

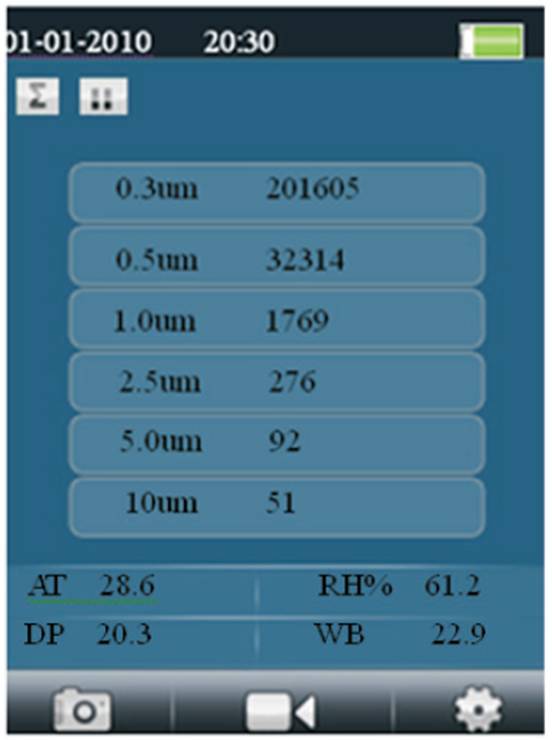

Particle Measurement Displayed

AT - Air Temperature
RH - Relative Humidity
DP - Dew Point
WB - Wet Bulb

Displayed show automatically record the measurements and you can captured Image or Video in the same time, Data is saved simultaneously with Image or Video files (According to the information shown on the picture).

For data transfer DT-9880 supports USB connected to the PC via a USB cable (Accessories included) and can be viewed without a program. Any memory readings can be recorded in Micro SD card.

Particles Knowledged

The particles are distributed in the form of dust. Which is floating in the air, dust, smoke for the source of Particles, mainly from the car exhaust. Incinerators and many other sources. Particles or dust smaller than 2.5μm, also known as "PM2.5", are smaller than human cells, these can be enter the lungs and blood stream of humans. These dusts can not be decomposed, and will accumulate in the body to harm. Especially respiratory diseases.

Actually, dust measurement is measured at PM2.5 (2.5μm) and PM10 (10μm).
(** μm = micron micron / 10,000 micron = 1 cm)

Application & Calibration Certificate

CEM DT-9880 Review

More Information

SKU	DT-9880
Weight	425.000000
Dimension	190 x 75 x 55 mm
Manufacturer	CEM
Data logger	No
Resolution	Temperature : 0.1 ºC Humidity : 0.1% RH Dew Point : 0.1 ºC
Measurement Range	Temperature : 0 to 50 ºC Humidity : 0 to 100% RH Dew Point : 0 to 50 ºC Wet Bulb
Other Function	MAX, MIN, DIF, AVG record Date/time setup controls Auto Power Off Simultaneously measure and display 6 channel of particle sizes
Power Supply	Battery AC Adapter
Water resistance	No
Sensor Output Interface	USB
Accuracy	Temperature : ± 0.5 °C (10 to 40 °C), ± 1.0 °C (others) Humidity : ± 3% RH (40 to 60%), ±3.5% RH (20 to 40% & 60 to 80%), ±5% RH (0 to 20% & 80 to 100%) Dew Point : ±0.5 °C (10 to 40°C), ±1.0 °C (others)
