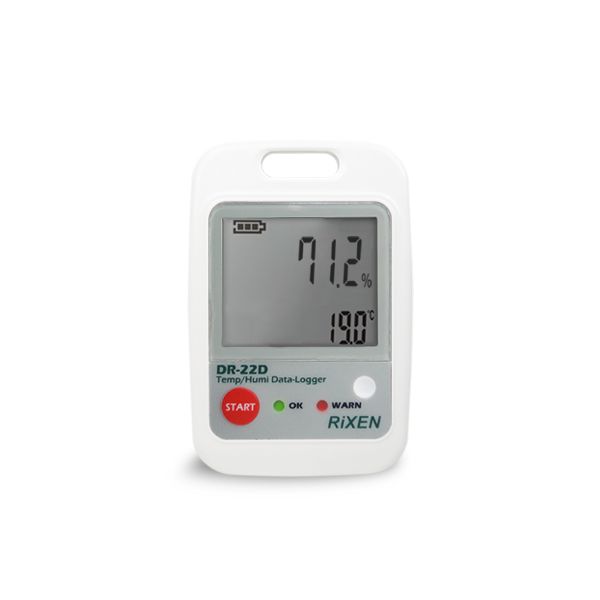

Rixen DR-22D-New Temperature | Humidity Data Logger

Temperature / Humidity Data Logger (Battery replacement)

LCD Display, LED Status information (Red & Green)

Temperature

• -40 to 85 ℃
• Resolution 0.1℃
• Accuracy ±0.5℃

Humidity

• 0 to 100%RH
• 0.1%RH
• ±3%RH

Dew Point:

• -70 to 85°C (Displayed in software)

Precision semiconductor sensor
1 second to 24 hours, selectable in softwar
Long-Life Battery 2 year (15 minute recording rate with display off)
Real-Time Recording
Multi Use & Durable
LED Status Information
Max./Min./Hi-Lo Alarm
IP65 Dust & Splash Proof, Shockproof
Memory 250,000 x 2 Data
Rixen, Taiwan

DR-20N Series Battery replacement (Option)

ขันตอนที่ 1 นำจุกยางกันน้ำออก	ขันตอนที่ 2 ใช้ไขควงไขน็อตออก	ขันตอนที่ 3 นำแบตเตอรี่ของเก่าออก แล้วใส่อันใหม่แทน

DR-20N series

Model	DR-20-New	DR-20D-New	DR-22-New	DR-22D-New
Measuring Range	-40 to 85°C		Temperature :  -40 to 85 °C Humidity: 0 to 100 %RH Dew Point: -70 to 85 °C (แสดงใน Software)
Resolution	0.1°C		Temperature: 0.1 °C Humidity: 0.1 %RH
Accuracy	±0.5°C		±0.5 °C ±3 %RH
Memory	500,000 readings		Temperature: 250,000 readings Humidity: 250,000 readings
Display
Sensor	Precision semiconductor sensor
Sample Rate	1 second to 24 hours, selectable in software
Baud Rate	57600
Battery Life	About 2 years typical (at above 0°C, 15 minute recording rate with display off and not set alarm function)
Dimensions (Weight)	80 × 53 × 16mm
Weight	54g	60g	54g	60g
Approvals	RoHS, CE, IP65
