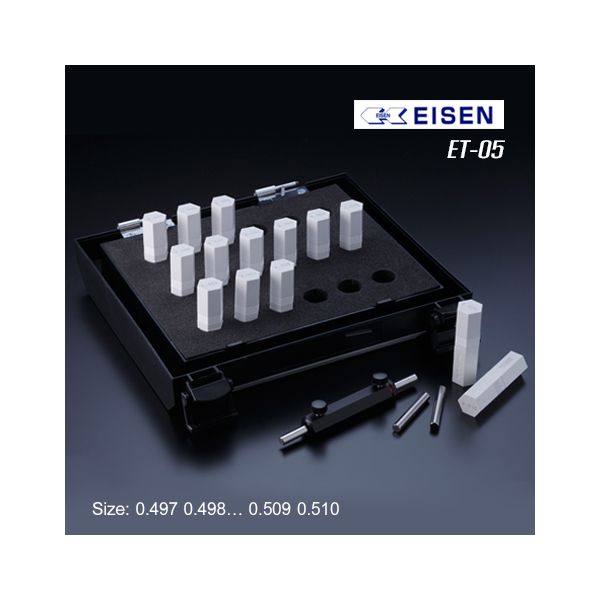

EISEN ET-05 High precision pin guges (0.497 0.498… 0.509 0.510)

SKU
ET-05
฿21,700.00
Pre-Order 30-45 days
Out of stock

EISEN ET-05 พินเกจความแม่นยำสูง High precision pin gauges

ขนาดพินเกจ 0.497 0.498… 0.509 0.510

จำหน่ายทั้งแบบแยกเดี่ยวและเป็นเซ็ท *ต้องการสั่งซื้อแบบแยกชิ้นกรุณาติดต่อฝ่ายขาย*

ยี่ห้อ EISEN, Japan

EISEN ET-05 พินเกจความแม่นยำสูง High precision pin gauges

จำหน่ายทั้งแบบแยกชิ้นและเป็นเซ็ท (1 Set : 14 pin) สำหรับการตรวจวัดความแม่นยำสูง

*ต้องการสั่งซื้อแบบแยกชิ้นกรุณาติดต่อฝ่ายขาย*



Dimensions : ขอบด้านหนึ่งจะมีมุมที่เป็นมุม 30 องศาสำหรับการแทรกได้ง่ายขึ้น

DIMENSIONS ET serie



ขนาดพินเกจ : 0.497 / 0.498 / 0.499 / 0.500 / 0.501 / 0.502 / 0.503 / 0.504 / 0.505 / 0.506 / 0.507 / 0.508 / 0.509 / 0.510 mm (14 Size : Set)

Accuracy: ±0.3μm (±0.0003 mm)

Tolerance: ±0.3μm

Roundness: 0.3μm

Cylindricity: 0.3μm

Length: 30.00 mm

ยี่ห้อ EISEN, Japan



EISEN ET Series พินเกจความแม่นยำสูง High precision pin gauges รุ่นอื่นๆ

Set No. Step (mm) Set Size(mm) Number of pins
ET-03 0.001mm 0.297 0.298… 0.309 0.310 14
ET-04 0.001mm 0.397 0.398… 0.409 0.410 14
ET-05 0.001mm 0.497 0.498… 0.509 0.510 14
ET-06 0.001mm 0.597 0.598… 0.609 0.610 14
ET-07 0.001mm 0.697 0.698… 0.709 0.710 14
ET-08 0.001mm 0.797 0.798… 0.809 0.810 14
ET-09 0.001mm 0.897 0.898… 0.909 0.910 14
ET-10 0.001mm 0.997 0.998… 1.009 1.010 14
ET-11 0.001mm 1.097 1.098… 1.109 1.110 14
ET-12 0.001mm 1.197 1.198… 1.209 1.210 14
ET-13 0.001mm 1.297 1.298… 1.309 1.310 14
ET-14 0.001mm 1.397 1.398… 1.409 1.410 14
ET-15 0.001mm 1.497 1.498… 1.509 1.510 14
ET-16 0.001mm 1.597 1.598… 1.609 1.610 14
ET-17 0.001mm 1.697 1.698… 1.709 1.710 14
ET-18 0.001mm 1.797 1.798… 1.809 1.810 14
ET-19 0.001mm 1.897 1.898… 1.909 1.910 14
ET-20 0.001mm 1.997 1.998… 2.009 2.010 14
ET-21 0.001mm 2.097 2.098… 2.109 2.110 14
ET-22 0.001mm 2.197 2.198… 2.209 2.210 14
ET-23 0.001mm 2.297 2.298… 2.309 2.310 14
ET-24 0.001mm 2.397 2.398… 2.409 2.410 14
ET-25 0.001mm 2.497 2.498… 2.509 2.510 14
ET-26 0.001mm 2.597 2.598… 2.609 2.610 14
ET-27 0.001mm 2.697 2.698… 2.709 2.710 14
ET-28 0.001mm 2.797 2.798… 2.809 2.810 14
ET-29 0.001mm 2.897 2.898… 2.909 2.910 14
ET-30 0.001mm 2.997 2.998… 3.009 3.010 14
ET-31 0.001mm 3.097 3.098… 3.109 3.110 14
ET-32 0.001mm 3.197 3.198… 3.209 3.210 14
ET-33 0.001mm 3.297 3.298… 3.309 3.310 14
ET-34 0.001mm 3.397 3.398… 3.409 3.410 14
ET-35 0.001mm 3.497 3.498… 3.509 3.510 14
ET-36 0.001mm 3.597 3.598… 3.609 3.610 14
ET-37 0.001mm 3.697 3.698… 3.709 3.710 14
ET-38 0.001mm 3.797 3.798… 3.809 3.810 14
ET-39 0.001mm 3.897 3.898… 3.909 3.910 14
ET-40 0.001mm 3.997 3.998… 4.009 4.010 14
ET-41 0.001mm 4.097 4.098… 4.109 4.110 14
ET-42 0.001mm 4.197 4.198… 4.209 4.210 14
ET-43 0.001mm 4.297 4.298… 4.309 4.310 14
ET-44 0.001mm 4.397 4.398… 4.409 4.410 14
ET-45 0.001mm 4.497 4.498… 4.509 4.510 14
ET-46 0.001mm 4.597 4.598… 4.609 4.610 14
ET-47 0.001mm 4.697 4.698… 4.709 4.710 14
ET-48 0.001mm 4.797 4.798… 4.809 4.810 14
ET-49 0.001mm 4.897 4.898… 4.909 4.910 14
ET-50 0.001mm 4.997 4.998… 5.009 5.010 14
ET-51 0.001mm 5.097 5.098… 5.109 5.110 14
ET-52 0.001mm 5.197 5.198… 5.209 5.210 14
ET-53 0.001mm 5.297 5.298… 5.309 5.310 14
ET-54 0.001mm 5.397 5.398… 5.409 5.410 14
ET-55 0.001mm 5.497 5.498… 5.509 5.510 14
ET-56 0.001mm 5.597 5.598… 5.609 5.610 14
ET-57 0.001mm 5.697 5.698… 5.709 5.710 14
ET-58 0.001mm 5.797 5.798… 5.809 5.810 14
ET-59 0.001mm 5.897 5.898… 5.909 5.910 14
ET-60 0.001mm 5.997 5.998… 6.009 6.010 14
ET-61 0.001mm 6.097 6.098… 6.109 6.110 14
ET-62 0.001mm 6.197 6.198… 6.209 6.210 14
ET-63 0.001mm 6.297 6.298… 6.309 6.310 14
ET-64 0.001mm 6.397 6.398… 6.409 6.410 14
ET-65 0.001mm 6.497 6.498… 6.509 6.510 14
ET-66 0.001mm 6.597 6.598… 6.609 6.610 14
ET-67 0.001mm 6.697 6.698… 6.709 6.710 14
ET-68 0.001mm 6.797 6.798… 6.809 6.810 14
ET-69 0.001mm 6.897 6.898… 6.909 6.910 14
ET-70 0.001mm 6.997 6.998… 7.009 7.010 14
ET-71 0.001mm 7.097 7.098… 7.109 7.110 14
ET-72 0.001mm 7.197 7.198… 7.209 7.210 14
ET-73 0.001mm 7.297 7.298… 7.309 7.310 14
ET-74 0.001mm 7.397 7.398… 7.409 7.410 14
ET-75 0.001mm 7.497 7.498… 7.509 7.510 14
ET-76 0.001mm 7.597 7.598… 7.609 7.610 14
ET-77 0.001mm 7.697 7.698… 7.709 7.710 14
ET-78 0.001mm 7.797 7.798… 7.809 7.810 14
ET-79 0.001mm 7.897 7.898… 7.909 7.910 14
ET-80 0.001mm 7.997 7.998… 8.009 8.010 14
ET-81 0.001mm 8.097 8.098… 8.109 8.110 14
ET-82 0.001mm 8.197 8.198… 8.209 8.210 14
ET-83 0.001mm 8.297 8.298… 8.309 8.310 14
ET-84 0.001mm 8.397 8.398… 8.409 8.410 14
ET-85 0.001mm 8.497 8.498… 8.509 8.510 14
ET-86 0.001mm 8.597 8.598… 8.609 8.610 14
ET-87 0.001mm 8.697 8.698… 8.709 8.710 14
ET-88 0.001mm 8.797 8.798… 8.809 8.810 14
ET-89 0.001mm 8.897 8.898… 8.909 8.910 14
ET-90 0.001mm 8.997 8.998… 9.009 9.010 14
ET-91 0.001mm 9.097 9.098… 9.109 9.110 14
ET-92 0.001mm 9.197 9.198… 9.209 9.210 14
ET-93 0.001mm 9.297 9.298… 9.309 9.310 14
ET-94 0.001mm 9.397 9.398… 9.409 9.410 14
ET-95 0.001mm 9.497 9.498… 9.509 9.510 14
ET-96 0.001mm 9.597 9.598… 9.609 9.610 14
ET-97 0.001mm 9.697 9.698… 9.709 9.710 14
ET-98 0.001mm 9.797 9.798… 9.809 9.810 14
ET-99 0.001mm 9.897 9.898… 9.909 9.910 14
ET-100 0.001mm 9.997 9.998… 10.009 10.010 14
SKUET-05
Weight0.000000
Dimension30
ManufacturerEISEN
Material Stainless Steel
