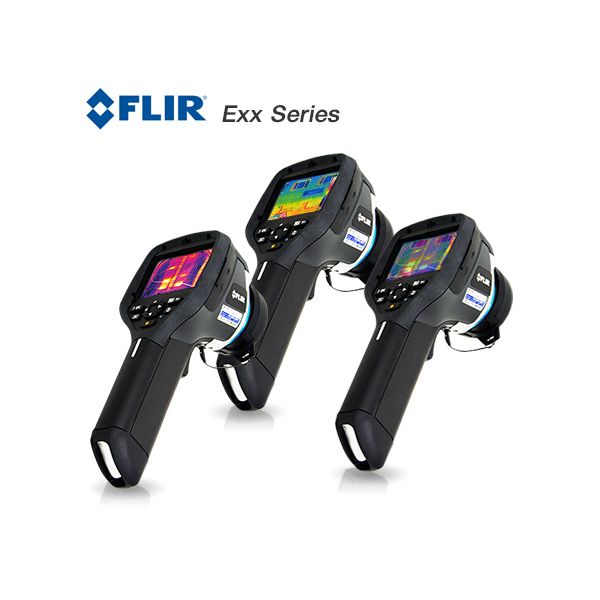

FLIR Exx Series Thermal Imaging Camera

FLIR Exx Series (Thermal Imaging Infrared Camera)

Measurment range -20 to 650℃
Accuracy ±2% or 2°C
IR Resolution 160 x 120 pixels
MSX Resolution 320 x 240
Thermal Sensitivity <0.07℃
Lens Standard 25° (Optional 15° Tele,  45° Wide)
2x Continuous Zoom
Manual Focus
Fixed Picture-in-Picture

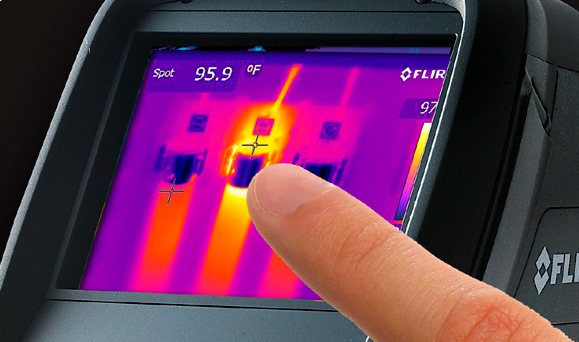

LCD 3.5" Touch Screen
Frame rate 60Hz
Battery Li-Ion ( 4 hour Battery lifetime)
Dimension 246 x 97 x 184 mm (880g)
Brand FLIR

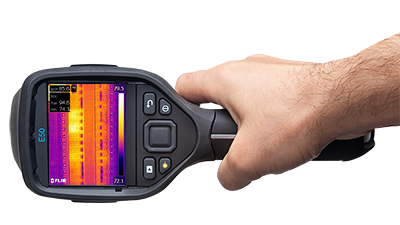

MSX® Thermal Image Enhancement  เทคโนโลยีเพื่อภาพละเอียดคมชัดยิ่งขึ้น	Auto-Orientation ปรับเปลี่ยนมุมมองหน้าจอตามการใช้งาน

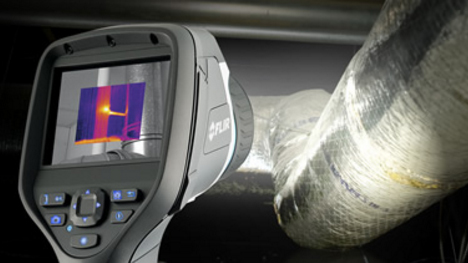

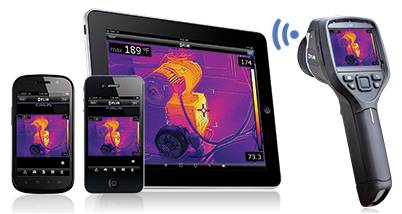

Wifi Connection to smartphone/ tablet (Apple iOs, Android)	Large 3.5" Touchscreen หน้าจอ LCD Touch Screen 3.5”	Scalable P-i-P and Thermal Fusion

FLIR Exx Series Comparison ภาพถ่ายจากกล้อง

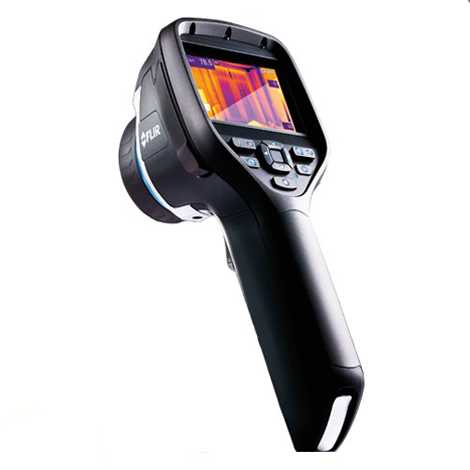

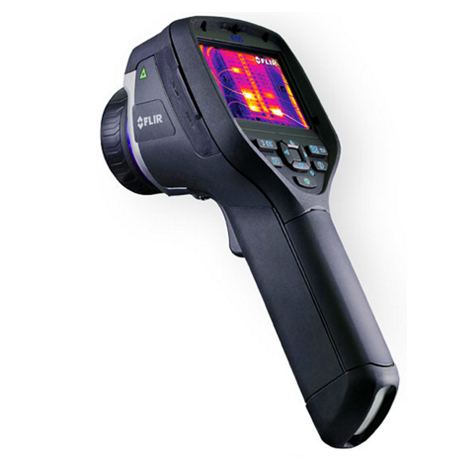

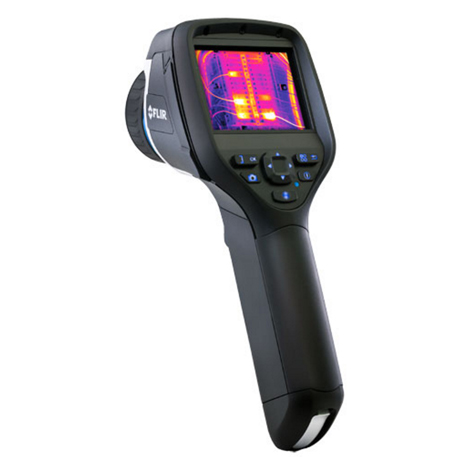

Model Number	FLIR E40	FLIR E50	FLIR E60
IR Resolution	160 × 120 pixels	240 × 180 pixels	320 × 240 pixels
MSX Resolution	320 × 240
Thermal Sensitivity	< 0.07°C	< 0.05°C
Accuracy	±2°C or ±2% of reading
Temperature Range	-20°C to 650°C
Video Camera w/Lamp	3.1 MP
Lens Options	Standard: 25°; Optional: 15° Tele, 45° Wide
Zoom	2× Continuous Digital	4× Continuous Digital
Focus	Manual
Uncooled Microbolometer	X	X	X
Color LCD Touch Screen	3.5” (320 x 240)
Multi Spectral Dynamic Imaging (MSX)	IR image with enhanced detail presentation
Picture-in-Picture	Fixed	Scalable
Fusion	N/A
Laser Spot	X	X	X
Video Out	Composite
Frame Rate	60 Hz
Analysis
Moveable Spots	3	3	3
Box Areas	3	3	3
Delta	X	X	X
Annotation
Voice	X	X	X
Text	X	X	X
File Storage
Radiometric JPG to SD Card	X	X	X
MPEG4 Video Recording	X	X	X
Other
Wi-Fi to Apple and Andriod Mobile Devices	X	X	X
MeterLink	X	X	X
Battery Type / Op Time	Li Ion, 4 hours operating time
Dual-bay Charger and Spare Battery	Optional	Included
