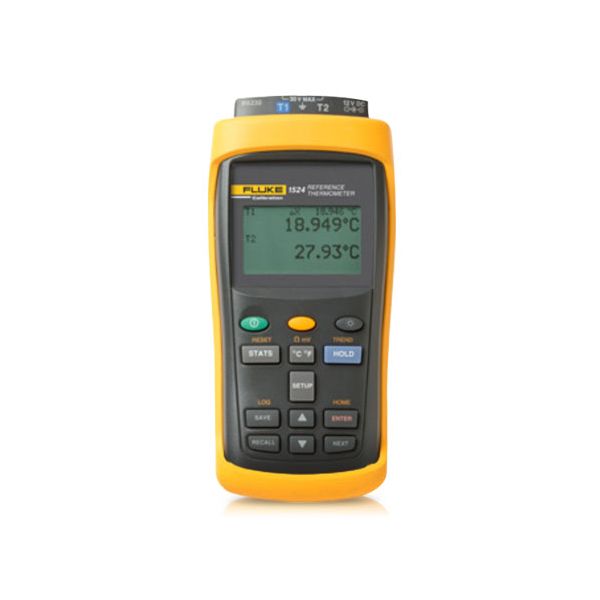

Fluke 1524 Calibration Handheld Thermometer Readout

The Fluke 1524 Thermometers from Fluke's Hart Scientific Division measure, graph, and record PRTs, Thermocouples, and thermistors. Ther thermometer readouts deliver exceptional accuracy, wide measurement range, logging, and trending, all in a handheld tool you can take anywhere.

SPECIFICATION

General Specification

Input Channels	2
Logging	15,000 time and date stamped, 25 readings with statistics
Sample Interval	1 second (normal) / 0.3 seconds (fast)
Sensor Types	PRTs, RTDs, Thermistors, & Thermocouples (Type C, E, J, K, L, M, N, T, U, B, R, S)
Millivolt Range & Accuracy	-10 to 75 mV, ± (0.005% + 5 μV)
Resistance Range & Accuracy	0 to 400 Ω, ± (0.004% + 0.002 Ω) 200 Ω to 50 kΩ, ± (0.01% + 0.5 Ω) 50 to 500 kΩ, ± (0.03%)
Excitation Current, Resistance	1 mA (0 to 400 Ω) 10 μA (0 Ω to 50 kΩ) 2 μA (50 to 500 kΩ)
Power Requirement	Battery AA x 3
Dimension / Weight	96 x 200 x 47mm / 650g

Thermocouples Range & Accuracy

Thermocouple Type	Range 1	Range 2	Range 3
B	600 to 800°C	800 to 1000°C	1000 to 1800°C
B	±0.85°C	±0.68°C	±0.57°C
C	100 to 550°C	550 to 2300°C	—
C	±0.32°C	±0.71°C	—
E	-200 to 0°C	0 to 950°C	—
E	±0.52°C	±0.22°C	—
J	-200 to 0°C	0 to 1200°C	—
J	±0.52°C	±0.23°C	—
K	-200 to 0°C	0 to 1370°C	—
K	±0.61°C	±0.24°C	—
L	-200 to 0°C	0 to 1370°C	—
L	±0.36°C	±0.23°C	—
M	-20 to 0°C	0 to 400°C	400 to 1400°C
M	±0.26°C	±0.25°C	±0.22°C
N	-200 to 0°C	0 to 1300°C	—
N	±0.72°C	±0.28°C	—
R	-20 to 0°C	0 to 500°C	500 to 1750°C
R	±1.09°C	±0.97°C°C	±0.49°C
S	-20 to 0°C	0 to 500°C	500 to 1750°C
S	±1.05°C	±0.95°C	±0.56°C
T	-200 to 0°C	0 to 400°C	—
T	±0.60°C	±0.25°C	—
U	-200 to 0°C	0 to 400°C	—
U	±0.54°C	±0.24°C	—

PRT, Thermistors Range & Accuracy

PRT		Thermistor
Range	Accuracy	Range	Accuracy
-100°C	±0.011	0°C	±0.002
0°C	±0.015	25°C	±0.003
100°C	±0.019	50°C	±0.006
200°C	±0.023	75°C	±0.014
400°C	±0.031	100°C	±0.030
600°C	±0.039	—	—

More Information

SKU	Fluke-1524
Weight	650.000000
Dimension	96 x 200 x 47mm
Manufacturer	Fluke
Measurement object	Ambient Temperature, Core Temperature, Surface Temperature, Temperature in Liquid
Sensor connector type	No
Supported sensor Type	No
Other Function	No
Power Supply	Battery AA x 3
Resolution	PRTs and Thermistors: 0.001ºC / Thermocouples: 0.01ºC
Temperature Sensor Type	RTD (Pt100, Pt1000), Thermistor, Thermocouple
Number of Channel	2 Channels
Water resistance	No
Sensor Output Interface	RS-232
Temperature Range	Depending on probe used
Data logger	No
Accuracy	Depending on probe used
