GW Instek GDM-397 Digital Multimeter

SKU
GDM-397

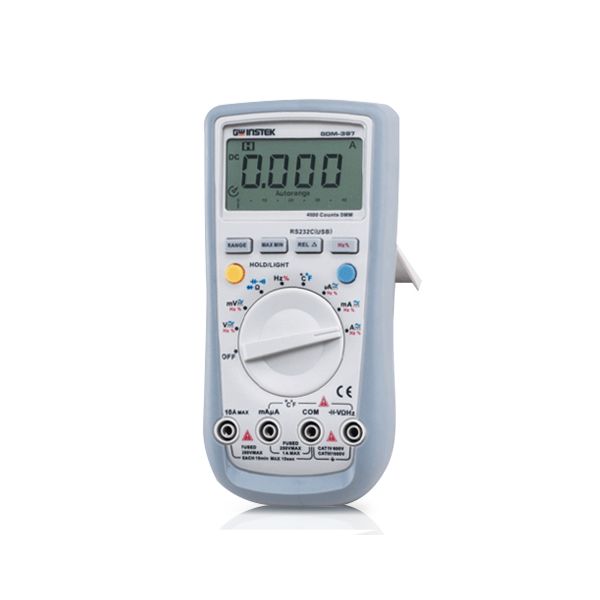

main product photo
Out of stock

Capacitance, Frequency Measurement
Continuity Beeper/Diode Test
High Energy Fuse for 10A Range
Data Hold/Relative Mode
4000 Counts Auto/Manual Ranging
RS232C

สอบถาม
Categories: Multimeters, GW Instek, Type-5 have stock
GW_Instek

GW Instek GDM-397 Digital Multimeter

GDM-357 Hand Held DMM are a compact, high precision, battery operated multimeter series designed to meet most of the daily needs for design engineers as well as service engineers.
Design is driven by mobile-oriented features, such as automatic power down to preserve battery life, a large backlight display for crisp viewing, a rotary selector switch and clear-cut push buttons to ease operation.
The basic functions match the depth of bench-top multimeters: fuse-protected.
These compact, reliable, and economical devices are ideal for any engineer.

SELECTION GUIDE
MODEL GDM-461 GDM-452 GDM-397 GDM-360 GDM-398 GDM-357 GDM-350B
Max. Display 22000 19999 4000 6000 4000 1999 1999
Auto Ranging √   √ √ √
Analog Bar √   √ √ √
True RMS √     √
Display Backlight     √ √ √
Fused 10A Range √ √ √ √ √   √
Auto Power off   √ √ √ √ √
DC Voltage 1000V 600V 1000V 1000V 1000V 600V 250V
AC Voltage 750V 600V 750V 750V 750V 600V 250V
DC Current 10A 10A 10A 10A 10A 10A 10A
AC Current 10A 10A 10A 10A 10A 10A
Resistance 220MΩ 20MΩ 40MΩ 60MΩ 40MΩ 20MΩ 20MΩ
Capacitance 220mF 20µF 4000µF 4000µF 4000µF 200µF
Frequency 220MHz 20kHz 10MHz 10MHz 10MHz
Diode √ √ √ √ √ √ √
Continuity √ √ √ √ √ √ √
Temperature     √     √ √
Duty Cycle(%) √   √ √ √
Transistor (hFE)         √   √
EF Function         √
REL √   √ √ √
Data Hold √ √ √ √ √ √ √
Peak Hold √
MAX MIN     √ √ √
RS232C √   √ √
SKUGDM-397
Weight370.000000
Dimension87(W) x 180(H) x 47(D) mm
ManufacturerGW_Instek
Data loggerNo
AccuracyDC VOLTAGE: ±(0.5%rdg + 1 digit) AC VOLTAGE: ±(1.0%rdg + 3 digits) DC CURRENT: ±(1.0%rdg + 2 digits) AC CURRENT: ±(1.2%rdg + 5 digits) RESISTANCE: ±(1.0%rdg + 2 digits) CAPACITANCE: ±(3.0%rdg + 5 digits) FREQUENCY: ±(0.1%rdg + 4 digits)
Resolution 4000 Counts Auto/Manual Ranging
Measurement RangeDC VOLTAGE: 40mV, 400mV, 4V, 40V, 400V, 1000V AC VOLTAGE: 40mV, 400mV, 4V, 40V, 400V, 750V DC CURRENT: 400µA, 4000µA, 40mA, 400mA, 4A, 10A AC CURRENT: 400µA, 4000µA, 40mA, 400mA, 4A, 10A RESISTANCE: 400Ω ~ 40MΩ 6 ranges CAPACITANCE: 40nF, 400nF, 4µF, 40µF, 400µF, 4000µF FREQUENCY: 10Hz ~ 10MHz DIODE TEST: 2.8V (Approx.)
Other Function

4000 Counts Auto/Manual Ranging
Capacitance, Frequency Measurement
Continuity Beeper/Diode Test
High Energy Fuse for 10A Range
Data Hold/Relative Mode
RS232C

Power SupplySingle 9V Battery (6F22)
Water resistanceNo
Sensor Output InterfaceNo
Your Rating

PDF Download PDF Download     Manual Download Manual Download

อุปกรณ์ที่มาในชุด:

  • User manual x1
  • Test leads
  • CD Software
  • RS-232 Cable
  • Battery
