GW Instek GDM-8342 Benchtop Dual Measurement Multimeter

SKU
GDM-8342

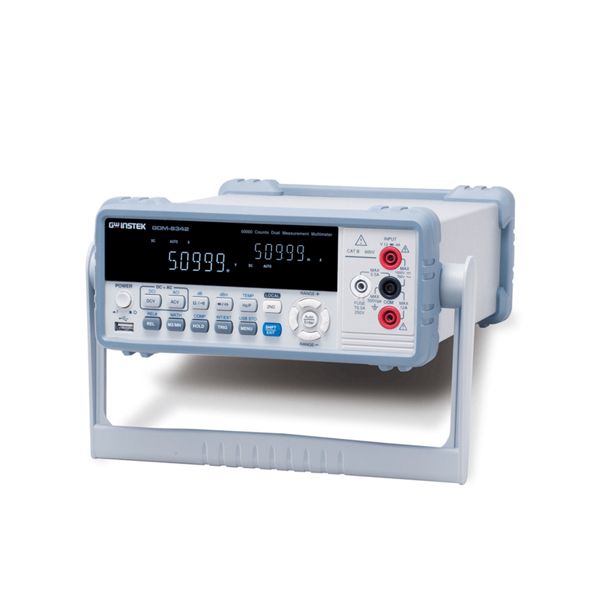

main product photo
Out of stock

50,000 counts, VFD display
Dual measurement/Dual display
Selectable measurement speeds, the maximum: 40 Readings/s for DCV
The basic precision of DC voltage: 0.02%
Auto/manual Ranging
True RMS (AC，AC+DC) measurements
11 different measurement functions Max./Min., REL, MX+B, 1/X, Ref%, Compare, Hold, dB, dBm
Standard USB device interface to connect with a computer
Temperature measurement function
USB storage for Data collection

สอบถาม
Categories: Multimeters, GW Instek
GW_Instek

GW INSTEK GDM-8342 Dual Measurement Multimeter

Its exceptional features include 50,000 counts, VFD dual-display, 0.02% basic DC voltage accuracy and a USB protocol connector to provide users with measurement precision, lucid data observation, and the convenience to connect with the personal computer.

GW INSTEK GDM-8342 not only supports the fundamental measurement items provided by general multimeters, but also equips with capacitance and temperature measurement functions. Furthermore, the GDM-834x series also provides many auxiliary functions to meet the measurement requirements for manufacturing process tests, educational experiments and testing facilities.

With respect to storing and retrieving data, GDM-8342 series has two methods to offer: first, the USB flash drive storage function --- operating alone without connecting with a computer; second, USB interface (virtual COM port) and optional GPIB interface (must be installed in factory) for automatic measurement system users to conveniently save and retrieve data.

Function Range (*2) Resolution Input Resistance
etc.		 Accuracy(*1)
1 Year 23°C±5°C
DC Voltage 500.00 mV 10μV 10MΩ or >10GΩ 0.02 + 4
5.0000 V 100μV 10MΩ or >10GΩ 0.02 + 4
50.000 V 1mV 11.11MΩ 0.02 + 4
500.00 V 10mV 10.1MΩ 0.02 + 4
1000.0 V 100mV 10MΩ 0.02 + 4
Resistance 500.00 Ω 10mΩ 0.83mA 0.10 + 5 (*3)
5.0000 kΩ 100mΩ 0.83mA 0.10 + 3 (*3)
50.000 kΩ 1Ω 83μA 0.10 + 3
500.00 kΩ 10Ω 8.3μA 0.10 + 3
5.0000 MΩ 100Ω 830nA 0.10 + 3
50.000 MΩ 1kΩ 560nA//10 MΩ 0.30 + 3
DC Current 500.00 μA 10nA 0.06V max. 0.05 + 5
5.0000 mA 100nA 0.6V max. 0.05 + 4
50.000 mA 1μA 0.14V max. 0.05 + 4
500.00 m A 10μA 1.4V max. 0.10 + 4
5.0000 A 100μA 0.5V max. 0.25 + 5
10.000 A 1mA 0.8V max. 0.25 + 5
Continuity 5000.0 Ω 100mΩ 0.83mA 0.10 + 5
Diode Test 5.0000 V 100μV 0.83mA 0.05 + 5
Capacitance 5.000 nF: 0.5~1nF 0.001nF 8.3μA 2.00 + 20
5.000 nF: 1~5nF 0.001nF 8.3μA 2.00 + 10
50.00 nF: 5~10nF 0.01nF 8.3μA 2.00 + 30
50.00 nF: 10~50nF 0.01nF 8.3μA 2.00 + 10
500.0 nF 0.1nF 83μA 2.00 + 4
5.000 μF 1nF 0.56mA 2.00 + 4
50.00 μF 10nF 0.83mA 2.00 + 4
True RMS Volatge
AC (or AC+DC) (*4/*5/*6)		 500.00 mV 10μV 30Hz – 50Hz 1.00 + 40
50Hz – 10kHz 0.50 + 40
10kHz – 30kHz 2.00 + 60
30kHz – 100kHz 3.00 + 120
5.0000 V 100μV 30Hz – 50Hz 1.00 + 20
50Hz – 10kHz 0.35 + 15
10kHz – 30kHz 1.00 + 20
30kHz – 100kHz 3.00 + 50
50.000 V 1mV 30Hz – 50Hz 1.00 + 20
50Hz – 10kHz 0.35 + 15
10kHz – 30kHz 1.00 + 20
30kHz – 100kHz 3.00 + 50
500.00 V 10mV 30Hz – 50Hz ------
50Hz – 10kHz 0.50 + 15
10kHz – 30kHz 1.00 + 20
30kHz – 100kHz 3.00 + 50
750.0 V 100mV 30Hz – 50Hz ------
50Hz – 10kHz 0.50 + 15
10kHz – 30kHz ------
30kHz – 100kHz ------
True RMS Current
AC (or AC+DC)(*4/*5/*6)		 500.00 μA 10nA 30Hz – 50Hz 1.50 + 50
50Hz – 2kHz 0.50 + 40
2kHz – 5kHz 1.50 + 50
5kHz – 20kHz 3.00 + 75
5.0000 mA 100nA 30Hz – 50Hz 1.50 + 40
50Hz – 2kHz 0.50 + 20
2kHz – 5kHz 1.50 + 40
5kHz – 20kHz 3.00 + 60
50.000 mA 1μA 30Hz – 50Hz 1.50 + 40
50Hz – 2kHz 0.50 + 20
2kHz – 5kHz 1.50 + 40
5kHz – 20kHz 3.00 + 60
500.00 mA 10μA 30Hz – 50Hz 1.50 + 40
50Hz – 2kHz 0.50 + 20
2kHz – 5kHz 1.50 + 40
5kHz – 20kHz 3.00 + 60
5.0000 A 100μA 30Hz – 50Hz 2.00 + 40
50Hz – 2kHz 0.50 + 30
10.000 A 1mA 30Hz – 50Hz 2.00 + 40
50Hz – 2kHz 0.50 + 30
Frequency 10Hz – 500Hz ------ ------ 0.01 + 5
500Hz – 500kHz 0.01 + 3
500kHz – 1MHz 0.01 + 5
Temperature (*7)
(Thermocouple)		 -200 °C ~ +300 °C 0.1 °C J / T / K 2 °C (typical)
Display VFD, Tow Colors Display
Interface USB Device, USB Host (for GDM-8342 only), GPIB (optional for GDM-8342 only)
Power Source AC 100 V / 120 V / 220 V / 240 V ±10%, 50-60Hz
Power Consumption Max. 15VA
Dimensions 265(W) x 107(H) x 302(D) mm
Weight Approx. 2.9kg without option
1. Accuracy = +/- (% of reading + digits)
2. 2% overrange on all ranges, except 10A is 20% overrange
3. REL function is on
4. The AC+DC is in AC coupled
5. The accuracy of AC+DC is equal to AC with 10 more digits added
6. AC characteristics are for sinewave input > 5% of range
7. Specifications do not include probe accuracy
SKUGDM-8342
Weight2900.000000
Dimension265(W) x 107(H) x 302(D) mm
ManufacturerGW_Instek
Data loggerYes
Accuracy±(% of reading + digits)
Resolution 50,000 counts
Measurement RangeDC Voltage: 500.00 mV to 1000.0 V Resistance: 500.00 Ω to 50.000 MΩ DC Current: 500.00 μA to 10.000 A Capacitance: 5.000 nF: 0.5~1nF to 50.00 μF AC Voltage: 500.00 mV to 750.0 V AC Current: 500.00 μA to 10.000 A Frequency: 10Hz to 1MHz Temperature (Thermocouple) : -200 °C ~ +300 °C
Other Function

Max./Min., REL, MX+B, 1/X, Ref%, Compare, Hold, dB, dBm

Power SupplyAC 100 V / 120 V / 220 V / 240 V ±10%, 50-60Hz
Water resistanceNo
Sensor Output InterfaceNo
Your Rating

PDF Download PDF Download     Manual Download Manual Download

Safety Instruction Sheet x 1
Power cord x 1
Test lead GTL-207 x 1
CD x 1 (including complete user manual, USB driver and PC software)
