GW Instek GDS-2204E Digital Oscilloscope

SKU
GDS-2204E

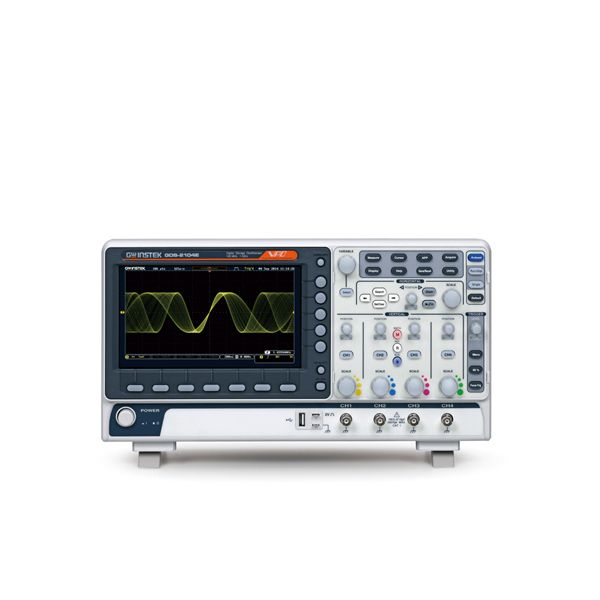

main product photo
Out of stock

200 MHz Bandwidth with 4 Channels
1GSa/s Maximum Real-Time Sampling Rate
Standard 10M Maximum Memory Depth and VPO Waveform Display Technology
Waveform Update Rate of 120,000 wfm/s
8 ” WVGA TFT LCD Display
29,000 Sections of Segmented Memory and Waveform Search Functions
Provide Remote Internet Storage Function
Data Logger

สอบถาม
Categories: Oscilloscopes, GW Instek, Type-5 have stock
GW_Instek

GW Instek GDS-2204E Digital Oscilloscope

200MHz digital storage oscilloscopes with The 8-inch 800*480 TFT LCD display.
With respect to the memory depth, the GDS-2204E digital oscilloscope provides 10M long memory for users to completely retrieve and analyze waveforms.
Users, based upon the application requirements, can select 1K, 10K, 100K, 1M or 10M memory depth.
Short memory depth collocating with the high sampling rate allows users to observe fast-changing waveforms and, on the other hand, long memory depth aims for continuously changing waveforms.
The GDS-2204E is equipped with waveform search and segmented memory functions to expand the flexible applications of 10M long memory.
The segmented memory can be divided the maximum into 29,000 sections for users to bypass any unimportant waveforms so as to swiftly search all required waveforms.
With the function, more meaningful waveforms can be saved and target waveforms can be displayed rapidly.
With the waveform search function, users can rapidly search desired waveforms according to the required trigger conditions.

Specifications
Channels 4ch
Bandwidth DC~200MHz (-3dB)
Rise time 1.75ns
Bandwidth Limit 20M/100MHz
Vertical Sensitivity
Resolution 8 bit
:1mV~10V/div
Input Coupling AC, DC, GND
Input Impedance 1MΩ// 16pF approx.
DC Gain Accuracy ±(3%)when 2mV/div or greater is selected
±(5%)when 1mV/div is selected;
Polarity Normal & Invert
Maximum Input Voltage 300Vrms, CAT I
Offset Position Range 1mV/div ~ 20mV/div : ±0.5V
50mV/div ~ 200mV/div : ±5V
500mV/div ~ 2V/div : ±25V
5V~10V/div : ±250V
BASIC ACCURACY
Waveform Signal Process +, -, ×, ÷, FFT, FFTrms ,User Defined Expression.
FFT:1Mpts
FFT: Spectral magnitude. Set FFT Vertical Scale to Linear RMS or dBV RMS
FFT Window : Rectangular, Hamming , Hanning, Blackman-Harris
Trigger
Source CH1 ,CH2, CH3, CH4, Line, EXT (EXT only on dual channel models )
Trigger Mode Auto (supports Roll Mode for 100 ms/div and slower), Normal, Single Sequence
Trigger Type Edge, Pulse Width(Glitch), Video, Pulse Runt, Rise & Fall(Slope), Alternate, time out, Event-Delay (~65535 events), Time-Delay (Duration,4nS~10S), Bus
Hold-off range 4ns~10s
Coupling AC,DC,LF rej. ,HF rej. ,Noise rej.
Sensitivity 1div
Horizontal
Time base Range 1ns/div ~ 100s/div (1-2-5 increments)
ROLL: 100ms/div ~ 100s/div
Pre-trigger 10 div maximum
Post-trigger 2,000,000 div maximum.
Time base Accuracy ±50 ppm over any ≥ 1 ms time interval
Real Time Sample Rate Max.:1GSa/s
Per channel 1GSa/s
Record Length Max:10Mpts
Acquisition Mode Normal, Average, Peak Detect, Single
Peak Detection 2ns (typical)
Average selectable from 2 to 256
X-Y Mode
X-Axis Input Channel 1; Channel 3
Y-Axis Input Channel 2; Channel 4
Phase Shift ±3° at 100kHz
Cursors and Measurement
Cursors Amplitude, Time, Gating available Unit: Seconds(s),Hz(1/s) ,Phase(degree) ,Ration(%)
Automatic Measurement 36 sets: Pk-Pk, Max, Min, Amplitude, High, Low, Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, ROV Shoot, FOV Shoot, RPRE Shoot, FPRE Shoot, Frequency, Period, Rise Time, Fall Time, +Width, -Width, Duty Cycle, +Pulses, -Pulses, +Edges, -Edges, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Phase ,Cursor measurements
Control Panel Function
Auto counter 6 digits, range from 2Hz minimum to the rated bandwidth
Autoset Single-button, automatic setup of all channels for vertical, horizontal and trigger systems, with undo Autoset
Save Setup 20set
Save Waveform 24set
Display
TFT LCD Type 8" TFT LCD WVGA color display
Display Resolution 800 horizontal × 480 vertical pixels (WVGA)
Interpolation Sin(x)/x
Waveform Display Dots, vectors, variable persistence (16ms~4s), infinite persistence
Waveform Update Rate 120,000 waveforms per second, maximum
Display Graticule 8 x 10 divisions
Display mode YT ;XY
Interface
USB Port USB 2.0 High-speed host port X1, USB High-speed 2.0 device port X1
Ethernet(LAN) Port RJ-45 connector, 10/100Mbps with HP Auto-MDIX
Go-NoGo BNC 5V Max/10mA TTL open collector output
Kensington Style Lock Rear-panel security slot connects to standard Kensington-style lock.
Miscellaneous
Multi-language menu Available
operation environment Temperature: 0°C to 50°C. Relative Humidity ≤ 80% at 40°C or below; ≤ 45% at 41°C ~ 50°C.
On-line help Available
Time clock Time and Date ,Provide the Date/Time for saved data
Dimensions 384mmX208mmX127.3mm
Weight 2.8kg
SKUGDS-2204E
Weight2800.000000
Dimension384 x 208 x 127.3 mm
ManufacturerGW_Instek
Data loggerYes
Resolution 8-bit
Measurement RangeTime Base Range 1ns/div ~ 100s/div
Other Function
  • 200 MHz Bandwidth with 4 Channels
  • 1GSa/s Real-Time Sample Rates
  • Standard 10M Maximum Memory Depth and VPO Waveform Display Technology
  • Waveform Update Rate of 120,000 wfm/s
  • 8 ” WVGA TFT LCD Display
  • FFT with Maximum 1M points to Provide Higher Frequency Domain Resolution Measurement
  • High and Low Pass Digital Filter Functions
  • 29,000 Sections of Segmented Memory and Waveform Search Functions
  • I2C/SPI/UART/CAN/LIN Serial Bus Trigger and Decoding Function
  • Data Log Function Tracks Signal Changes Up To 100 hours
  • Provide Remote Internet Storage Function
Power SupplyAC 100V ~ 240V
Water resistanceNo
Sensor Output InterfaceNo
Accuracy±(3%)when 2mV/div or greater is selected ±(5%)when 1mV/div is selected
Your Rating

PDF Download PDF Download     Manual Download Manual Download

Accessories Include

  • Quick Start Guide x1
  • User Manual CD x1
  • Power Code x1
  • GTP-200B-4 : 200MHz (10:1/1:1) Switchable passive probe (one per channel)

Optional Accessories

  • GRA-426 Rack Adapter Panel
  • GAK-003 50 ohm Impedance Adapter
  • GSC-008 Soft Carrying Case
  • GTL-246 USB Cable, USB 2.0, A-B Type, 1200mm
  • GTL-110 Test Lead, BNC-BNC Heads
  • GDB-03 Oscilloscope Education & Training Kit
  • GCP-005 Current Probe, 40Hz ~ 1kHz, 5A, Current Probe
  • GCP-020 Current Probe, DC ~ 100KHz, 10A, Current Probe
  • GCP-100 Current Probe, 40Hz ~ 10KHz, 20A, Current Probe
  • GCP-1030 Current Probe, DC ~ 100MHz, 30Arms, Current probe
  • GCP-206P Current Probe - Power Supply, 2 Channel Power Supply for GCP-530/1030
  • GCP-245P Current Probe - Power Supply, 4 Channel Power Supply for GCP-530/1030
  • GCP-530 Current Probe, DC ~ 50MHz, 30Arms, Current Probe
  • GDP-025 Differential Probe, 25M High Voltage Differntial Probe
  • GDP-050 Differential Probe, 50M High Voltage Differntial Probe
  • GDP-100 Differential Probe, 100M High Voltage Differntial Probe
  • GTP-033A Oscilloscope Probe, 35MHz 1:1 Passive Probe, BNC(P/M)
