GW Instek GPS-2303 DC Power Supply

SKU
GPS-2303

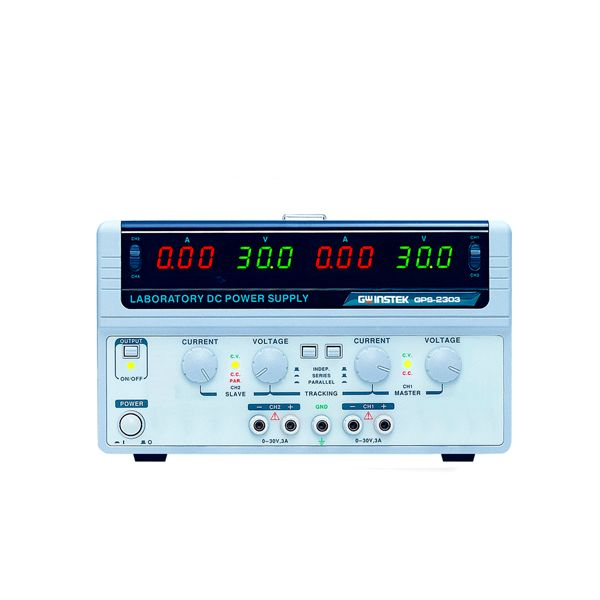

main product photo
Out of stock

4 Independent Isolated Output
Four "3 Digits" LED Displays
0.01% Load and Line Regulation
Low Ripple and Noise
Tracking Operation and Auto Series/Parallel Operation
Output ON/OFF Switch
Output Voltage and Current Setting When Output Disable
Fan Speed Control Circuit to Minimize Fan Noise
Over Load and Reverse Polarity Protection

สอบถาม
Categories: DC Power Supplies | DC signal source , GW Instek, Type-5 have stock
GW_Instek

GW Instek GPS-2303 DC Power Supply

4 channel, 180 to 200W output, linear DC power supplies.
Overload and reverse polarity protection, and an output on/off switch keep the GPS-Series and their load safe from unexpected conditions.
A High regulation (0.01%+3mV) and low ripple/noise (< 1mVrms, 5Hz~1MHz) are maintained for channel 1 and 2 in constant voltage mode.
Automated cooling fan speed control minimizes fan noise according to load conditions, ensuring quiet operation.

DC OUTPUT
Voltage 0~30V
Current 0~3A
Tracking Series Voltage 0~60V
Tracking Parallel Current 0~6V
CONSTANT VOLTAGE OPERATION (CH1, CH2)
Line Regulation ≦0.01% + 3mV
Load Regulation ≦0.01% + 3mV (rating current≦3A)
≦0.02% + 5mV (rating current >3A)
Ripple & Noise ≦1mVrms 5Hz ~ 1MHz
Recovery Time ≦100μS ( 50% Load change, Minimum load 0.5A )
CONSTANT CURRENT OPERATION (CH1, CH2)
Line Regulation ≦0.2% + 3mA
Load Regulation ≦0.2% + 3mA
Ripple Current ≦3mArms
TRACKING OPERATION (CH1, CH2)
Tracking Error ≦0.5% + 10mV of CH1
Series Regulation ≦0.01% + 5mV
Load Regulation ≦300mV
Ripple & Noise ≦2mVrms, 5Hz ~ 1MHz
METER
Digital 3 Digits 0.5" LED Display
Accuracy ± (0.5% of rdg + 2 digits)
INSULATION
Chassis and Terminal ≧DC 500V / 20MΩ
Chassis and AC Cord ≧DC 500V / 30MΩ
POWER SOURCE
  AC 100V/120V/220V ±10%, 230V(+10% ~ -6%), 50/60Hz
SKUGPS-2303
Weight7000.000000
Dimension255(W) x 145(H) x 265(D)mm
ManufacturerGW_Instek
