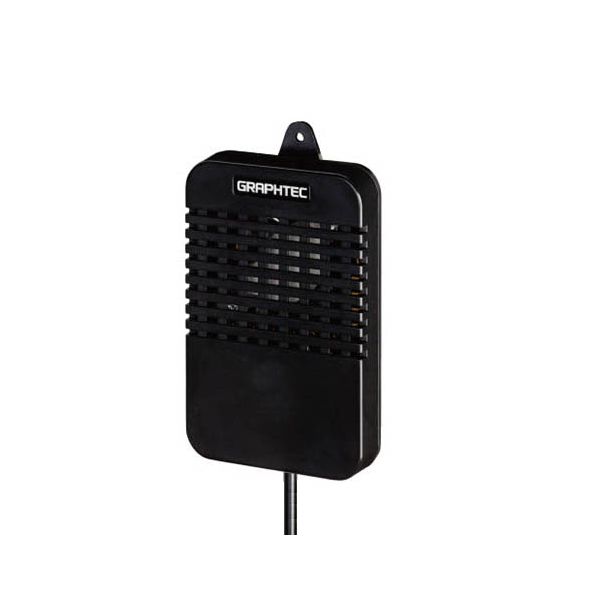

GS-CO2 Carbon dioxide (CO2) sensor

เซนเซอร์สำหรับวัด CO2
Carbon dioxide concentration
NDIR (Non Dispersive Infra-red)
สำหรับใช้กับเครื่อง Graphtec GL100-N

CO2
ช่วงการวัด 0 to 9999ppm
Accuracy ±0.5 % of reading + 30 ppm (in range of 0 to 5000 ppm)

Response 3 minutes or less
Sampling interval 0.5, 1, 2, 5, 10, 20, 30sec, 1, 2, 5, 10, 20, 30, 60min
สายยาว 200mm
ขนาด 66 x 100 x 25mm (99g)
ยี่ห้อ Graphtec, Japan

Sensors / Input Terminal / Adapter for GL100-N Series

Model	Sensors				Input Terminal / Adapter
	GS-TH	GS-3AT	GS-CO2	GS-LXUV	GS-4VT	GS-4TSR	GS-DPA-AC
Function	• Temperature • Humidity	• Acceleration • Temperature	• Carbon dioxide   (CO2)	• Illuminance • UV	• Voltage • Temperature • Logic • Pulse	• Thermistor  • Logic • Pulse	• AC current   sensor
Range	-20 to 85℃, 0 to 100%RH	Max. 10 G, -10 to 50℃	0 to 9999 ppm	0 lx to 200 k lx, 0 to 30 mW/cm2	Max. 50V, -200 to 1370°C	-40 to 120℃	50, 100, 200 A RMS (varies by the sensor)
Length of cable	60mm	200mm	200mm	200mm	200mm	200mm	200mm
Dimensions	15 x 45 x 10mm	51 x 36 x 20mm	66 x 100 x 25mm	46 x 66 x 19mm	46 x 66 x 36mm	46 x 66 x 36mm	46 x 66 x 27mm
