GW Instek SFG-1000 Series 3MHz DDS Function Generator
DDS Technique and FPGA Chip Design
Frequency Range:0.1Hz~3MHz
High Frequency Accuracy : ± 20ppm
High Frequency Stability : ± 20ppm
Max. Frequency Resolution : 100mHz
Low Distortion Sine Wave : -55dBc,0.1Hz~200kHz
Voltage Display

Product Name Qty
GW Instek SFG-1003 3MHz DDS Function Generator Pre-Order Item
GW Instek SFG-1013 3MHz DDS Function Generator
฿10,410.00
Pre-Order Item
Add to Compare

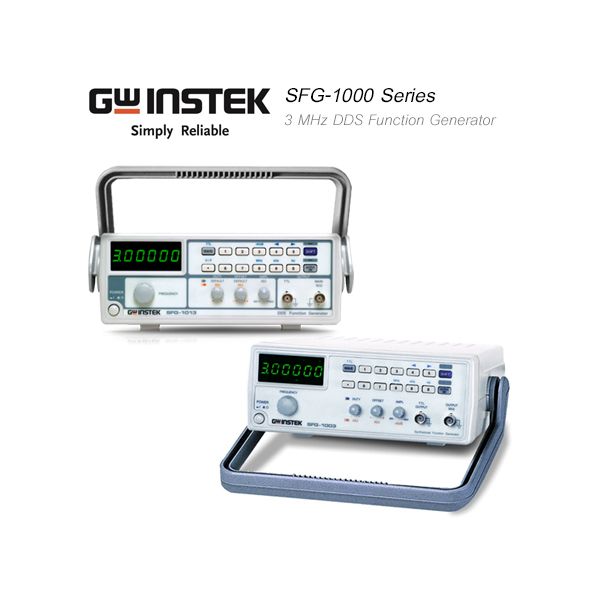

GW Instek SFG-1000 Series 3MHz DDS Function Generator

SFG-1000 Series An economic function generator with high accuracy and high stability output, are designed based on the DDS (Direct Digital Synthesized) technology embedded in a large scale FPGA.

The 3MHz frequency range and the output waveform selection of Sine, Square, Triangle and TTL available in the SFG-1000 Series adequately provide the fundamental functions to ensure high confidence in test results.
The DDS technology at an affordable price gives a high value solution to the users who need a signal source for accurate but simple measurement applications.

Model Frequency Offset TTL Output -40dB Attention Voltage display

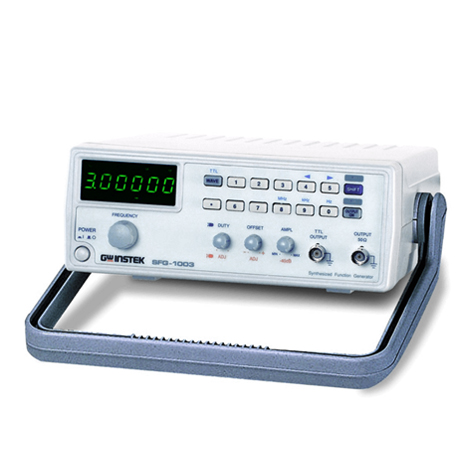

GW Instek SFG-1003 เครื่องกำเนิดสัญญาณ 3MHz
SFG-1003



3 MHz






✔



-

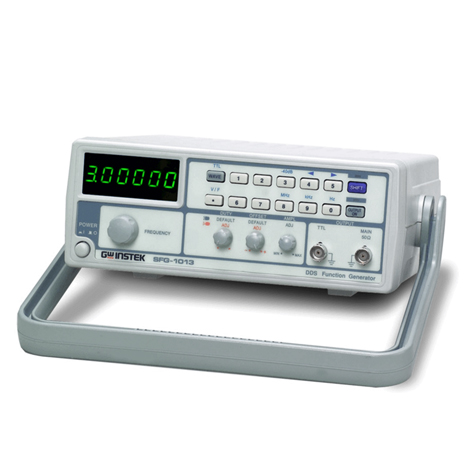

GW Instek SFG-1013 เครื่องกำเนิดสัญญาณ 3MHz
SFG-1013



3 MHz









MAIN
Output Function Sine, Square, Triangle, TTL
Frequency Range(For Sine, Square) 0.1Hz ~ 3MHz
Frequency Resolution 0.1Hz ~ 1MHz
Frequency Stability 0.1Hz maximum
Frequency Accuracy / Aging ±20ppm
Amplitude Range ±5ppm/year
Amplitude Accuracy 10Vp-p (into 50Ω load)
Impedance ±20% at maximum position
Attenuator 50Ω±10%
DC Offset -40dB±1dB×1
Duty Control Range <-5V ~ >5V (into 50Ω load)
Display 25% ~ 75% below 1MHz (for square wave only)
Output Control 6-digit LED display
ON/OFF selector
SINE WAVE
Harmonics Distortion Maximum Amplitude attenuation to 1/10 of any panel settings, TTL OFF
≧-55dBc, 0.1Hz ~ 200kHz
Flatness
(at maximum amplitude
relative to 1kHz)
≧-40dBc, 0.2MHz ~ 2MHz
≧-35dBc, 2MHz ~ 3MHz
<±0.3dB, 0.1Hz ~ 1MHz
<±0.5dB, 1MHz ~ 2MHz
<±1dB, 2MHz ~ 3MHz
TRIANGLE WAVE
Linear ≧98%, 0.1Hz ~ 100kHz ; ≧95%, 100kHz ~ 1MHz
SQUARE WAVE
Symmetry 5% of period+4ns, 0.1Hz ~ 100kHz
Rise or Fall Time ≦100ns at maximum output (into 50Ωload)
TTL OUTPUT
Level ≧3Vp-p
Fan Out 20 TTL load
Rise or Fall Time ≦25ns
GENERAL
Operation Environment Indoor use, altitude <2000m
Ambient Temperature : 0°C ~ 40°C
Relative Humidity: <80% at 0°C ~ 40°C
Up to 70% at 35°C ~ 40°C
Installation category II
Pollution Degree 2
POWER SOURCE
  AC 100V/120V/220V/240V±10%, 50/60Hz
STORAGE CONDITION
Temperature -10°C ~ 70°C
Humidity 70% (Maximum).
