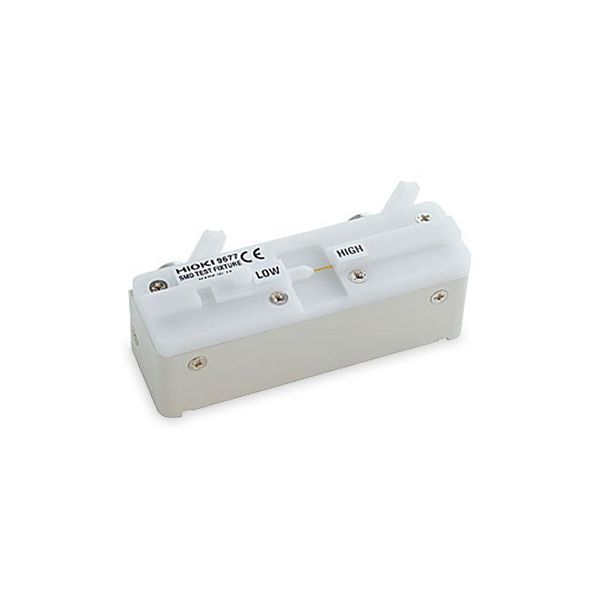

Hioki 9677 SMD Test Fixture

SKU

HIOKI-9677

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Out of stock

Direct connection type
Frequency DC to 120 MHz
Maximum apply voltage ±40 VDC
ยี่ห้อ Hioki, Japan

สินค้าลงทะเบียนโปรดติดต่อฝ่ายขาย

Details

Hioki 9677 SMD Test Fixture

Direct connection type
For measuring SMDs with electrodes on the side
Frequency DC to 120 MHz
Maximum apply voltage ±40 VDC
Test sample dimensions 3.5 mm ±0.5 mm
Short-circuited 200 mΩ max. (at 100 Hz)
Floating capacitance between terminals 2 pF max. (at 5 MHz)
ขนาดตัวเครื่อง 103 x 48 x 37mm (135g)
ยี่ห้อ Hioki, Japan

More Information
