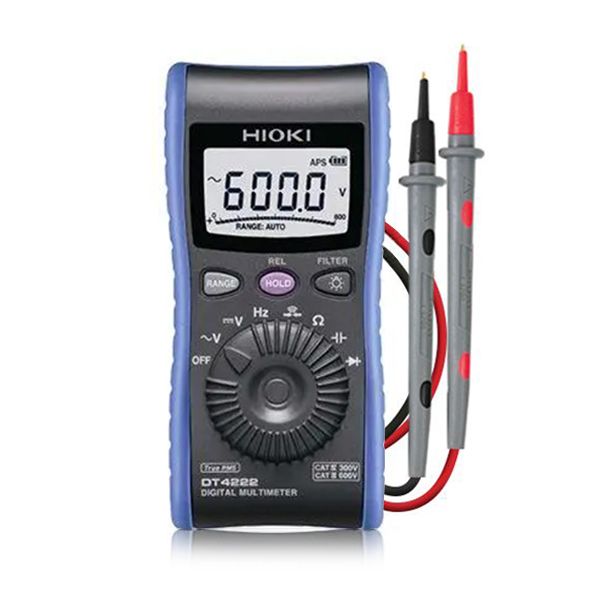

Hioki-DT4222 Digital multimeter

SKU
DT4222
main product photo
฿3,980.00
In stock

Multimeter for Electrical work in the field
Featuring a compact body for ergonomic hold
and delivering maximum field safety is voltage measurement.

Add to Compare
Categories: Hioki, Hioki Digital Multimeters
Hioki

Hioki-DT4222 มัลติมิเตอร์

The Hioki DT4200 Digital Multimeter Series consist of a complete lineup of 9 models ranging from professional to industrial to pocket meters, delivering a super fast response rate and safety features that take electrical testing to a higher level. The DT4222 is a pocket-sized digital multimeter designed specifically for general purpose testing, with ±0.5% DC V accuracy and wide 40 Hz to 1 kHz AC V bandwidth.

  • Test Lead DT4911 ×1
  • Holster ×1
  • Instruction manual ×1
  • LR03 alkaline battery ×1

Feature DT4200 Series

DT-4200 series DT-4200 series DT-4200 series DT-4200 series
Compact and safety-designed digital multimeter for voltage measurement Compact and lightweight design for outstanding ease of use Use Single AAA alkaline battery only Rear probe connections for superior screen visibility and easy storage
DT-4200 series DT-4200 series DT-4200 series DT-4200 series

Measure output voltage on the secondary sides of inverters by eliminating harmonic components

 True RMS measurement for accurate measurement of even distorted current waveforms Designed and manufactured in Japan to ensure high quality and guaranteed with a 3-year warranty for peace of mind Safe measurement requires use of an instrument that suits the measurement location.



วิดีโอสาธิตการใช้งาน Digital Multimeters DT4200 Series





SKUDT4222
Weight190.000000
Dimension72 x 149 x 38 mm
ManufacturerHioki
Data loggerNo
Accuracy

DC Voltage : ±0.5 % rdg. ±5 dgt.
AC Voltage 40 to 500 Hz : ±1.0 % rdg. ±3 dgt.
Resistance : ±0.9 % rdg. ±5 dgt.
Capacitance : ±1.9 % rdg. ±5 dgt.
Frequency : ±0.1 % rdg. ±2 dgt.
Continuity Check : ±1.0 %rdg. ±5 dgt.

Resolution No
Measurement Range

DC Voltage : 600.0 mV to 600.0 V
AC Voltage 40 to 500 Hz : 6.000 V to 600.0 V
[Crest factor : 3 up to 4000 counts and reduces linearly to 2 at 6000 counts]
Resistance : 600.0 Ω to 60.00 MΩ
Capacitance : 1.000 μF to 10.00 mF
Frequency : 99.99 Hz to 9.999 kHz
Continuity Check : 600.0 Ω
[ON : Approx. 250 Ω , OFF : Approx. 245Ω]
Diode test : 1.500 V

Other FunctionNo
Power SupplyLR03 alkaline battery ×4
Water resistanceNo
Sensor Output InterfaceNo
Your Rating
PDF Download PDF Download
PDF Download Compare Download

วิดีโอสาธิตการใช้งาน Digital Multimeters DT4200 Series

Included Accessories :

  • Test Lead DT4911 ×1
  • Holster ×1
  • Instruction manual ×1
  • LR03 alkaline battery ×1

อุปกรณ์เสริม (แยกจำหน่าย)

  • Test Lead
    L9207-10/ DT4911, L9206, 70V DC/ 33V AC
  • Attaches to the tip of the
    L4932, L9207-10/DT4911, L9206, CAT III 300V,
    CAT II 600V
  • CARRYING CASE C0200
  • MAGNETIC STRAP Z5004
