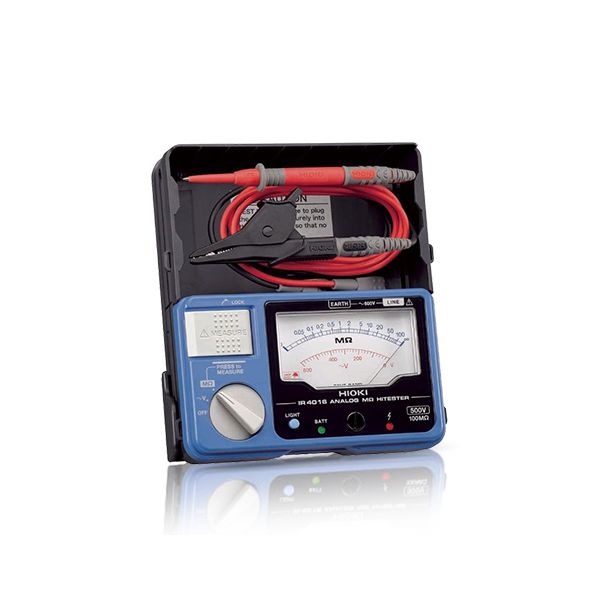

Hioki-IR4016-20 Analog Insulation Resistance Testers

Single range testing voltage of 500 V
Test insulation resistance up to 100 MΩ
Built tough to withstand a 1-meter drop onto a concrete floor
Bright LED luminous scale
Check for live circuits and battery status
Integrated hard case for quick and easy storage without disconnecting the leads
Rated output voltage : 500 V DC
Effective maximum indicated value : 100 MΩ
Accuracy 1st effective measuring range : ±5 % of indicated value 0.1 to 50 MΩ
Lower limit resistance : 0.5 MΩ (measurement resistance value to maintain testing voltage)
AC voltage measurement : 0 to 600 V (50/60 Hz), ±5 % of maximum scale value accuracy, 500 kΩ or more input resistance
Power supply : LR6 (AA) alkaline batteries ×4, Continuous use: 20 hours (no load)
Dimensions : 159 × 177 × 53 mm (610 g) (including battery, excluding test lead)
