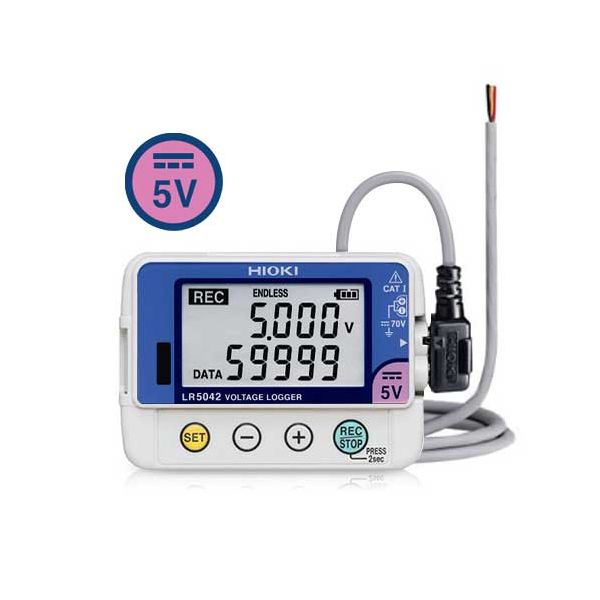

Hioki-LR5042 Voltage Data Logger

Easily mount the light-weight , pocket-sized loggers in tight spaces

Easy-to-see dual display

Transfer data to PC even during recording

Replace batteries while recording (30 second limit)

3 times the memory capacity than predecessor (Record 60,000 data per channel)

Record without missing fluctuations in STAT mode

Measurement data is preserved even after the battery dies

Worry-free backup preserves recorded data even if a new measurement is started by mistake

Measurement range : -5.000 to 5.000 V

Accuracy : ±0.5 %rdg. ±5 dgt.

Power supply : LR6 (AA) Alkaline battery ×1, Battery life: Approx. 2 years (Instantaneous recording, with 1-minute interval and auto power saving, at 20 °C), Approx. 2 months (Instantaneous recording, with 1-second interval at 20 °C)

Dimensions : 79 × 57 × 28 mm (105 g)

Included Accessories : LR6 (AA) Alkaline battery (built-in internal) ×1, Connection cable LR9802 ×1, Instruction manual ×1, Operation guide ×1, Kickstand ×1
