HIOKI LR5051 Clamp Logger (2ch)

SKU
LR5051

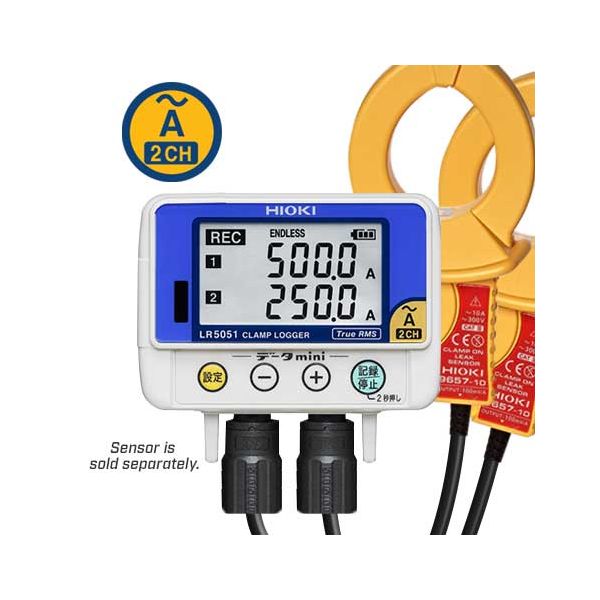

main product photo
฿12,000.00
Pre-Order Item
Out of stock

2-channel Current Data Logger to Easily
Record Load Current of 50/60Hz Lines and Leak Current
Hioki, Japan
**Clamp sensor is sold separately**

Add to Compare
Categories: Clamp Meters, Hioki, Hioki Clamp Meters, Compact Data Loggers, Temperature Data Loggers
Hioki

Hioki LR5051 Clamp Logger เครื่องบันทึกแคล์มมิเตอร์ AC (2ch)

Easily Record Load Current of 50Hz/60Hz Lines and Leak Current

Hioki compact 1 or 2-channel data loggers feature a 60,000 data set/channel memory to measure temperature, humidity, voltage or instrumentation signals. The LR5051 logs current over 2 channels in as fast as 1 second intervals.

Key Features

  • Easily mount the light-weight , pocket-sized loggers in tight spaces
  • Easy-to-see dual display
  • Transfer data to PC even during recording
  • Replace batteries while recording (30 second limit)
  • 3 times the memory capacity compared to predecessor (Record 60,000 data per channel)
  • Record without missing fluctuations in STAT mode
  • Measurement data is preserved even after the battery dies
  • Worry-free backup preserves recorded data even if a new measurement is started by mistake

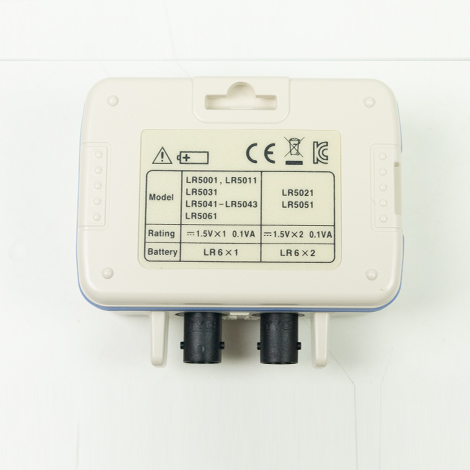

Hioki LR5051 Clamp Logger เครื่องบันทึกแคล์มมิเตอร์ AC (2ch)

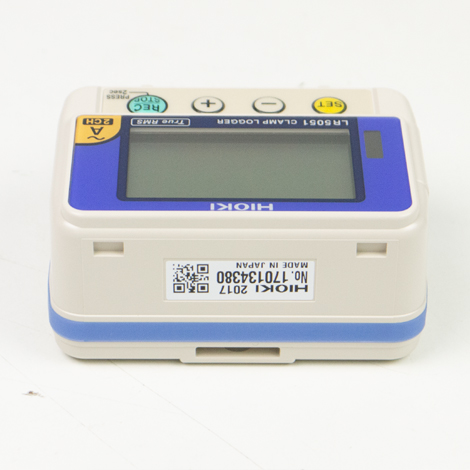

Hioki LR5051 Clamp Logger เครื่องบันทึกแคล์มมิเตอร์ AC (2ch)

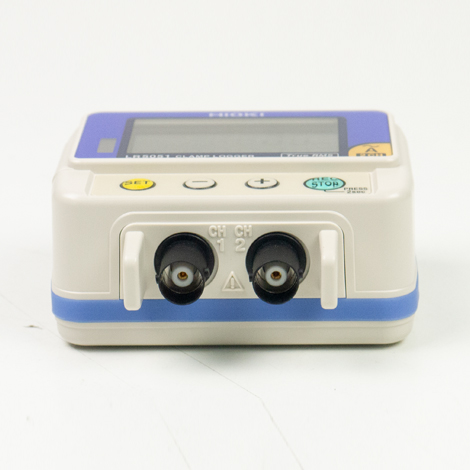

Hioki LR5051 Clamp Logger เครื่องบันทึกแคล์มมิเตอร์ AC (2ch)
Measurement items AC Current (2 channels)
*Current and leak current that occur intermittently cannot be measured
Range When Using 9669 :1000 A range
When Using CT6500 :50.00 A/ 500.0 A range
When Using 9695-02 :5.000 A/ 50.00 A range
When Using 9675 :500.0 mA/ 5.000 A range
When Using 9657-10 :500.0 mA/ 5.000 A range
Basic Accuracy ±0.5% rdg. ±5 dgt.+Clamp sensor accuracy
Storage capacity Instantaneous value mode: 60,000 data/ch, Statistical value mode: 15,000 data/ch
Recording interval 1 to 30 sec., 1 to 60 min., 15 selections
Recording modes

Instantaneous recording: at every recording interval

Statistical value recording: Measure at one second intervals, and record the instantaneous, maximum, minimum, and average values within every recording interval
Recording methods

One-time recording: Stop recording when the memory capacity is full
Endless recording: Continue recording even when the memory capacity is full (old data is overwritten)
Start: Logger button operation or scheduled time
Stop: Logger button operation or scheduled time, or auto-stop when the memory capacity is full (at one-time recording)
Other functions Always backs up last recorded data; backs up recorded data and setting conditions when battery power is low; guarantees approx. 30 sec. of recording operation and clock while battery is replaced
Operating temperature and humidity 0°C(32°F) to 50°C(122°F)
80%rh or less (non-condensating)
Power supply

LR6 (AA) Alkaline battery x 2

Battery life: Approx. 1 year (Instantaneous recording, with 1-minute interval and auto power saving, at 20 °C), Approx. 1 month (Instantaneous recording, with 1-second interval at 20 °C)
Dimensions and mass
  • 79 mm (3.11 in) W × 70 mm (2.76 in) H × 37 mm (1.46 in) D
  • 165 g (5.8 oz)
SKULR5051
Weight165.000000
Dimension79 x 70 x 37mm
ManufacturerHioki
Data loggerYes
Resolution No
Measurement Range

500.0 mA to 1000 A AC rms, 5 range (depends on current sensor in use)

  • When Using 9669 :1000 A range
  • When Using CT6500 :50.00 A/ 500.0 A range
  • When Using 9695-02 :5.000 A/ 50.00 A range
  • When Using 9675 :500.0 mA/ 5.000 A range
  • When Using 9657-10 :500.0 mA/ 5.000 A range
Other Function
  • Always backs up last recorded data
  • Backs up recorded data and setting conditions when battery power is low
  • Guarantees approx. 30 sec. of recording operation and clock while battery is replaced
Power SupplyLR6 (AA) Alkaline battery x 2
Water resistanceNo
Sensor Output InterfaceNo
Accuracy
  • ±2.0% rdg. ±0.13% f.s. (main unit + current sensor accuracy, at 500.0 A range, 50/60 Hz)
  • Main unit accuracy: ±0.5 %rdg. ±5 dgt., must added clamp sensor accuracy, refer to the detailed catalog
Your Rating

PDF Download PDF Download

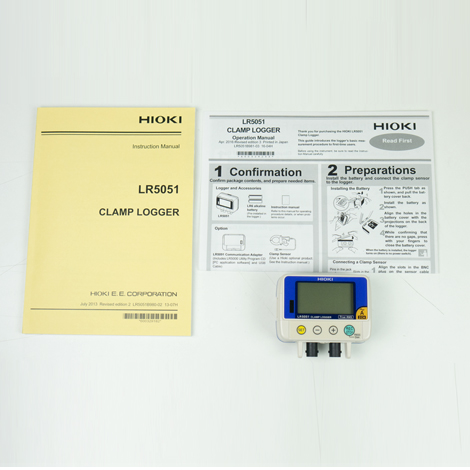

Accessories Included:

  • LR6 (AA) Alkaline battery (built-in internal) × 2
  • Instruction manual × 1
  • Operation guide × 1

CLAMP LOGGER LR5051
