Hioki-SS7012 เครื่องกําเนิดสัญญาณ DC

SKU
SS7012
Out of stock

เครื่องกําเนิดสัญญาณสัญญาณ DC (Voltage/ Current)
เหมาะสำหรับงานบำรุงรักษาตามมาตรฐาน
Constant voltage 2.5V / 25V
Constant current 25mA
HIOKI, JAPAN

สินค้าลงทะเบียนโปรดติดต่อฝ่ายขาย

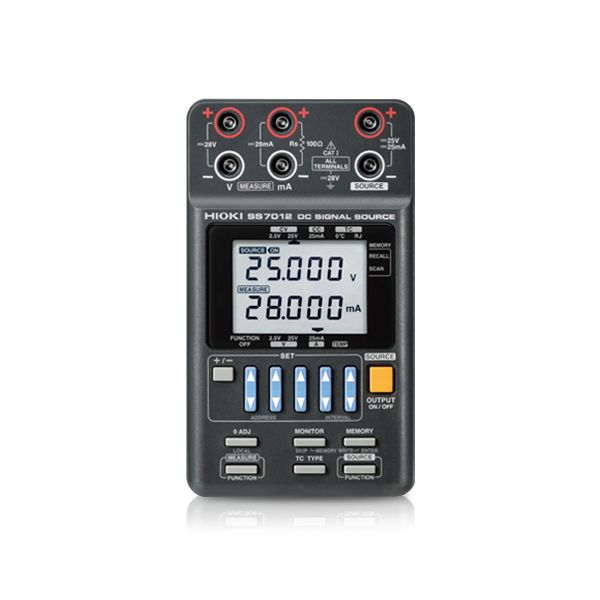

HIOKI DC Signal Source Model SS7012

The Hioki SS7012 is a compact DC signal source and calibrator that is used to perform maintenance or loop tests of instrumentation systems and can be operated from a computer via a USB cable. It can also be used to calibrate thermometers and measure DC voltage and DC current.

Key Features

• Improve stability and reduce calibration costs compared with the previous HIOKI model
• For instrumentation systems (4 - 20 mA) and loop testing
• Check temperature control equipment and electric distribution
• 8 types of thermocouples to test thermoelectric power generation
• Ideal for electrical device testing and routine maintenance of production equipment such as calibrators
• Use the max. 25 mA DC sink as an electric load

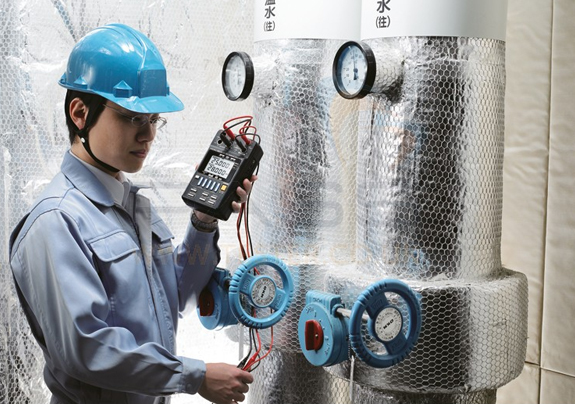

DC SIGNAL SOURCE Hioki SS7012

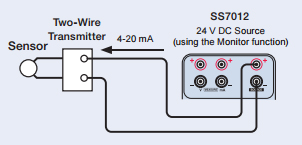

Loop test (two-wire transmitter sensor)
Loop test (two-wire transmitter sensor)
Verifi es proper sensor output (two-wire transmitter sensors). The SS7012 applies distributor power to the sensor as a constantvoltage (CV) output, and monitors current output from the sensor.

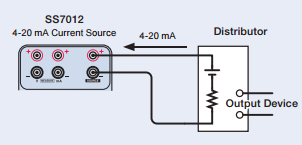

Loop test(distributor)
Loop test (distributor)
Test distributor operation. Apply the default current from the SS7012 as a substitute for sensor current output. Set SS7012 polarity to negative (to operate as a sink).

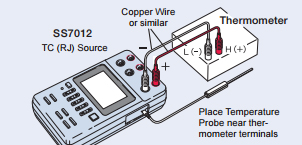

Thermometer calibration (TC, CV, and CC source)
Thermometer calibration (TC, CV, and CC source)
Substitute the output of sensors such as TC (thermocouple) voltage, current and resistance with TC, CV, CC and Rs (100 Ω) test signals from the SS7012.

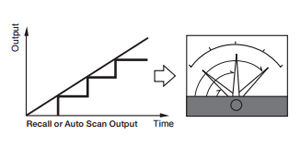

Store up to 20 steps in memory
Store up to 20 steps in memory
Up to 20 levels can be stored for each source function, which can be recalled manually or in sequence automatically (auto scan). Use this function for meter checking, repetitive adjustments, and linearity testing.
Temperature measurement
Use the optional 9184 Temperature Probe to measure temperatures from -25 to 80°C. As well as measuring ambient temperature, you can calibrate thermoelectric thermometers with reference junction compensation TC (RJ).
Portable, precise and stable
Despite the small size and light weight, the high precision and stability of ±0.03% for CV and CC sourcing, and ±0.05% ±0.5°C* for TC (0°C) sourcing, have one-year guaranteed accuracy. The compact hand-held design is convenient for travel, fi eld calibration, and servicing applications. * For TC (0°C) sourcing of K, E, J, and T thermoelectromotive force .

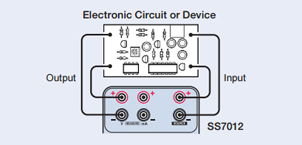

Simultaneous voltage and current sourcing and display
Simultaneous voltage and current  sourcing and display
Source up to ±25.000 V and ±25.000 mA while measuring up to ±28.000 V and ±28.000 mA. Isolated source and measurement circuits can increase operating efficiency for applications such as simultaneous input and output testing of transducers using a single instrument.

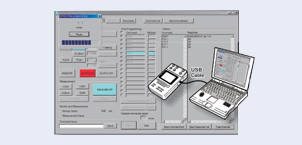

Small source applications
Small source applications
Use as a portable signal source for electronic device testing and evaluation. Full external control is available via the USB interface.* * Only for communicating with a PC. Accessing USB memory is not supported.
SKUSS7012
Weight660.000000
Dimension104 × 180 × 58mm
ManufacturerHioki
Your Rating

Accessories Included

  • Input cord 9168 ×1
  • Test lead L9170-10 ×1
  • Fuse ×1
  • LR6 (AA) alkaline battery ×4
  • Instruction manual ×1

Options:

  • TEMPERATURE PROBE 9184
  • CARRYING CASE 9380
  • AC ADAPTER 9445-02
  • AC ADAPTER 9445-03
  • CARRYING CASE 9782
  • COMMUNICATION PACKAGE SS9000
