HIOKI-Z2014 เซนเซอร์เครื่องวัดการถ่ายเทความร้อน

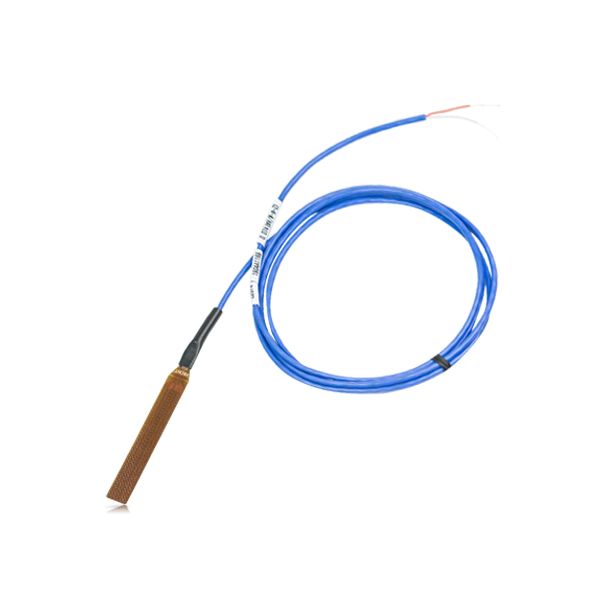

HIOKI-Z2014 Heat Flow Sensor For Heat flow Logger

The Z2012 to Z2014 are waterproof and flexible heat flow sensors for Hioki Heat Flow Logger LR8432. The flexibility enables you to measure even rounded objects such as piping that could not be measured properly before. In addition, you can measure objects that were impossible to isolate for measurement before, for example the surfaces of small parts and narrow gaps.

Features
Measure the movement and volume of heat energy with Model LR8432 Heat Flow Logger
Waterproof heat flow sensor that can measure curved surfaces (Minimum radius of sensor curvature 30 mm (1.18 in))
Isolation of heat generated and dissipated in automotive parts
Evaluate the thermal performance of building materials
Measure the energy efficiency of consumer electronics
Study the impact of body heat
Diagnose the deterioration of insulation material in plant piping
Index temperature fluctuation in agriculture and civil engineering
Hioki, Japan

Specifications

Model	HIOKI-Z2012	HIOKI-Z2013	HIOKI-Z2014
Typical sensitivity	0.013 mV/W・m^-2	0.049 mV/W・m^-2	0.089 mV/W・m^-2
Operating temperature	Sensor part : -40  to 150 °C Cable part: -40  to 120 °C
Waterproof protection	IP06, IP07 (EN60529)
Internal resistance (including cable)	3Ω to 500Ω	3Ω to 1000Ω	3Ω to 1500Ω
Min. curvature radius	30 mm
Compression strength	4 MPa
Thermal resistance	1.3 × 10^-3 (m^2·K/W)
Repeatable precision	±2%
Sensor part dimensions	W: 10 mm L: 9.1 mm t: 0.28 mm	W: 10 mm L: 31.6 mm t: 0.28 mm	W: 10 mm L: 54.1 mm t: 0.28 mm
Cable length	1.5 mm
