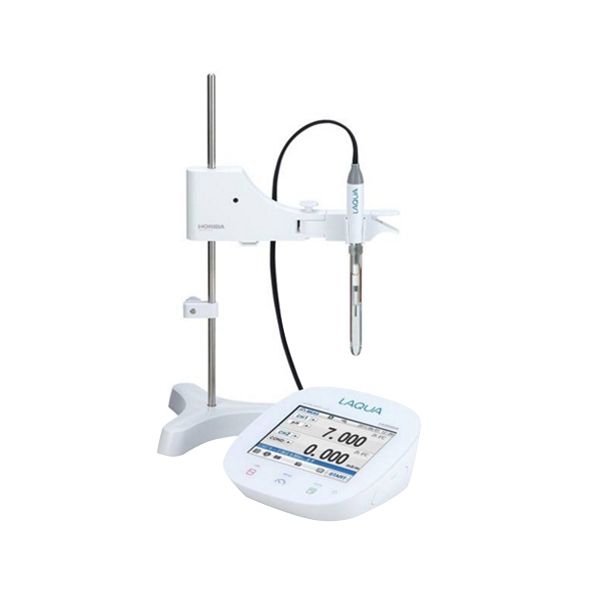

Horiba pH1300 Portable Meter pH/ORP/Temp

SKU
Horiba-PH1300-S
฿30,000.00
Pre-Order Item
Out of stock

เครื่องวัด pH/ ORP/ Ion/ Temp แบบตั้งโต๊ะ
ช่วงการวัด pH -2.000 to 19.999 pH
บันทึกข้อมูล 999 ค่า, Out put  USB, RS232C
ยี่ห้อ Horiba, Japan

Add to Compare

เครื่องวัด pH/ ORP/ Ion/ Temp แบบตั้งโต๊ะ (Benchtop Water Quality Meters)

ช่วงการวัด pH

  • -2.000 to 19.909 pH
  • Resolution 0.1/ 0.01/ 0.001 pH
  • Accuracy ±0.003 pH

ช่วงการวัด ORP range(โพรบแยกจำหน่าย 9300-10D)

  • ±1999.9 mV
  • Resolution 0.1 mV
  • Accuracy  ±0.2 mV

ช่วงการวัด Ion range(โพรบแยกจำหน่าย 6560-10C Chloride, 6561-10C Fluoride)

  • 0.00 µg/l to 999 g/l
  • Resolution 3 significant digits
  • Accuracy  ±0.8% full scale

ช่วงการวัดอุณหภูมิ

  • -30.0 °C to 130 °C
  • Resolution 0.1 °C
  • Accuracy ±0.4 °C

บันทึกข้อมูล 999 ค่า
หน้าจอ Custom LCD
Power requirements  AC adaptor100 ~ 240 V, 50/60 Hz
ขนาดตัวเครื่อง 170 x 174 x 73 mm (500g)
ยี่ห้อ Horiba, Japan

Horiba 1000 Benchtop Water Quality Meters

Horiba 1000 Series

Horiba 1000 Series

Horiba 1000 Series Horiba 1000 Series

Intuitive and easy to use
Soft-touch operation panel
•Scratchproof and chemical-
resistant glasspanel
•Large display – 5.5”
•Small footprint 170x174x73mm
•Protection cover included

360º Manoeuvrability
•Light-weight electrode stand
can be integrated with meter
or placed separately
•Base of electrode stand can
be used as a convenient
platform for placing beakers
•Arm of electrode stand freely
rotates 360º
•Height-adjust stopper controls
vertical slide of electrode
stand arm

Data management
•Internal memory with
indexed data
•Automatically log measured
values to memory with Auto
Log function
•Input sample ID for easier
sample referencing
(selected models)
•Date/time stamping with
real-time clock
(selected models)
•Output to printer, PC or USB
memory-stick (selected models)
•RS232C or USB
(selecte models) for data
out put

GLP / GMP
•Important information such as
model number, serial number,
calibration data, electrode
condition and
parameters can be printed out
(selected models)
•Date / time stamping of
calibration performed
•Number of calibration points
done and value of calibration
solutions recorded
•Electrode parameters are
captured and printed
(selected modesl)



Specifications pH Meters (Benchtop Water Quality Meters)

Model

Horiba-pH1100
pH/ ORP/ Temp(°C)

Horiba-pH1200
pH/ ORP/ Temp(°C)

Horiba-pH1300
pH/ ORP/ Ion/ Temp(°C)

pH range -2.00 to 19.99 pH -2.000 to 19.999 pH
Resolution 0.1/ 0.01 pH 0.1/ 0.01/ 0.001 pH
Accuracy ±0.01 pH ±0.003 pH
Cal points 5
Buffer options USA, NIST  USA, NIST, Custom
ORP range ±1999.9 mV
Resolution 0.1 mV
Accuracy ±0.2 mV
Ion range  —   0.00 μg/l to 999 g/l
Resolution 3 significant digits
Accuracy ±0.8% full scale
Cal points Up to 5
Temperature range -30.0 to 130 °C
 Resolution  0.1  °C
Accuracy ±0.4 °C
Cal option Yes (±5.0°C range in 0.1°C increments)
Memory 500 ค่า  999 ค่า
Data-logging    Yes
Real time clock  —  Yes
Date/time stampin  —  Yes
Auto Shut-off Yes (programmable: 1 to 30 mins)
Auto-Hold Yes
Averaging/ Stability Yes, Automatic
Offset display Yes
Slope display

Yes (independent acid and alkaline slopes depending on calibration)

Cal Alarm

Yes (programmable: 1 to 400 days)

Electrode status On screen display
Diagnostic messages Yes
Display Custom LCD
Inputs BNC, phono, DC sockets
Outputs RS232C USB, RS232C
Power requirements AC adaptor100 ~ 240 V, 50/60 Hz
Electrode stand Integrated
Dimensions 170 x 174 x 73mm (500g)
SKUHoriba-PH1300-S
Weight500.000000
Dimension170 x 174 x 73mm
ManufacturerHoriba
Data loggerYes
pH electrode connectionBNC
mV functionYes
Multi parameter (DO, TDS with optional probes)No
ORP with optional probeYes
Resolution 0.1 / 0.01 / 0.001 pH
Measurement Range-2.000 to 19.999 pH
Other FunctionNo
Power SupplyAC adaptor100 ~ 240 V, 50/60 Hz
Water resistanceNo
Sensor Output InterfaceUSB, RS232C
Accuracy±0.003 pH
Your Rating

PDF Download Catalog

อุปกรณ์มาตรฐาน
PH1300 Benchtop Water Quality Instruments
• pH 1300 meter
• Electrode stand
• Power adaptor
• pH 4.01, 7.01, 10.01, 3.33M KCl solutions (250ml ea)
• 9615S-10D - refillable, glass-body pH electrode with integrated temperature sensor, 1m cable, BNC & phono jack

อุปกรณ์เสริม (แยกจำหน่าย)
• 9300-10D โพรบวัด ORP
• 6560-10C โพรบวัด Iron Chloride
• 6561-10C โพรบวัด Iron Fluoride
