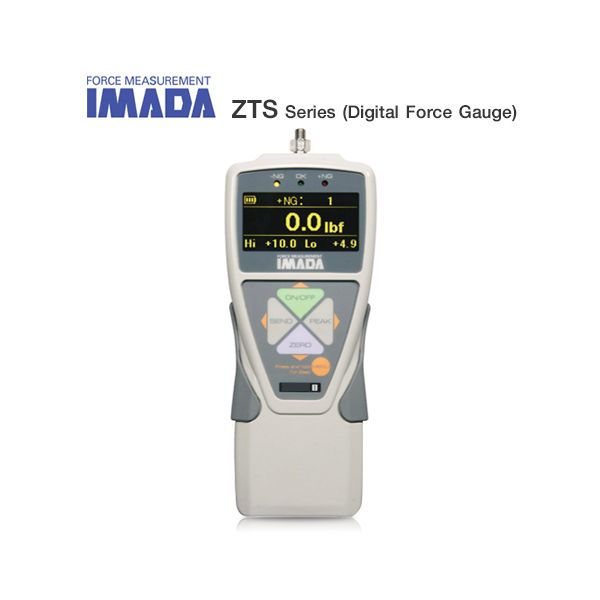

IMADA ZTS Series Digital Force Gauge

SKU
ZTS Series

Out of stock

เครื่องวัดแรงดึง/แรงผลักแบบดิจิตอล
ช่วงการวัดมีให้เลือกใช้งานตั้งแต่ 2N - 5000N (ตามแต่ละรุ่น)
ยี่ห้อ IMADA , Japan

0

IMADA ZTS Series เครื่องวัดแรงดึง/แรงผลัก

เครื่องวัดแรงดึง แรงผลัก (Force Gauges) เคือเครื่องมือที่ใช้สำหรับการวัดแรงระหว่างการทดสอบการดึงหรือการผลัก นิยมใช้ในงานด้านการวิจัยและพัฒนา, ห้องแล็บ, การควบคุมคุณภาพ, การผลิต และในด้านสิ่งแวดล้อม ซึ่งมีทั้งแบบดิจิตอล และ อนาล็อก ขึ้นอยู่กับการเลือกใช้งานแต่ละประเภท

IMADA ZTS Series ช่วงการวัดมีให้เลือกใช้งานตั้งแต่ 2N - 5000N (ตามแต่ละรุ่น)
Resolution 0.1N
Accuracy ±0.2%F.S.±1digit
หน่วยการวัด N, kgf, lbf (*2)
Display update 16 ค่าต่อวินาที
Sampling rate 2000 ค่าต่อวินาที
หน้าจอการแสดงผล EL Display สามารถมองเห็นได้ในที่มืด
ฟังก์ชั่น Multi-langauge program menus: English, Spanish, French, Chinese, German, Italian, Korean, Japanese
ฟังก์ชั่น Data memory 1000 ค่า
USB (virtual COM port), RS-232 Output
แบตเตอรี่ Rechargeable (อายุการใช้งานแบตเตอรี่ประมาณ 8 ชั่วโมง)
อุปกรณ์มาตรฐาน

  • AC adapter
  • Inspection certificate
  • CD driver (including simple software for data logging)
  • Attachments (The set of attachments varies according to range.)
  • USB cable
  • Carrying case.

ยี่ห้อ IMADA , JapaN

ตัวอย่างการใช้งานเครื่องวัดแรงดึง/แรงผลักแบบดิจิตอล

IMADA-ZTS IMADA-ZTS IMADA-ZTS

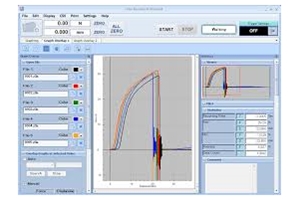

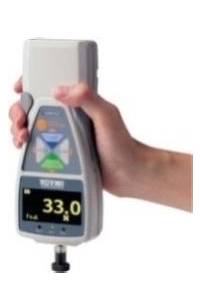

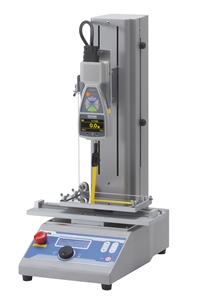

Simply handheld use High repeatability with a test stand Make graphs to analyze force transition


Capture peak value

IMADA-ZTS IMADA-ZTS

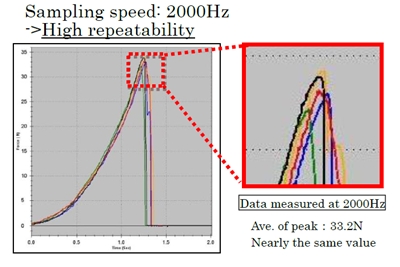

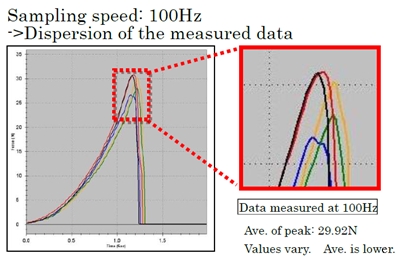

Sampling speed : 2000Hz Sampling speed : 100Hz



เครื่องวัดแรงดึง/แรงผลักแบบดิจิตอล

Model Capacity Display Resolution thread
ZTS-2N 2N 2.000N (2000mN) 0.0001N (1mN) M6
ZTS-5N 5N 5.000N (5000mN) 0.0001N (1mN) M6
ZTS-20N 20N 20.00N 0.01N M6
ZTS-50N 50N 50.00N 0.01N M6
ZTS-100n 100N 100.0N 0.01N M6
ZTS-200N 200N 200.0N 0.01N M6
ZTS-500n 500N 500.0N 0.01N M6
ZTS-1000N 1000N 1000N (1.000kN) 1N (0.001kN) M6
ZTS-2500N 2500N 2500N (2.500kN) 1N (0.001kN) M10
ZTS-5000N 5000N 5000N (5.000kN) 1N (0.001kN) M10



วิดีโอสาธิตการใช้งานเครื่องวัดแรงดึง/แรงผลัก IMADA ZTS

SKUZTS Series
Dimensiondepend by model
ManufacturerIMADA
Data loggerYes
Resolution No
Measurement Rangeสูงสุด 5000N
Other Function

Customized display (header and footer)

Peak hold (tension and compression)

Data memory 1000 ค่า

Comparator (judgment of OK or NG)

Reversible display

Sign inversion

Zero clear timer

+NG alarm

Aauto power OFF



Power SupplyRechargeable
Water resistanceNo
Sensor Output InterfaceNo
Accuracy

±0.2%F.S.±1digit

Your Rating

อุปกรณ์มาตรฐาน

  • AC adapter
  • Inspection certificate
  • CD driver (including simple software for data logging)
  • Attachments (The set of attachments varies according to range.)
  • USB cable
  • Carrying case

อุปกรณ์เสริม (แยกจำหน่าย)

Product No. Product Detail

Analog voltage (Sensor raw data)

To output sensor data as fast analog voltage without conversion.

*The speed is higher than D/A (standard), but there are demerits at the same time that zero reset is not possible, and there are may be signal noise.

*CB-118 cable is necessary

Related products

Graphing Software

Graphing Software: Force Recorder

Force gauge: ZTA series

High functionality model. It has more useful functions than ZTS series.

Printer: DP-1VR

Prints indicated values and data in internal memory.

*CB-308 cable is necessary.

Handle: FOH-1

You can grip handles firmly so that it becomes easier to apply high load force steadily

Battery: BP-308

Battery for replacement.

Related Cable
 CB-108 Analog cable To connect to a multi meter, oscilloscope.
 CB-118 Analog cable To connect to a multi meter, oscilloscope.
 CB-208 RS232C cable To connect to a PC having its own system
 CB-308 Digimatic cable To connect to a printer DP-1VR
 CB-508 Test stand option cable (For MX) To connect to a test stand to enable force control or overload prevention functions.
 CB-518 Test stand option cable (For MX2,EMX) To connect to a test stand to enable force control or overload prevention functions.
 CB-908 Open end connection cable Output cable for loose wire 37 pin (Useful for connection with unique equipment.)
external sensor (load cell)
DPU series Shaped to fit for mounting on your external equipment easily. For both compression and tension.
LM series A thin coin shaped load cell for compression.
LMU series Small load cell for both compression and tension.
