INSIZE IN-4166-4D Pin Gage Set

SKU

IN-4166-4D

Skip to the end of the images gallery

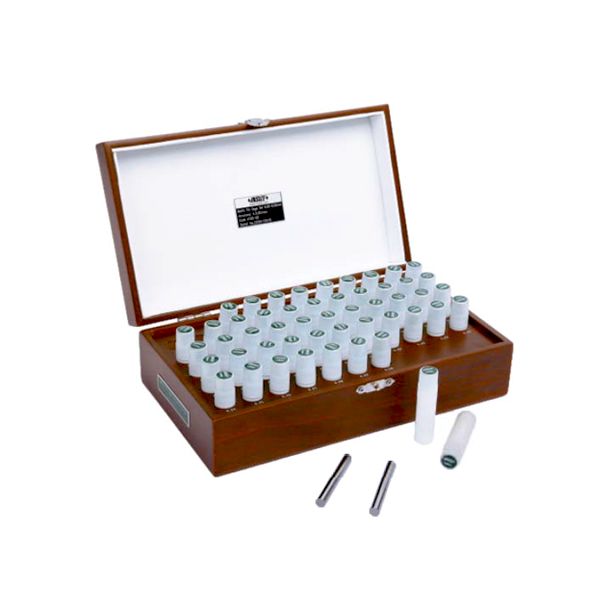

main product photo

Skip to the beginning of the images gallery

Out of stock

INSIZE IN-4166-4D Pin Gage พินเกจแบบอัลลอยด์

ช่วงการวัด 4.00 - 4.50 (Step 0.01mm)

จำนวน 51 ชิ้น/เซ็ต

ยี่ห้อ INSIZE

Category: Insize

INSIZE IN-4166-4D Pin Gage พินเกจแบบอัลลอยด์

ช่วงการวัด 4.00 - 4.50 (Step 0.01mm)

จำนวน 51 ชิ้น/เซ็ต

ยี่ห้อ INSIZE

INSIZE Pin Gage Set พินเกจแบบอัลลอยด์

Dimension	เซ็ตพินเกจ

Specification INSIZE Pin Gage Set พินเกจแบบอัลลอยด์

Model	Diameter Ød(mm)	Step	Pin gages per set	Diameter accuracy
4166-0D	0.20, 0.21, 0.22, ... 0.50	0.01mm	31	±1µm
4166-1	0.50, 0.51, 0.52, ... 1.00	0.01mm	51	±1µm
4166-1D	1.00, 1.01, 1.02, ... 1.50	0.01mm	51	±1µm
4166-2	1.50, 1.51, 1.52, ... 2.00	0.01mm	51	±1µm
4166-2D	2.00, 2.01, 2.02, ... 2.50	0.01mm	51	±1µm
4166-3	2.50, 2.51, 2.52, ... 3.00	0.01mm	51	±1µm
4166-3D	3.00, 3.01, 3.02, ... 3.50	0.01mm	51	±1µm
4166-4	3.50, 3.51, 3.52, ... 4.00	0.01mm	51	±1µm
4166-4D	4.00, 4.01, 4.02, ... 4.50	0.01mm	51	±1µm
4166-5	4.50, 4.51, 4.52, ... 5.00	0.01mm	51	±1µm
4166-5D	5.00, 5.01, 5.02, ... 5.50	0.01mm	51	±1µm
4166-6	5.50, 5.51, 5.52, ... 6.00	0.01mm	51	±1µm
4166-6D	6.00, 6.01, 6.02, ... 6.50	0.01mm	51	±1µm
4166-7	6.50, 6.51, 6.52, ... 7.00	0.01mm	51	±1µm
4166-7D	7.00, 7.01, 7.02, ... 7.50	0.01mm	51	±1µm
4166-8	7.50, 7.51, 7.52, ... 8.00	0.01mm	51	±1µm
4166-8D	8.00, 8.01, 8.02, ... 8.50	0.01mm	51	±1µm
4166-9	8.50, 8.51, 8.52, ... 9.00	0.01mm	51	±1µm
4166-9D	9.00, 9.01, 9.02, ... 9.50	0.01mm	51	±1µm
4166-10	9.50, 9.51, 9.52, ... 10.00	0.01mm	51	±1µm

Model	Diameter Ød(mm)	Step	Pin gages per set	Diameter accuracy
4166-2S	1.00, 1.01, 1.02, ... 2.00	0.01mm	101	±1µm
4166-3S	2.00, 2.01, 2.02, ... 3.00	0.01mm	101	±1µm
4166-4S	3.00, 3.01, 3.02, ... 4.00	0.01mm	101	±1µm
4166-5S	4.00, 4.01, 4.02, ... 5.00	0.01mm	101	±1µm
4166-6S	5.00, 5.01, 5.02, ... 6.00	0.01mm	101	±1µm
4166-7S	6.00, 6.01, 6.02, ... 7.00	0.01mm	101	±1µm
4166-8S	7.00, 7.01, 7.02, ... 8.00	0.01mm	101	±1µm
4166-9S	8.00, 8.01, 8.02, ... 9.00	0.01mm	101	±1µm
4166-10S	9.00, 9.01, 9.02, ... 10.00	0.01mm	101	±1µm

More Information

SKU	IN-4166-4D
Weight	0.000000
Dimension	0
Manufacturer	Insize
Material	Alloy Steel

ดาวน์โหลดแคตตาล็อค INSIZE
