Lutron CM-6155C AC/DC Clamp Meter (1000A)

SKU
CM-6155C

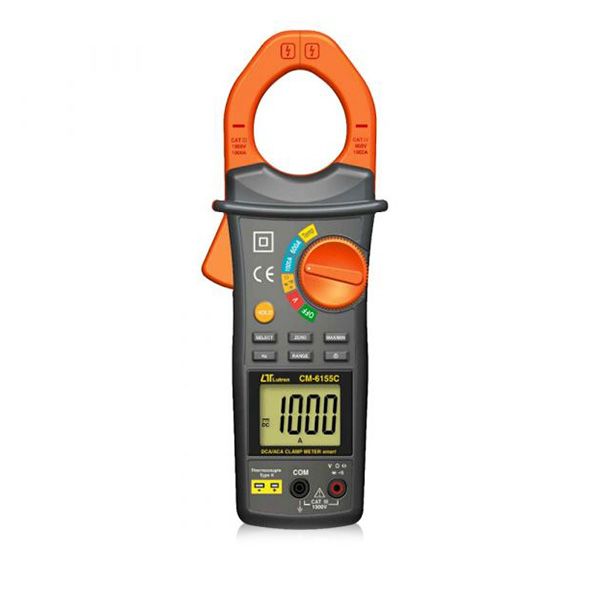

main product photo
฿6,200.00
In stock

DCA/ ACA CLAMP METER
DCV, ACV, ACA, DCA, ohms, Hz, Diode,
Continuity beeper, Capacitance, Temperature
Data Hold, Auto Power Off, Record Max/ Min.
Conform IEC 1010, CAT III 1000V
Lutron

Add to Compare
Categories: Clamp Meters, Our Recommendations , Lutron , Product Type 3N
Lutron

Lutron CM-6155C AC/DC Clamp Meter (1000A)

DCA/ACA CLAMP METER, with measurement units: DCV, ACV, ACA, DCA, ohms, Continuity beeper, Hz, Capacitance,  Temperature, Diode. And more functions such as, Data Hold, Auto power off, Record Max/Min. Large LCD display easy readout, Conform IEC1010, CAT III 1000V

DC Voltage
Range Resolution Accuracy Overload Protection
600 mV 0.1 mV ± (0.8% + 2 d) ± 500 DCV, 350 ACV
6 V 0.001 V ± (0.8% + 1 d) ± 1000 DCV, 350 ACV
60 V 0.01 V
600 V 0.1 V
1000 V 1 V
AC Voltage
Range Resolution Accuracy Overload Protection
6 V 0.001 V ± (1% + 2 d) ± 1000 DCV, 350 ACV
60 V 0.01 V
600 V 0.1 V
1000 V 1 V
DC/AC Current (Clamp on)
Range Resolution Accuracy Overload Protection
600 A 0.1 A ± (1.5% + 15 d) AC/DC 1000 A
1000 A 1 A ± (2% + 8 d)
Ohms (Ω)
Range Resolution Accuracy Overload Protection
600 Ω 0.1 Ω ± (1% + 2 d) AC/DC 350 V
6 KΩ 0.001 KΩ ± (1.5% + 2 d)
60 KΩ 0.01 KΩ
600 KΩ 0.1 KΩ
6 MΩ 0.001 MΩ
60 MΩ 0.01 MΩ
Capacitance
Range Resolution Accuracy Overload Protection
6 nF 0.001 nF ± (3% + 5 d) AC/DC 30 V
60 nF 0.01 nF
600 nF 0.1 nF
6 μF 0.001 μF
60 μF 0.01 μF
600 μF 0.1 μF
Frequency (> 5 V)
Range Resolution Accuracy Overload Protection
40 Hz to 1 KHz 0.001 KHz ± (0.5% + 2 d) AC/DC 1000 V
Temperature
Range -20 to 750°C
Resolution 1°C
Accuracy -20 to 300°C : ± (1% + 2°C)
301 to 750°C : ± 3% reading
Diode: Short/non conductance, good/defect test
Continuity: If measuring resistance is less than 20 Ω, the beeper will sound
SKUCM-6155C
Weight373.000000
Dimension241 x 94 x 46 mm
ManufacturerLutron
Data loggerNo
Resolution

Resolution depends on measurement function.

Measurement Range
  • DCV : 600mV - 1000V
  • ACV : 6V - 1000V
  • DCA : 600A - 1000A
  • ACA : 600A - 1000A
  • Resistance : 600Ω - 60MΩ
  • Frequency : 40Hz - 1KHz
  • Capacitance : 6nF - 600uF
  • Continuity : Beeper will sound if measured resistance less than 20Ω
  • Diode : Short/ non conductance good/ defect test
  • Temperature : -20 to 750°C
Other Function
  • "V" function can select ACV, DCV automatically with auto range
  • "Ω" function can select the Resistance, Diode, Continuity beeper, Capacitance automatically with auto range
  • "600A" & "1000A " function can measure ACA, DCA
  • Records Maximum & Minimum readings with recall
  • Data hold to freeze the display reading on the LCD display
  • Auto power of or manual power off
Power Supply

Battery 9V

Water resistance

No

Sensor Output InterfaceNo
Accuracy

Accuracy depends on measurement function.

Your Rating
Manual Download Manual Download

อุปกรณ์ที่มีมาในชุด

  • Main unit × 1
  • Red & Black Test Leads × 1
  • Temperature Probe (TP-01) × 1
  • Instruction manual × 1
  • Calibration Certificate (from manufacture) × 1
  • Soft carrying case × 1
  • Battery 9V (ทางเลกะแถมให้ฟรี) × 1

อุปกรณ์เสริม (แยกจำหน่าย)

  • Temperature Probe (TP-01)
