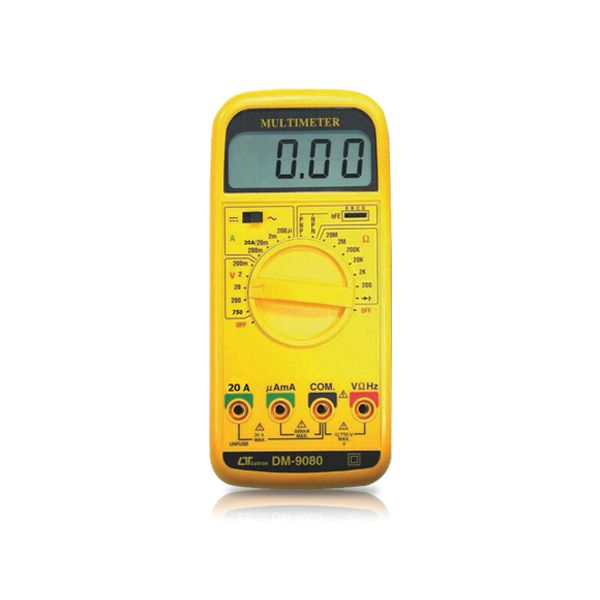

Lutron DM-9080 Digital Multimeter

SKU
DM-9080
main product photo
฿0.00
Pre-Order Item
Out of stock

Lutron DM-9080 เครื่องวัดมัลติมิเตอร์แบบดิจิตอล
Smart Function Built-in 4 function : V, Ω, mA, 10A
รูปแบบการวัด : ACA, ACV, DCA, DCV, ohms, diode, hFE.
Built-in overload protection สำหรับทุกช่วงการวัด
หน้าจอ LCD ขนาดใหญ่
ยี่ห้อ Lutron

Discontinued Product│สินค้ายกเลิกจำหน่าย

Authorized_Lutron

Categories: Multimeters, Lutron , Discontinued Products
Lutron

Lutron DM-9080 เครื่องวัดมัลติมิเตอร์แบบดิจิตอล

Features

  • Multi-function measurement : ACV, DCV, ACA, DCA, OHMS, DIODE, hFE.
  • Rotary function switch, easy operation.
  • Large size LCD display.
  • Built in overload protection for any ranges.
  • Fuse for overload protection.
AC Voltage
Range Accuracy Resolution Input Impedance Overload Protection
200 mV ± (0.5% +1 d) 100 µV 10 MΩ 500 V DC, 350 V AC
2 V ± (0.8% +1 d) 1 mV DC 750 V
AC 750 V
20 V 10 mV
200 V 100 mV
750 V 1 V
DC Voltage
Range Accuracy Resolution Input Impedance Overload Protection
200 mV ± (1% +2 d) 100 µV 10 MΩ 500 V DC, 350 V AC
2 V 1 mV DC 750 V
AC 750 V
20 V 10 mV
200 V 100 mV
750 V 1 V
AC / DC Current
Range Accuracy Resolution Voltage Drop Overload Protection
200 µA DCA : ± (1% +1 d)
ACA : ± (1.2% +2 d)		 0.1 µA ACA : AC 200 mV
DCA : DC 200 mV		 0.5 A Fuse
2 mA 1 µA
20 mA 10 µA
200 mA 100 µA
20 A DCA : ± (1.5% +2 d)
ACA : ± (1.5% +3 d)		 10 mA Unfused
Resistance
Range Accuracy Resolution Open CKT. Voltage Overload Protection
200 Ω ± (1% +3 d) 0.1 Ω 3 V Max. AC 500 V
DC 500 V
2 KΩ ± (0.8% +1 d) 1 Ω Approx. 0.3 V Max.
20 KΩ 10 Ω
200 KΩ 100 Ω
2000 KΩ 1 KΩ
20 MΩ ± (2% +2 d) 10 KΩ
Measurement ACA, ACV, DCA, DCV, ohms, Diode, hFE.
Sampling time Approx. 0.4 second
Operating Temperature 0 to 50°C
Operating Humidity Less than 80% RH
Power Requirement Battery 9V , DC 3.6mA
Dimension / Weight 185 x 87 x 39mm (322g)
SKUDM-9080
Weight322.000000
Dimension185 x 87 x 39mm
ManufacturerLutron
Data loggerNo
AccuracyDepending on range
Resolution Depending on range
Measurement Range

AC / DC Voltage: 200 mV to 750 V
AC / DC Current : 200 uA to 20 A
Resistance : 200 Ω to 20 MΩ

Other Function
  • Multi-function measurement : ACV, DCV, ACA, DCA, OHMS, DIODE, hFE.
  • Rotary function switch, easy operation.
  • Large size LCD display.
  • Built in overload protection for any ranges.
  • Fuse for overload protection.
Power SupplyBattery 9V
Water resistanceNo
Sensor Output InterfaceNo
