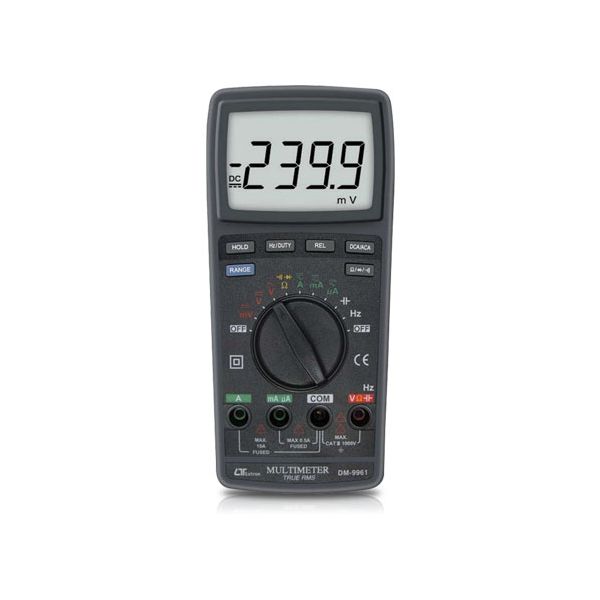

Lutron DM-9961 Digital Multimeter

Lutron DM-9961 เครื่องวัดมัลติมิเตอร์แบบดิจิตอล

ELECTRICAL SPECIFICATIONS

AC Voltage (True RMS)
Range	Accuracy	Resolution	Input Impedance	Overload Protection
400 mV	± (1% +2 d)	0.1 mV	10 MΩ	500 V DC, 350 V AC
4 V		1 mV		DC 1000 V AC 1000 V
40 V		10 mV
400 V		100 mV
1000 V		1 V
DC Voltage
Range	Accuracy	Resolution	Input Impedance	Overload Protection
400 mV	± (0.5% +2 d)	0.1 mV	10 MΩ	500 V DC, 350 V AC
4 V		1 mV		DC 1000 V AC 1000 V
40 V		10 mV
400 V		100 mV
1000 V		1 V
AC Current (True RMS), DC Current
Range	Accuracy	Resolution	Voltage Drop	Overload Protection
400 µA	± (0.5% +2 d)	0.1 µA	—	0.5 A Fuse
4 mA		1 µA
40 mA		0.01 mA
400 mA		0.1 mA
10A	± (1.5% +2 d)	10 mA		10 A Fuse
Diode
Range	4 V DC
Resolution	0.001 V
Accuracy	± (0.5% +2 d)
OHMS
Range	Accuracy	Resolution	Input Impedance	Overload Protection
400 Ω	± (0.5% +2 d)	0.1 Ω	—	± 350 DCV ± 350 ACV
4 KΩ		1 Ω
40 KΩ		10 Ω
400 KΩ		100 Ω
4 MΩ		1 KΩ
40 MΩ	± (2% +5 d)	10 KΩ

SPECIFICATIONS

Measurement	ACV, DCV, ACA, DCA, OHM, Continuity Beeper
Sampling time	Approx. 0.5 to 1 second
Operating Temperature	0 to 50°C
Operating Humidity	Less than 80% RH
Power Requirement	Battery 9V , DC 1.7mA
Dimension / Weight	185 x 88 x 40mm (350g)

SKU	DM-9961
Weight	350.000000
Dimension	185 x 88 x 40mm
Manufacturer	Lutron
Data logger	No
Accuracy	Depending on range
Resolution	Depending on range
Measurement Range	AC / DC Voltage: 200 mV to 750 V AC / DC Current : 200 uA to 20 A Resistance : 200 Ω to 20 MΩ
Other Function	Multi-function measurement : ACV, DCV, ACA, DCA, OHMS, DIODE, hFE. Rotary function switch, easy operation. Large size LCD display. Built in overload protection for any ranges. Fuse for overload protection.
Power Supply	Battery 9V
Water resistance	No
Sensor Output Interface	RS-232
