Lutron LX-11128SD Light Meter-SD Card Data Logger

SKU
LX-11128SD
฿6,600.00
In stock

Light Meter 2 in 1
LUX & Foot Candle units selection
3 ranges 2,000/ 20,000/ 100,000 LUX
Open file data as Microsoft office Excel
Real time data logger SD Card (1 GB to 16 GB.)
RS232/USB PC Computer interface
Lutron

Add to Compare

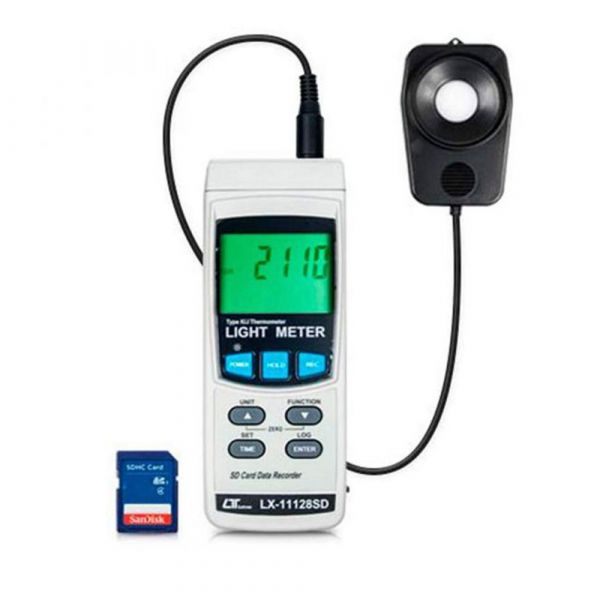

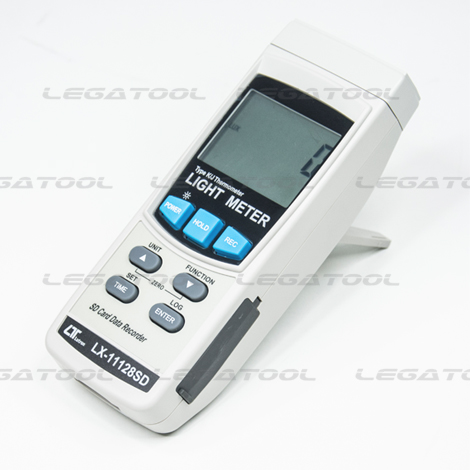

Lutron LX-11128SD LIGHT METER | SD Card

LX-11128SD is the light meter with fast measuring and high accuracy. LCD display with green Backlight easy-to-read even in the dark environment. Data hold, record max. and min. reading, auto power off. RS232/USB PC COMPUTER interface (optional).

Lutron LX-11128SD
Lutron LX-11128SD

Datalogger Sampling Time Setting range from 1 to 3600 seconds both Auto and Manual via SD memory card (1 to 16 GB). Built-in Clock and Calendar will show with data information. The innovation and easy operation, no need to setup software, just put the SD Card into the computer. You can open file data as Excel directly.

EXCEL data screen (for example)
EXCEL graphic screen (for example)
Measurement Range Resolution Accuracy
Lux 2,000 Lux 1 Lux ± (4% + 2 dgt)
20,000 Lux 10 Lux
100,000 Lux 100 Lux
Feet-candle 200 Ft-cd 0.1 Ft-cd ± (4% + 2 dgt)
2,000 Ft-cd 1 Ft-cd ± (4% + 2 Ft-cd)
10,000 Ft-cd 10 Ft-cd ± (4% + 20 Ft-cd)
Thermometer Type K -50.0 to 1300.0ºC 0.1ºC ± (0.4% + 0.5ºC)
-100.0 to -50.1ºC ± (0.4% + 1ºC)
Thermometer Type J -50.0 to 1200.0ºC 0.1ºC ± (0.4% + 0.5ºC)
-100.0 to -50.1ºC ± (0.4% + 1ºC)
Circuit Custom one-chip of microprocessor LSI circuit.
Interface RS232, USB PC interface
Data storage SD card 1 to 16 GB
Functions Data hold, record max./ min.
Power requirement Battery AA x 6
Dimensions/ Weight 177 x 68 x 45 mm/ 489 g
SKULX-11128SD
Weight346.000000
Dimension182 x 73 x 47.5mm
ManufacturerLutron
Data loggerYes
Solar Power RangeNo
UV measurementNo
Switching Lx RangeAuto
UV measurement rangeNone
Lux measurement range

■ 2,000
■ 20,000
■ 100,000 LUX

Other Function

■ Set clock time (Year/ Month/ Date,Hour/ Minute/ Second)
■ Decimal point of SD card setting
■ Auto power OFF managemen
■ Set beep Sound ON/OFF
■ Set thermometer type to Type K or Type J
■ Set temperature unit to or ℃ ℉
■ Set sampling time
■ SD memory card Format

Power Supply

■ Alkaline Battery AA x 6, DC9V adapter

Resolution

■ 1
■ 10
■ 100 Lux

Water resistanceNo
Sensor Output InterfaceNo
Accuracy

■ ±(4 %+2 dgt) at 2,000 - 100,000 LUX

Your Rating

ลักซ์มิเตอร์คือเครื่องวัดปริมาณของแสงที่มองเห็น (ความสว่าง)

เครื่องวัดปริมาณของแสงที่มองเห็น (ความสว่าง) ในพื้นที่ที่กำหนดทดสอบ สว่างจะแสดงในหน่วยของ LUX (ตัวชี้วัด) และเทียนเท้า (อังกฤษ) Lux เป็นหน่วยมาตรฐานของการวัดความเข้มของแสง (ซึ่งยังสามารถเรียกว่า “ความสว่าง” หรือ “ความสว่าง”)

อุปกรณ์ที่มีมาภายในชุด

  • Main Unit × 1

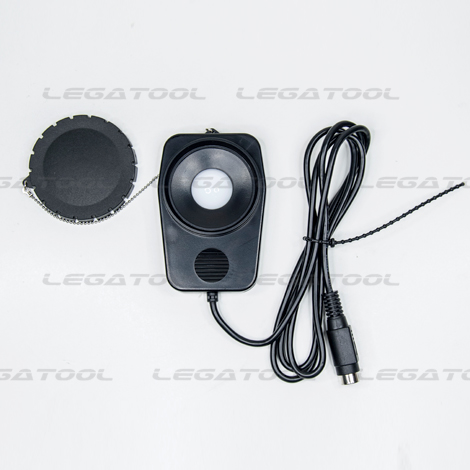

  • Light sensor with protective cover × 1
  • Instruction manual × 1
  • Calibration Certificate (from manufacture) × 1
  • SD Card ขนาด 32GB (ทางเลกะแถมให้ฟรี) × 1
  • Batteries AA (ทางเลกะแถมให้ฟรี) × 6


อุปกรณ์เสริม (แยกจำหน่าย)
