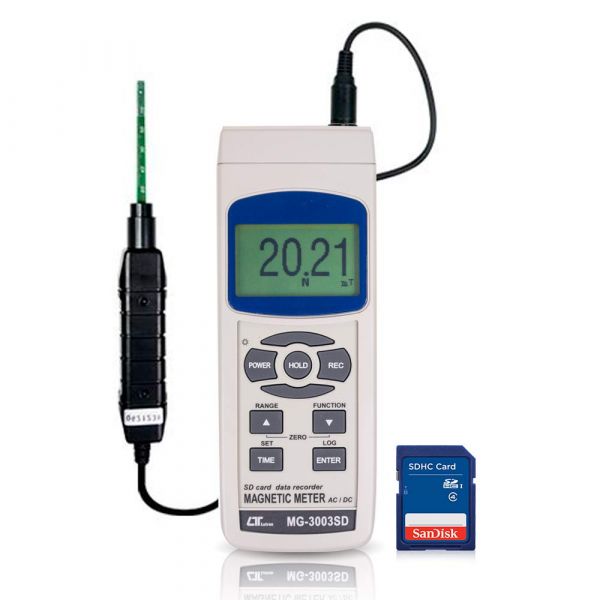

Lutron MG-3003SD AC/ DC Magnetic Meter | SD Card

The MG-3003SD, Wide range, general purpose magnetic measurement, Mostly used in industrial plants such as, to measure magnetic strength that is used to suck metal debris in production lines or machines that use magnets to hold objects. The Magnetic Probe used Hall Sensor with Automatic Temperature Compensation (ATC). Convenient with Data hold, Record Max/ Min, Auto power off and LCD display with green backlight, easy reading

Datalogger Sampling Time Setting range from 1 to 3600 seconds both Auto and Manual via SD memory card (1 to 16 GB). Built-in Clock and Calendar will show with data information. The innovation and easy operation, no need to setup software, just put the SD Card into the computer. You can open file data as Excel directly.

EXCEL data screen (for example)

EXCEL graphic screen (for example)

SPECIFICATION

Measurement		Range	Resolution	Accuracy
DC	milli Tesla	300.00	0.01	± (5% rdg + 10 digit)
		3,000.0	0.1
	Gauss	3,000.0	0.1
		30,000	1
AC	milli Tesla	150.00	0.01	± (5% rdg + 20 digit)
		1,500.0	0.1
	Gauss	1,500.0	0.1
		15,000	1
Frequency Response		AC 50/60 Hz
Sensor		Hall sensor
Circuit		Custom one-chip of microprocessor LSI
Data storage		SD memory card 1 to 16 GB
Function		Auto power off, Data hold, Record max/min, Zero button for DC magnetic
Interface		RS-232, USB PC interface
Power requirement		Battery AA x 6, DC 9V adapter (optional)
Dimensions/ Weight		181 x 68 x 45 mm/ 303 g

More Information

SKU	MG-3003SD
Weight	303.000000
Dimension	181 x 68 x 45 mm
Manufacturer	Lutron
Power Supply	Battery AA x 6, AC Adapter (optional)
Other Function	Auto power off Data hold Record max/min Zero buttons for DC magnetic Auto shut off
Measurement Range	AC: mT: 300.00 mT x 0.01 mT / 3,000.0 mT x 0.1 mT G: 3,000.0 G x 0.1 G / 30,000 G x 1 G DC: mT: 150.00 mT x 0.01 mT / 1,500.0 mT x 0.1 mT G: 1,500.0 G x 0.1 G / 15,000 G x 1 G
Resolution	mT: 0.01 mT/ 0.1 mT G: 0.1 G/ 1 G
Accuracy	DC: ± ( 5 % rdg. + 10 digit ) AC: ± ( 5 % rdg. + 20 digit )
