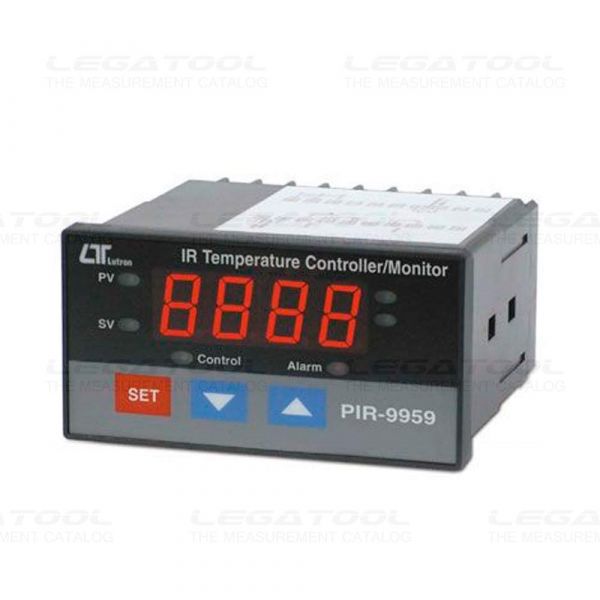

Lutron PIR-9959A เครื่องควบคุม IR Temperature แบบตั้งโต๊ะ | Controller

SKU

PIR-9959A

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

-10%

Special Price ฿7,740.00 was ฿8,600.00

In stock

เครื่องควบคุม Power Factor แบบตั้งโต๊ะ
หน้าจอแสดงผล 4 digits red LED
Temp. measurement range 0.0 to 300.0°C
Alarm value adjustment Hi/ Lo , Control set-point value adjustment,
Measuring value ( Process value )
2 Relay Output offset. Use to offset the PV indication from the actual PV
ยี่ห้อ Lutron, Taiwan

Categories: Temperature Controller & Indicator, Lutron , Product Type 2N (Pre-Order)

Lutron PIR-9959A เครื่องควบคุม IR Temperature แบบตั้งโต๊ะ | Controller

Display 4 digits red LED ขนาด 14 mm, ใช้งานง่ายด้วยการออกแบบฟังก์ชั่นปุ่มกดต่างๆบนแผงหน้าปัด และ standard DIN case (ขนาด : 96 x 48 mm) Control/ Alarm function

Specification

Measurement range	0.0 to 300.0 ℃
Display	4 digits red LED, 14 mm ( 0.55 inch ) digit height
Display	4 indicators : PV ( process value ) indicator SV ( set value ) indicator Control out indicator Alarm out indicator
Input Signal	Linear, 4 to 20 mA
Accuracy	■ Span ± ( 0.15% + 2d ) F.S. ■ Zero ± ( 0.1% + 2d ) F.S.
Relay Output	2 relays
Relay Output	Function : Relay 1 : High/Low control relay Relay 2 : High/Low alarm relay
Circuit	Custom chip of microprocessor LSI circuit
Sampling Time	Approx. 1 second
Main internal function selection	■ Display resolution setting : 1 degree or 0.1 degree ■ Low limit of range adjustment : 4 mA = 0.0 for °C ■ High limit of range adjustment : 20 mA = 400.0 for °C ■ Alarm value adjustment : High Alarm or Low alarm ■ Control value adjustment High control or Low control ■ Control hysteresis value setting ■ Alarm hysteresis value setting ■ Filter value of display reading ■ Offset adjustment ■ Gain adjustment ■ Temp. unit ( C, F )
External Power Supply	DC 24 V, 50 mA max
Data Output	RS 232 PC serial interface
Power Supply	90 to 260 ACV, 50/60 Hz
Power Consumption	■ Approx. 9.2 VA/AC 110V ■ Approx. 12.0 VA/AC 220V
Dimension	■ DIN size : 96 x 48 mm ■ Panel cut size : 92 mm x 46 mm ■ Depth : 110 mm
AccessoriesIncluded	■ Instruction manual x 1 ■ Case holder with screw x 2
Optional Accessories	■ IR Temp. Transmitter, TR-IR420 ■ Data Acquisition software, SW-U801-WIN ■ RS232 cable, UPCB-02 ■ USB cable, USB-01 ■ SD card data logger, DL-9602SD

More Information

SKU	PIR-9959A
Weight	384.000000
Dimension	96 x 48 x 110
Manufacturer	Lutron
Data logger	No
Accuracy	Span ± ( 0.15% + 2d ) F.S. Zero ± ( 0.1% + 2d ) F.S.
(IR) Emissivity	Fixed
Emissivity	N/A
Distance:Spot	N/A
Other Function	Control set-point value adjustmen Measuring value ( Process value ) offset. Use to offset the PV indication from the actual PV Alarm set-point value adjustment
Power Supply	DC 24 V, 50 mA max
Resolution	0.1 ℃
Water resistance	No
Temperature Range	0.0 to 300.0ºC

AccessoriesIncluded

Instruction manual x 1
Case holder with screw x 2

Optional Accessories

IR Temp. Transmitter, TR-IR420
Data Acquisition software, SW-U801-WIN
RS232 cable, UPCB-02
USB cable, USB-01
SD card data logger, DL-9602SD
