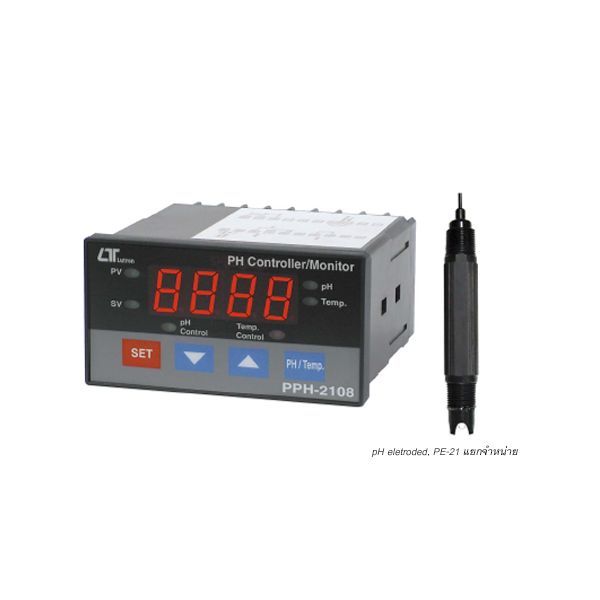

Lutron PPH-2108 pH Controller/ Monitor

Lutron PPH-2108 เครื่องควบคุม pH แบบตั้งโต๊ะ

Display 4 digits red LED ขนาด 14 mm, Prfessinal pH and Temp. meter with standard DIN case (Size : 96 x 48 mm) and Control/ Alarm function.

Measurement range pH (meter only)

• pH Range : 0 to 14
• Resolution : 0.01 pH
• Accuracy : ±(0.02% + 2 d) reading

Temp. Compensation for pH measurement

• Manual : -30 to 100 ºC, be adjusted by push button on front panel.
• Automatic : 0 to 65 ºC, With the optional Temp. probe (TP-07A)

pH Input Impedance

• 10⌃12 ohm

2 Relays Output

• Relay 1 : Control relay
• Relay 2 : Hight/ Low alarm relay

pH Electrode with any BNC connector
pH Calibration : pH7, pH4, pH10, 3 point calibration
Data output : RS232/ USB computer interface
Power : 90 ACV to 264 ACV, 50/ 60 Hz
Dimension :  DIN Size 92 x 46 mm (Depth 110 mm)/ Weight : 384 g

Accessories Included :

• Instruction manual x 1
• Case holder with screw x 2

Optional Accessories :

• pH electrodes : PE-21, PE-03
• pH buffer solution : 4, 7, 10 pH buffer
• USB cable, USB-01
• RS232 cable, UPCB-02
• Data Acquisition software, SW-U801-WIN
