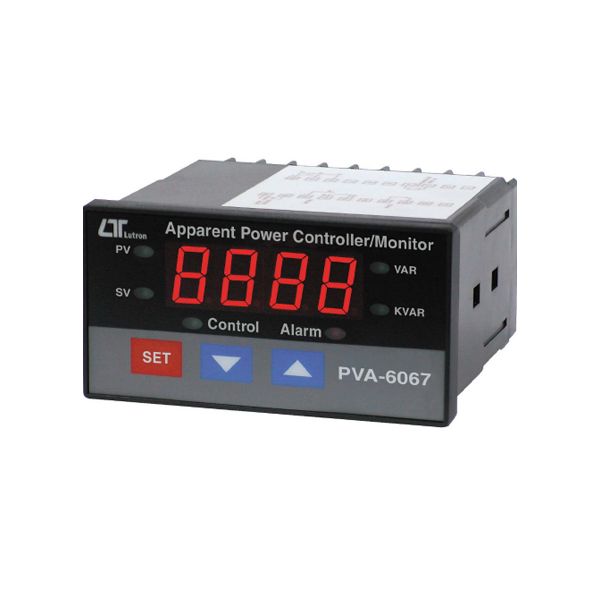

Lutron PVA-6067 Apparent Power Controller/ Monitor

Lutron PVA-6067 เครื่องควบคุม Apparent Power แบบตั้งโต๊ะ

Display 4 digits red LED ขนาด 14 mm,  Professinal Apparent power meter with standard DIN case (Size : 96 x 48 mm) and Control/ Alarm function.

Measurement range (without PT and CT, direct input)

• Measurement Range : 0 to 6,000 VA
• Resolution : 1 VA
• Accuracy : ±(0.5% + 5 d) reading

Measurement range (with PT and CT, direct input)

• Measurement Range : 0 to 999.9 KVA
• Resolution : 0.1 KVA
• Accuracy : ±(0.5% + 5 d) reading

Input signal *w/o PT. CT.

• ACV : 0 to 600 ACV, 40 to 400 Hz
• ACA : 0 to 10 A, 40 to 400 Hz

2 Relays Output

• Relay 1 : Control relay
• Relay 2 : Hight/ Low alarm relay

Zero adustment : Automatic
Data output : RS232/ USB computer interface
Power : 90 ACV to 264 ACV, 50/ 60 Hz
Dimension : DIN Size 92 x 46 mm (Depth 110 mm)/ Weight : 261 g

Accessories Included :

• Instruction manual x 1
• Case holder with screw x 2

Optional Accessories :

• USB cable, USB-01
• RS232 cable, UPCB-02
• Data Acquisition software, SW-U801-WIN
