Lutron TM-947USB 4 Channels Thermometer (Type K/J/R/S/E/T, Pt 100 ohm)

SKU
TM-947USB

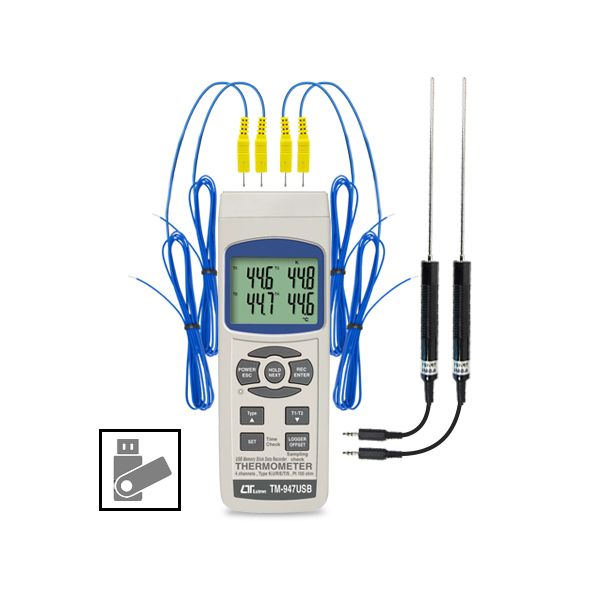

main product photo
Out of stock

Lutron TM-947USB 4 Channels Thermometer
Type K/J/R/S/E/T, Pt 100 ohm, 4 display
Display 4 channels Temp. at the same time
Resolution : °C / °F, 0.1 degree/1 degree
Data hold, Record (max., min.)
RS232/USB computer interface

Categories: Temperature Dataloggers, Probe Type Digital Thermometers, Lutron , Discontinued Products
Lutron

Lutron TM-947USB 4 Channels Thermometer
Type K/J/R/S/E/T, Pt 100 ohm

Lutron TM-947USB 4 Channels Thermometer (Type K/J/R/S/E/T, Pt 100 ohm) Real time data recorder, save the data into the SD memory card and can be download to the Excel.

Thermocouple เลือกซื้อ Thermocouple เพิ่มเติม Click!

Sensor Type Range Resolution Accuracy
Type K -50.1 to -100.0 °C 0.1°C ±(0.4 % + 1 °C)
-50.0 to 999.9 °C ±(0.4 % + 0.5 °C)
1000 to 1300 °C 1°C ±(0.4 % + 1 °C)
Type J -50.1 to -100.0°C 0.1°C ±(0.4 % + 1 °C)
-50.0 to 999.9 °C ±(0.4 % + 0.5 °C)
1000 to 1150°C 1 °C ±(0.4 % + 1 °C)
Type T -50.1 to -100.0 °C 0.1 °C ±(0.4 % + 1 °C)
-50.0 to 400.0 °C ±(0.4 % + 0.5 °C)
Type E -50.1 to -100.0 °C 0.1 °C ±(0.4 % + 1°C)
-50.0 to 900.0 °C ±(0.4 % + 0.5 °C)
Type R 0 to 1700°C 1 °C ±(0.5 % + 3 °C)
Type S 0 to 1500°C 1 °C ±(0.5 % + 3 °C)
PT 100 (Probe TP-101 is the Optional Accessory) -199.9 to 850.0 °C 0.1 °C ± (0.4 % + 1 °C)
EXCEL Data screen (for example) EXCEL Graphic screen (for example)
EXCEL data screen (for example) EXCEL graphic screen (for example)
SKUTM-947USB
Weight489.000000
Dimension177 x 68 x 45 mm.
ManufacturerLutron
Measurement objectAmbient Temperature, Core Temperature, Surface Temperature, Temperature in Liquid
Sensor connector typeMiniture connector for thermocouple
Supported sensor TypeType K, J, R, S, E, T, Pt 100 ohm
Other Function

Data hold, record max. and min. reading

Power SupplyAA x 6 pcs.
Resolution0.1 ℃
Temperature Sensor TypeRTD (Pt100, Pt1000), Thermocouple
Number of Channel3 Channels and more...
Water resistanceNo
Sensor Output InterfaceNo
Temperature Range-100 to 1300 ºC
Data loggerYes
Accuracy
  • Type K : ±0.4 % + 1 ℃
  • Type J : ±0.4 % + 1 ℃
  • Type T : ±0.4 % + 1 ℃
  • Type E : ±0.4 % + 1 ℃
  • Type R : ±0.5 % + 3 ℃
  • Type S : ±0.5 % + 3 ℃
  • Pt100 : ±0.4 % + 1 ℃
Your Rating

Product's Video

วิดีโอแนะนำการใช้งาน Lutron SW-U801-WIN | โปรแกรม Data Acquisition Software

Included Accessories :

  • TM-947USB
  • Instruction manual

Optional Acessories :

  • Type K thermocouple probe
  • Pt 100 ohm probe (TP-101)
  • USB cable (USB-01)
  • RS232 cable (UPCB-02)
  • Data Acquisition software (SW-U801-WIN)
  • AC to DC 9V adapter
  • Hard carrying case (CA-06)
  • Soft carrying case (CA-05A)
