Mitutoyo M-186-105 Radius Gage 1-7 mm

SKU

M-186-105

Skip to the end of the images gallery

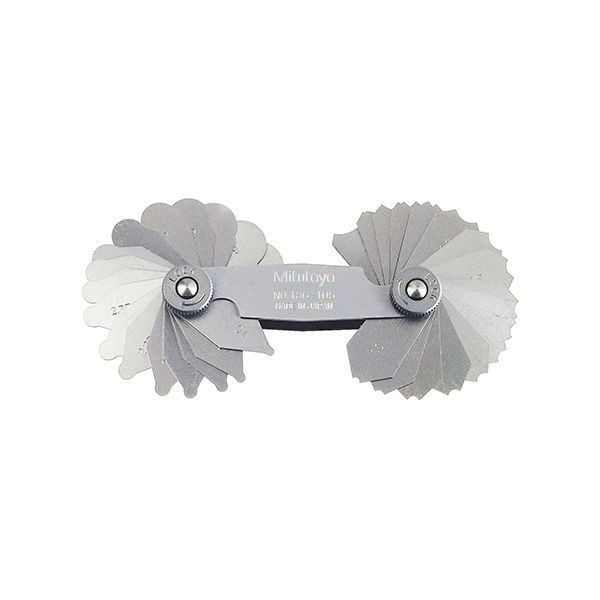

main product photo

Skip to the beginning of the images gallery

Out of stock

Radius Gauge 186 Series

Range 1 to 7mm (34 pairs)

สำหรับการตรวจสอบรัศมีนูนและเว้า

ยี่ห้อ Mitutoyo, Japan

Category: Mitutoyo

Order No.186-105

สำหรับการตรวจสอบรัศมีนูนและเว้า

ช่วงการวัด 1 to 7mm (34 pairs)

ขนาด 1 to 3mm ที่ 0.25mm

ขนาด 3.5 to 7mm ที่ 0.5mm

180° arc

Locking clamp

วัสดุ Steel

ยี่ห้อ Mitutoyo, Japan

Mitutoyo Radius Gages Series 186

Model	Range	Pairs	Composition of leaves	Remarks
Metric
M-186-110	0.4 - 6mm	18	0.4, 0.8, 1, 1.2, 1.5, 16.mm, 1.75 - 3mm by 0.25mm, 3.5 - 6mm by 0.5mm	90° arc
M-186-902	0.5 - 13mm	26	0.5 - 13mm	90° arc
M-186-105	1 - 7mm	34	1 - 3mm by 0.25mm 3.5 - 15mm by 0.5mm	180° arc
M-186-106	7.5 - 15mm	32	7.5 - 15mm by 0.5mm	180° arc
M-186-107	15.5 - 25mm	30	15.5 - 20mm by 0.5mm 21 - 25mm by 1mm	180° arc
Inch
M-186-103	1/32 - 17/64 Inch	16	1/32 - 17/64 Inch by 64ths	90° arc
M-186-101	1/32 - 1/4 Inch	15	1/32 - 1/4 Inch by 64ths	180° arc
M-186-102	17/64 - 1/2 Inch	16	17/64 - 1/2 Inch by 64ths	180° arc
M-186-104	9/32 - 33/64 Inch	16	9/32 - 33/64 Inch by 64ths	90° arc
M-186-901*	1/64 - 1/2 Inch	25	1/64 - 1/2 Inch by 64ths 9/32 - 1/2 Inch by 32nds	-

* Each gage has five measuring locations

More Information

SKU	M-186-105
Weight	0.000000
Dimension	0
Manufacturer	Mitutoyo
Leaves	26
Contents - Size Composition	1 to 3mm by 0.25mm 3.5 to 7mm by 0.5mm
Material	Steel
mm or inch?	mm
Type of Radius Gauge	178 type
Accuracy	No
