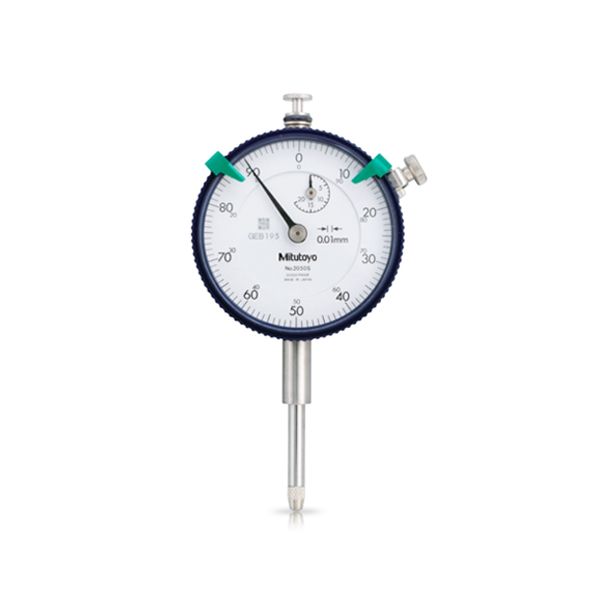

Mitutoyo M-2050SB Dial Indicators

ไดอัลเกจ Mitutoyo M-2050SB

ช่วงการวัด 20 mm

Graduation 0.01mm

Accuracy ±0.02mm

Dial reading 0-100

Range / Rev 1mm

Measuring force 2.0N or less

w/ damper at lowest rest point

outside diameter 57mm

Type ISO/JIS

ยี่ห้อ Mitutoyo, Japan

Dimention ไดอัลเกจ Mitutoyo Series 2 Metric Standard Type

Dimentions	Model	A	B	C	D
	2050S	38.8	75.2	16.9	29.8
	2050S-60	59.8	87.2	12.3	46.4
	2050S-19	38.8	75.2	16.9	29.8
	2320S-10	38.8	75.2	16.9	29.8
	2052S	38.8	88.7	16.9	43.3
	2052S-19	38.8	88.7	16.9	43.3
	2330S-10	38.8	88.7	16.9	43.3
	2952S	38.8	88.7	16.9	43.3

	Shockproof type		Waterproof type		Long stem type		Jeweled bearing type
	Double scale spacing type		w/ coaxial revolution counter		Reverse reading type		w/ damper at lowest rest point

Specifications ไดอัลเกจ Mitutoyo Series 2 Model

Metric (Stem dia. ø8mm M2.5 x 0.45 Thread)

Model

Range

Graduation

Accuracy

Measuring force

w / lug

Flat-back

2110S-10

2110SB-10

1mm

0.001mm

±0.005mm

1.5N or less

√

√

√

2110S-70

2110SB-70

1mm

0.001mm

±0.005mm

2.0N or less

√

√

√

√

2109S-10

2109SB-10

1mm

0.001mm

±0.005mm

1.5N or less

√

√

2109SH-10

2109SHB-10

1mm

0.001mm

±0.003mm

1.5N or less

√

√

-

2109SLB-10

1mm

0.001mm

±0.005mm

1.5N or less

√

√

√

2109S-70

2109SB-70

1mm

0.001mm

±0.005mm

2.0N or less

√

√

√

2113S-10

2113SB-10

2mm

0.001mm

±0.007mm

1.5N or less

√

√

2118S-10

2118SB-10

5mm

0.001mm

±0.010mm

1.5N or less

√

2119S-10

2119SB-10

5mm

0.001mm

±0.010mm

1.5N or less

√

2124S-10

2124SB-10

5mm

0.005mm

±0.012mm

1.5N or less

√

2044S

2044SB

5mm

0.01mm

±0.012mm

1.4N or less

2044S-09

2044SB-09

5mm

0.01mm

±0.013mm

1.4N or less

√

2044S-60

2044SB-60

5mm

0.01mm

±0.012mm

2.5N or less

√

2045S

2045SB

5mm

0.01mm

±0.012mm

1.4N or less

√

2046S

2046SB

10mm

0.01mm

±0.013mm

1.4N or less

2046SY

2046SYB

10mm

0.01mm

±0.013mm

1.4N or less

2046SH

2046SHB

10mm

0.01mm

±0.08mm

1.4N or less

-

2046SLB

10mm

0.01mm

±0.013mm

1.4N or less

√

2046S-09

2046SB-09

10mm

0.01mm

±0.015mm

1.4N or less

√

2046S-60

2046SB-60

10mm

0.01mm

±0.013mm

2.5N or less

√

2046S-69

2046SB-69

10mm

0.01mm

±0.015mm

2.5N or less

√

√

2046S-15

2046SB-15

10mm

0.01mm

±0.013mm

0.8N or less

√

2310S-10

2310SB-10

10mm

0.01mm

±0.015mm

1.4N or less

√

√

2902S

2902SB

10mm

0.01mm

±0.013mm

1.4N or less

√

2047S

2047SB

10mm

0.01mm

±0.013mm

1.4N or less

2050S

2050SB

20mm

0.01mm

±0.020mm

2.0N or less

√

2050S-60

2050SB-60

20mm

0.01mm

±0.020mm

2.5N or less

√

2050S-19

2050SB-19

20mm

0.01mm

±0.020mm

2.0N or less

√

√

√

2320S-10

2320SB-10

20mm

0.01mm

±0.020mm

2.0N or less

√

√

√

2052S

2052SB

30mm

0.01mm

±0.025mm

2.5N or less

√

2052S-19

2052SB-19

30mm

0.01mm

±0.025mm

2.5N or less

√

√

√

2330S-10

2330SB-10

30mm

0.01mm

±0.025mm

2.5N or less

√

√

√

2952S

2952SB

30mm

0.01mm

±0.025mm

2.5N or less

√

√

*Use in a vertical position only (contact point downward).
