Mitutoyo M-406 Outside Micrometers Series

SKU

M-406 Outside Micrometers

Skip to the end of the images gallery

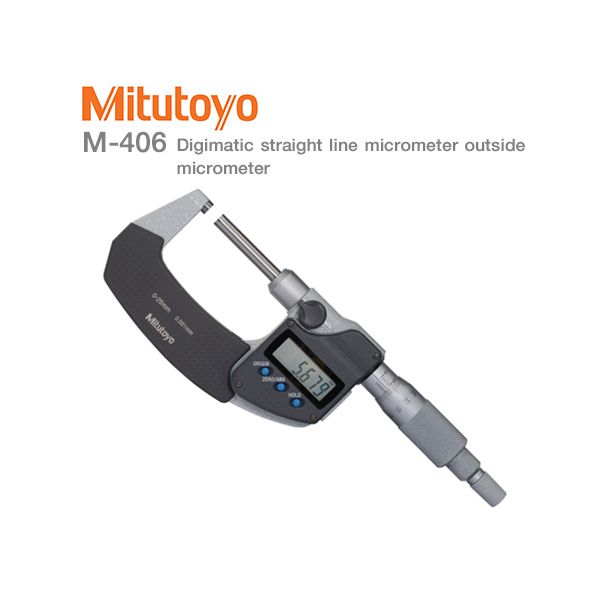

main product photo

Skip to the beginning of the images gallery

Out of stock

Outside Micrometers
Non-rotating spindle.
Equipped with Ratchet Stop for constant measuring force.
Mitutoyo, Japan

Categories: Micrometers, Mitutoyo

Mitutoyo M-406 Outside Micrometers Series

Outside Micrometers
Non-rotating spindle.
Equipped with Ratchet Stop for constant measuring force.
Battery: SR44 ×1
Battery life: Approx. 2.4 years
Mitutoyo, Japan

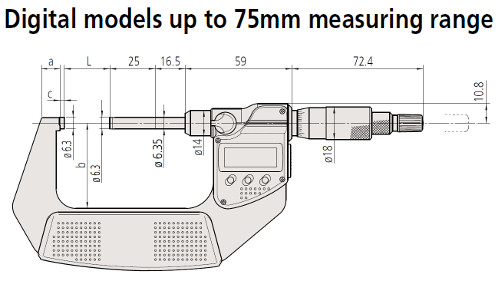

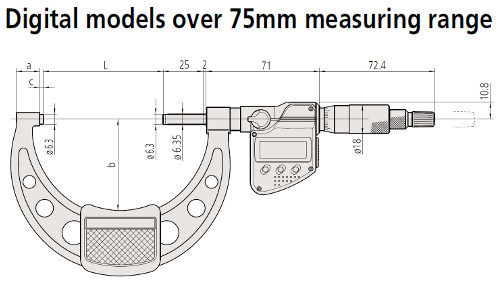

Dimension Mitutoyo M-406 Outside Micrometers Series


Range		L	a	b	c
0 - 25mm		0	7	32	2.8
25 - 50mm		25	9.8	47
50 - 75mm		50	11.2	60
75 - 100mm		75	14.6	57	2.3

Specification Mitutoyo M-406 Outside Micrometers Series

Metric
Models	Range	Resolution	Accuracy	Flatness	Parallelism
406-250-30	0 - 25mm	0.001mm	±3μm	0.3μm	3μm
406-251-30	25 - 50mm
406-252-30	50 - 75mm
406-253-30	75 - 100mm		±4μm		4μm
Inch
Models	Range	Resolution	Accuracy	Flatness	Parallelism
406-350-30	0 - 1"	.00005" / 0.001mm	±.00015"	.000012"	.00012"
406-351-30	1" - 2"
406-352-30	2" - 3"
406-353-30	3" - 4"		±.0002"		.00016"

More Information

SKU	M-406 Outside Micrometers
Manufacturer	Mitutoyo
Data logger	No
Resolution	0.001mm / .00005"
Measurement Range	Metric 0 - 25mm 25 - 50mm 50 - 75mm 75 - 100mm Inch 0 - 1" 1" - 2" 2" - 3" 3" - 4"
Other Function	No
Power Supply	SR44
Water resistance	No
Sensor Output Interface	No
Accuracy	Reference by Specification table depending on models
