Mitutoyo M-505 Dial Caliper Series

SKU
M-505 Dial Caliper Series

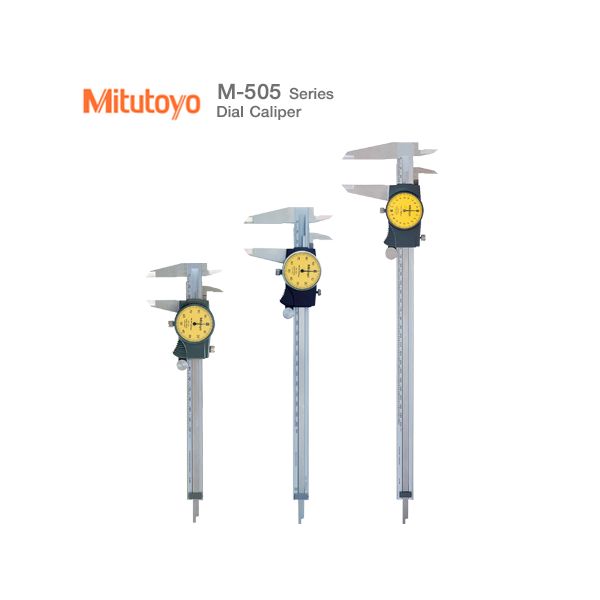

main product photo

Out of stock

M-505 Dial Caliper Series
Measuring Range 0 - 300mm, 0 - 12"
Can measure OD, ID, depth and steps.
New designed dial movement for ultra smooth sliding and high shock protection.
Mitutoyo, Japan

Mitutoyo M-505-732 Dial Caliper (0 - 150mm)   + ฿0.00
1
Categories: Calipers, Mitutoyo
Mitutoyo

Mitutoyo M-505 Dial Caliper Series

Measuring Range 0 - 300mm, 0 - 12"
Can measure OD, ID, depth and steps.
New designed dial movement for ultra smooth sliding and high shock protection.
Lock screw for dial bezel and for holding the sliding jaw position.
Mitutoyo, Japan



4 way Measurement Mitutoyo M-505 Dial Caliper Series

Outside measurement Inside measurement Step measurement Depth measurement
Dial Caliper 505 Series Dial Caliper 505 Series Dial Caliper 505 Series Dial Caliper 505 Series



Dimention Mitutoyo M-505 Dial Caliper Series

Dimention and mass Range L A B C D Mass (g)

DIMENSIONS AND MASS

 0 - 100 mm 180 40 21 16.5 16 150
0 - 150 mm 231 40 21 16.5 16 175
0 - 200 mm 288 50 24.5 20 16 185
0 - 300 mm 403 64 27.5 22 20 370
0 - 1000 mm 1240 130 60 50 32 3,300



Specifications Mitutoyo M-505 Dial Caliper Series

Model Range Accuracy Graduation

Remarks
Metric 1mm Per One Revolution
M-505-732 0 - 150mm ±0.03mm 0.01mm —
M-505-733 0 - 200mm ±0.03mm 0.01mm —
Metric 2mm Per One Revolution
M-505-730 0 - 150mm ±0.03mm 0.02mm —
M-505-734 0 - 150mm ±0.03mm 0.02mm Carbide-tipped jaws for OD measurement
M-505-735 0 - 150mm ±0.03mm 0.02mm Carbide-tipped jaws for OD & ID measurement
M-505-731 0 - 200mm ±0.03mm 0.02mm —
M-505-745 0 - 300mm ±0.04mm 0.02mm —
Inch 1" Per One Revolution
M-505-742 0 - 6" ±0.001" 0.001" —
M-505-742-51 0 - 6" ±0.001" 0.001" Blue Dial Face
M-505-742-52 0 - 6" ±0.001" 0.001" Purple Dial Face
M-505-742-53 0 - 6" ±0.001" 0.001" Green Dial Face
M-505-745-54 0 - 6" ±0.001" 0.001" Red Dial Face
M-505-745-55 0 - 6" ±0.001" 0.001" Orange Dial Face
M-505-745-56 0 - 6" ±0.001" 0.001" Black Dial Face
M-505-736 0 - 6" ±0.001" 0.001" Carbide-tipped jaws for OD measurement
M-505-738 0 - 6" ±0.001" 0.001" Carbide-tipped jaws for OD & ID measurement
M-505-743 0 - 8" ±0.002" 0.001" —
M-505-737 0 - 8" ±0.002" 0.001" Carbide-tipped jaws for OD measurement
M-505-739 0 - 8" ±0.002" 0.001" Carbide-tipped jaws for OD & ID measurement
M-505-746 0 - 12" ±0.002" 0.001" —
M-505-747 0 - 12" ±0.002" 0.001" Carbide-tipped jaws for OD measurement
M-505-748 0 - 12" ±0.002" 0.001" Carbide-tipped jaws for OD & ID
Inch 2" Per One Revolution
M-505-740 0 - 6" ±0.15mm 0.001" —
M-505-744 0 - 6" ±0.15mm 0.001" Carbide-tipped jaws for OD measurement
M-505-741 0 - 8" ±0.15mm 0.001" —
M-505-749 0 - 12" ±0.15mm 0.001" —
M-505-750 0 - 12" ±0.15mm 0.001" Carbide-tipped jaws for OD measurement
SKUM-505 Dial Caliper Series
ManufacturerMitutoyo
Data loggerNo
Maximum Range300mm and more
Type of CaliperDial Caliper
Resolution No
Measurement Range0 to 300mm
Other FunctionNo
Power SupplyNo Need
Water resistanceNo
Sensor Output InterfaceNo
AccuracyNo
