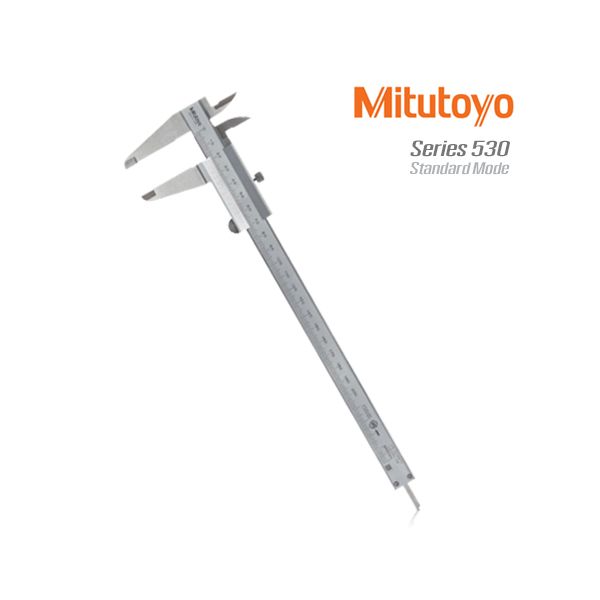

Mitutoyo M-530 Series Vernier Caliper

Vernier Caliper Mitutoyo M-530 Series

Vernier Caliper for measure any object
Can measure OD (outside diameter), ID (inside diameter), depth, steps
Graduation: 0.05mm, 0.05mm (1/128”) or .001” (1/128”)
High accuracy type: 0.02mm or 0.02mm (.001”)
Mitutoyo, Japan

4 ways Measurement Vernier Caliper Mitutoyo 530 Series

OD measurement	ID measurement	Step measurement	Depth measurement

Dimention Vernier Caliper Mitutoyo 530 Series

Metric

Dimention and mass	Range	L	A	B	C	D	Mass (g)
	0 - 150 mm	229	40	21	17	16	143
	0 - 200 mm	288	50	24.5	20.5	16	180
	0 - 300 mm	403	64	27.5	22	20	335
	0 - 600 mm	780	90	47	38	25	1,300
	0 - 1000 mm	1240	130	60	50	32	3,300

Specifications Vernier Caliper SERIES 530 Standard Model

Metric

Model	Range	Accuracy	Graduation	Remarks
M-530-102	0 - 150mm	±0.05mm	0.05mm	ø1.9mm Depth bar
M-530-101	0 - 150mm	±0.05mm	0.05mm	—
M-530-320	0 - 150mm	±0.05mm	0.05mm	Carbide-tipped jaws for OD measurement
M-530-335	0 - 150mm	±0.05mm	0.05mm	Carbide-tipped jaws for OD & ID measurement
M-530-122	0 - 150mm	±0.03mm	0.02mm	High accuracy model
M-530-108	0 - 200mm	±0.05mm	0.05mm	—
M-530-321	0 - 200mm	±0.05mm	0.05mm	Carbide-tipped jaws for OD measurement
M-530-123	0 - 200mm	±0.03mm	0.02mm	High accuracy model
M-530-109	0 - 300mm	±0.08mm	0.05mm	—
M-530-322	0 - 300mm	±0.08mm	0.05mm	Carbide-tipped jaws for OD measurement
M-530-124	0 - 300mm	±0.04mm	0.02mm	High accuracy model: ±0.04mm
M-530-501	0 - 600mm	±0.1mm	0.05mm	—
M-530-502	0 - 1000mm	±0.15mm	0.05mm	—

Metric/Inch with metric/inch dual scale

Model	Range	Accuracy	Graduation	Remarks
M-530-104	0 - 150mm / 0 - 6"	±0.05mm	0.05mm	—
M-530-316	0 - 150mm / 0 - 6"	±0.05mm	0.05mm	—
M-530-312	0 - 150mm / 0 - 6"	±0.03mm	0.05mm	High accuracy model
M-530-114	0 - 200mm / 0 - 8"	±0.05mm	0.05mm	—
M-530-118*	0 - 200mm / 0 - 8"	±0.03mm	0.02mm	High accuracy model
M-530-115	0 - 300mm / 0 - 12"	±0.08mm	0.05mm	—
M-530-119*	0 - 300mm / 0 - 12"	±0.04mm	0.05mm	High accuracy model

Inch with inch/inch dual scale

Model	Range	Accuracy	Graduation	Remarks
M-530-105	0 - 6"	±0.0015"	0.001"	—
M-530-116	0 - 8"	±0.0015"	0.001"	—

* Graduation: 0.02mm
**No depth measuring bar

More Information

SKU	M-530 Series
Manufacturer	Mitutoyo
Data logger	No
Maximum Range	100mm, 150mm, 200mm, 300mm and more
Type of Caliper	Vernier Caliper
Resolution	No
Measurement Range	No
Other Function	No
Power Supply	No Need
Water resistance	No
Sensor Output Interface	No
Accuracy	±
