Mitutoyo M-550 ABSOLUTE Digimatic Caliper Series

SKU
M-550 ABSOLUTE Digimatic Series

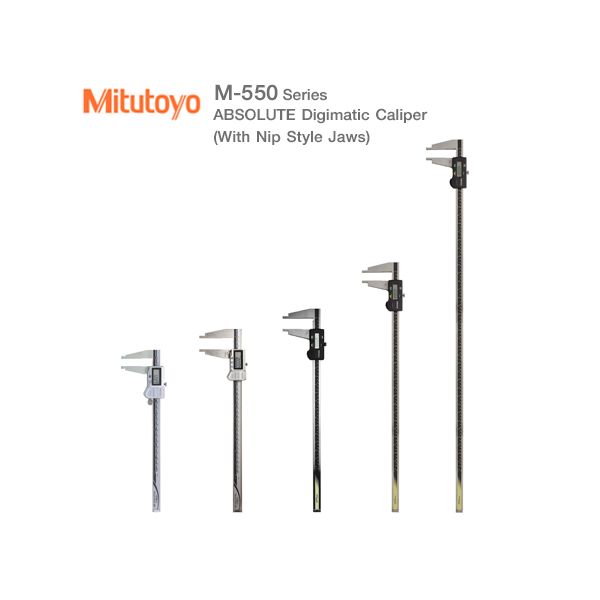

main product photo

Out of stock

M-550 Series Digimatic Caliper with Nib Style Jaws
Range Measure 0 to 1000mm, 0 to 40 inch
The jaws have radiused measuring faces for accurate ID measurement.
LCD Display
Battery SR44 (Battery Life 3.5 years)
Mitutoyo, Japan

1
Categories: Calipers, Mitutoyo
Mitutoyo

Mitutoyo M-550 ABSOLUTE Digimatic Caliper Series

The jaws have radiused measuring faces for accurate ID measurement.
Range 0 - 1000mm, 0 - 40 inch
Accuracy Excluding quantizing error
LCD Display
Battery SR44 (Battery Life 3.5 years)
Mitutoyo, Japan

Functions

  • Origin-Set
  • Zero-Set
  • power on/off
  • inch/mm conversion (inch/mm type only)
  • SPC data output
  • data hold (optional)
  • offset
  • preset
  • แจ้งเตือนสถานะแบตเตอรี่
  • scale contamination
  • counting value

Dimention Mitutoyo M-550 ABSOLUTE Digimatic Series with Nib Style Jaws

Dimention and mass Range L a b c

M-550_Digimatic_Caliper_Series

 0 - 200 mm 288 60 8 16
0 - 300 mm 403 75 12 20
0 - 450 mm 630 100 18 25
0 - 600 mm 780 100 18 25
0 - 1000 mm 1240 140 24 32



Specifications Mitutoyo M-550 ABSOLUTE Digimatic Series with Nib Style Jaws

Model Range* Resolution Accuracy Remarks
Metric
M-550-301-10 0 - 200mm (10.1 - 210mm) 0.01mm ±0.03mm IP67
M-550-331-10 0 - 300mm (10.1 - 310mm) 0.01mm ±0.03mm IP67, with offset/preset function for easy inside measurement
M-550-203-10 0 - 450mm (20.1 - 470mm) 0.01mm ±0.05mm
M-550-205-10 0 - 600mm (20.1 - 620mm) 0.01mm ±0.05mm
M-550-207-10 0 - 1000mm (20.1 - 1020mm) 0.01mm ±0.07mm
Inch/Metric
M-550-311-10 0 - 8" (.404" - 8.4") .0005"/0.01mm ±.0015" IP67
M-550-341-10 0 - 12" (.404" - 12.4") .0005"/0.01mm ±.002" IP67, with offset/preset function for easy inside measurement
M-550-223-10 0 - 18" (.504" - 18.5") .0005"/0.01mm
M-550-225-10 0 - 24" (.504" - 24.5") .0005"/0.01mm
M-550-227-10 0 - 40" (.504" - 40.2") .0005"/0.01mm ±.003"

*(): Inside measurement
Note: Series 550 is not equipped with a depth bar.

SKUM-550 ABSOLUTE Digimatic Series
ManufacturerMitutoyo
Data loggerNo
Maximum Range200mm, 300mm and more
Type of CaliperDigital Caliper
Resolution 0.01mm, 0.0005"/0.01mm
Measurement Range0 ถึง 1000mm, 0 ถึง 40 inch
Other FunctionNo
Power SupplySR44
Water resistanceNo
Sensor Output InterfaceNo
Accuracy±
Your Rating
PDF Download Catalog ดาวน์โหลดแคตตาล็อค Mitutoyo

อุปกรณ์เสริม (แยกจำหน่าย)

959143

Data hold unit Connecting cables for IT/DP/MUX

05CZA624

SPC cable with data button (1m)*

05CZA625

SPC cable with data button (2m)*

959149

SPC cable with data switch (1m)

959150

SPC cable with data switch (2m)

USB Input Tool Direct

06ADV380A

 SPC cable for USB-ITN-A (2m)*

06ADV380C

 SPC cable for USB-ITN-C(2m) Connecting cables for U-WAVE-T

02AZD790A

 SPC cable for U-WAVE with data button (160mm)*

02AZE140A

 SPC cable for footswitch*

02AZD790C

 SPC cable for U-WAVE with data button (160mm)

02AZE140C

 SPC cable for footswitch * For IP67 models (up to 300mm)
