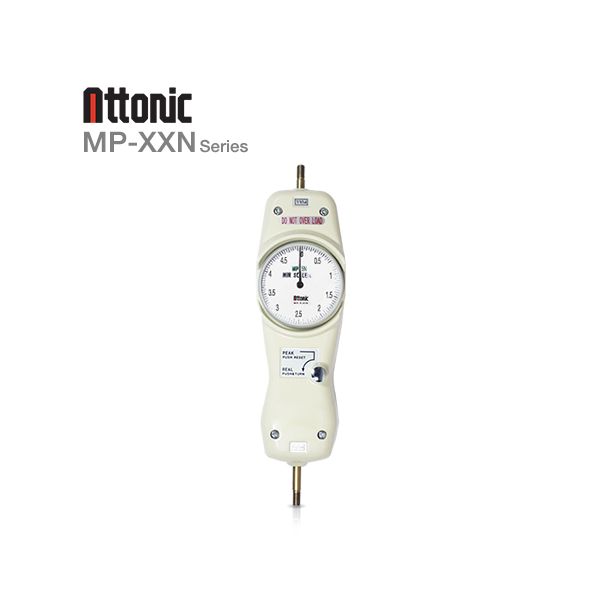

Attonic MP-XXN Series Analog Push Pull Tester

Analog Push Pull Tester
Measurement Range 3 to 300 Newton
Min. scale 0.02N
max.scale 2N
Accuracy ±0.2% full scale
weight 750g
Brand Attonic made in Japan

• Manual/ Automatic

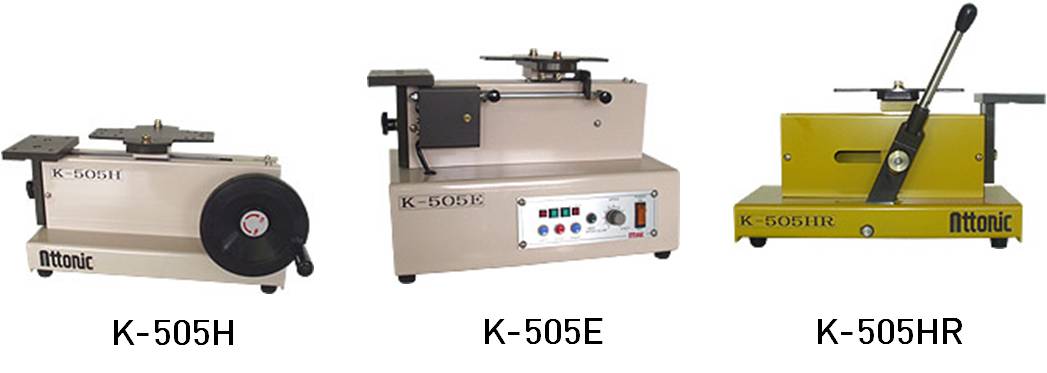

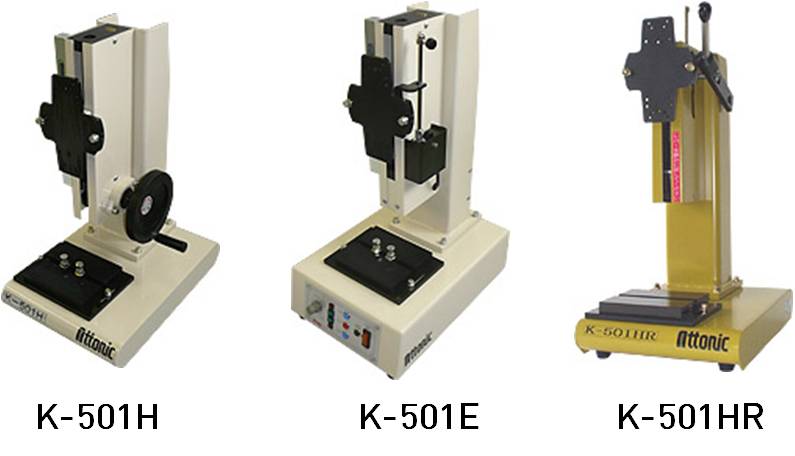

• Vetical/ Horizontal

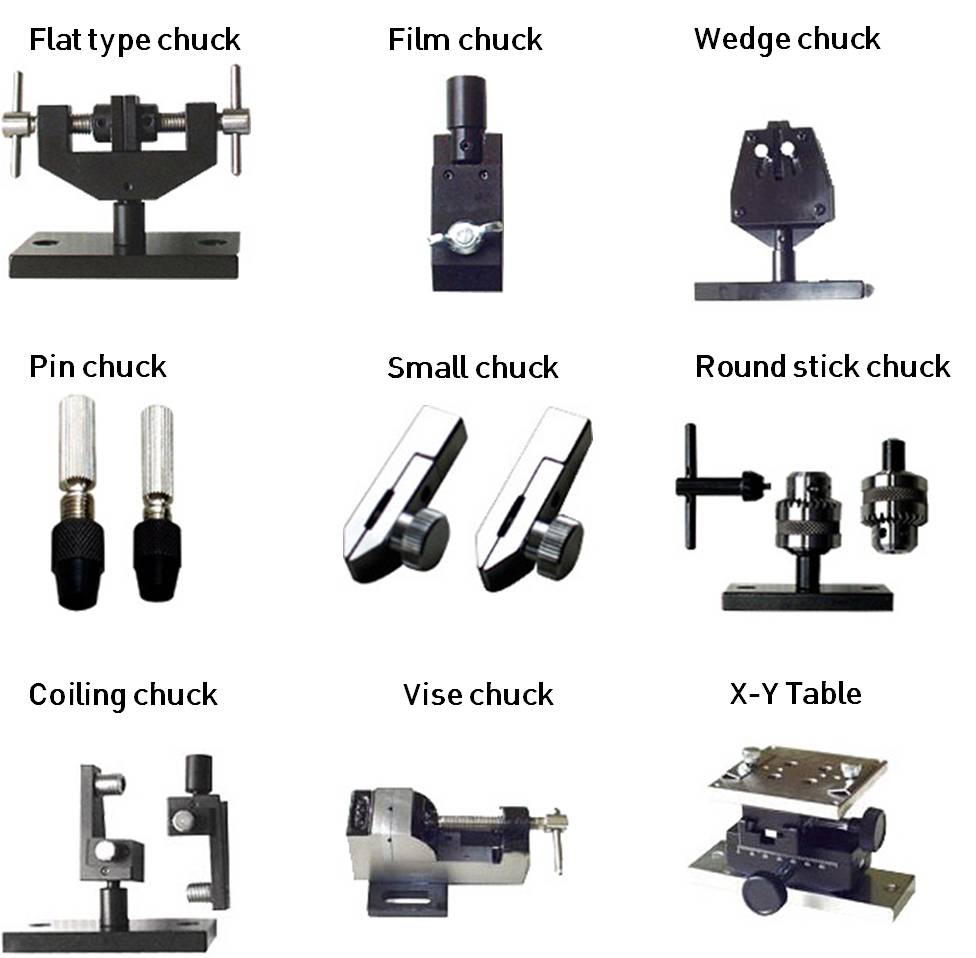

• Flat type chuck
• Film chunk
• Wedge chunk
• Pin chunk
• Small chunk
• Round stick chunk
• Colling chunk
• Vise chuck
• X-Y table



MP-3N Push-pull Tester 3N (min. scale 0.02N)

MP-5N Push-pull Tester 5N (min. scale 0.05N)

MP-10N Push-pull Tester 10N (min. scale 0.1N)

MP-20N Push-pull Tester 20N (min. scale 0.2N)

MP-30N Push-pull Tester 30N (min. scale 0.2N)

MP-50N Push-pull Tester 50N (min. scale 0.5N)

MP-100N Push-pull Tester 100N (min. scale 1N)

MP-200N Push-pull Tester 200N (min. scale 2N)

MP-300N Push-pull Teste 300N (min. scale 2N)

MP-500N Push-pull Tester 500N (min. scale 5N)
