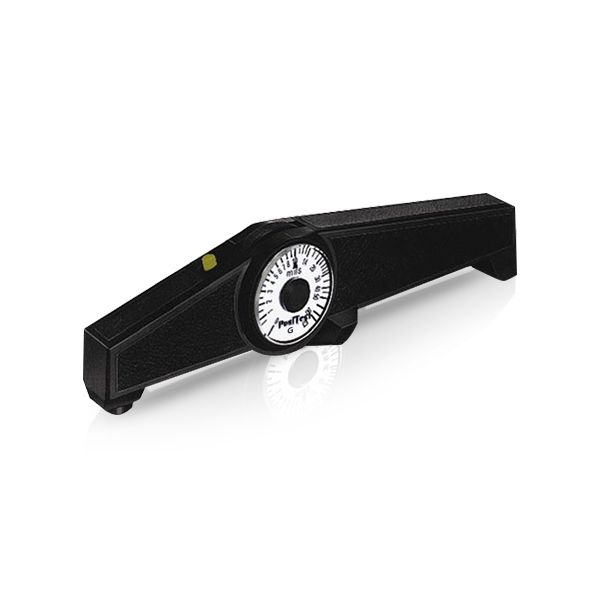

DeFelsko PosiTest-G Magnetic Coating Thickness Gages for Non-Magnetic Coatings on Steel

SKU
PosiTest-G
฿13,200.00
Pre-Order 30-45 days
Out of stock

Highly wear resistant Carbide Probe for longest life and continuous accuracy
Extra rugged housing, not affected by mechanical shock, water, acid or solvents
Unique overall design, fully supported, positive positioning, no pivoting tendencies during measurement
Positive visual and audible indicators to designate when thickness reading is established
“V” grooves in probe housing and gage base allow correct positioning on cylindrical objects
Certificate of Calibration showing traceability to PTB included (Long Form)

Add to Compare

DeFelsko PosiTest-G Magnetic Coating Thickness Gages for Non-Magnetic Coatings on Steel

Accurate

  • Certificate of Calibration showing traceability to PTB included with every gage
  • Matching Calibration Standards and Procedures available for every model
  • Highly wear resistant Carbide Probe for longest life and continuous accuracy
  • Remove center of dial cover for easy calibration adjustment
  • Conforms to national and international standards

Durable

  • Extra rugged housing, not affected by mechanical shock, water, acid or solvents
  • Unique overall design, fully supported, positive positioning, no pivoting tendencies during measurementด
  • Can be used fully supported or with only the front probe area contacting the surface
  • Functions on a permanent rare-earth cobalt magnet
  • No batteries/electronics

Simple

  • Positive visual and audible indicators to designate when thickness reading is established
  • “V” grooves in probe housing and Gage base allow correct positioning on cylindrical objects
  • Compact, lightweight, precisely balanced, independent of gravity – can be used in any position
  • GO/NO-GO button can be pre-set for rapid measurement
  • Probe contact and dial rotation all in a one-finger operation
Application
Electroplating, Thin paint films, Phosphating on steel
Scale
0 to 200 µm
Tolerance
±1 up to 20 µm
±5% of the reading over 20 µm

SKUPosiTest-G
Weight300.000000
Dimension0
ManufacturerDefelsko
Data loggerNo
Resolution No
Measurement Range0 ถึง 200 microns
Other Function

ฟังก์ชั่น GO/ NO-GO เพื่อการวัดที่รวดเร็ว

Power SupplyNo Need
Water resistanceNo
Sensor Output InterfaceNo
Accuracy±1µm ถึง 20µm
