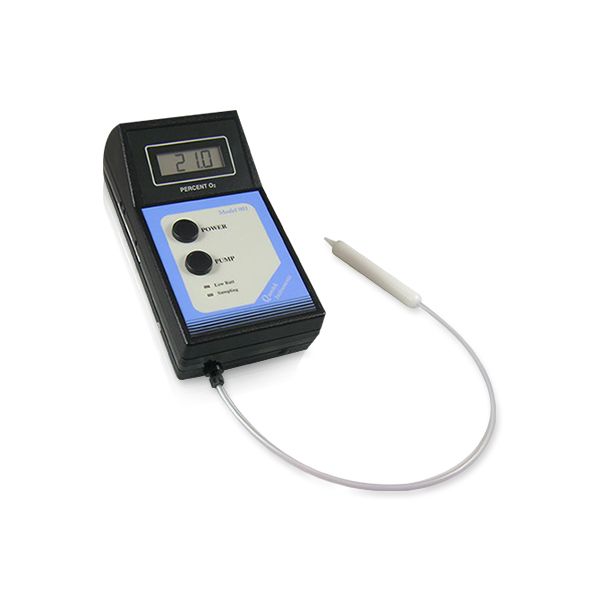

Quantek QU-901 Headspace Oxygen Analyzer

Quantek QU-901 Headspace Oxygen Analyzer เครื่องวิเคราะห์ออกซิเจนในบรรจุภัณฑ์

Oxgygen Analyzer for Food Packagers
Built-in pump & Sensor (Sampling pump: Internal, with adjustable timer)
Easy to Use with Rechargeable Batteries
Calibrates with room air
The expected electrochemical sensor life is typically 5 years, unlike other analyzers with an electrochemical sensor that last 1-2 years.
The sensor is unaffected by high levels of background gases such as nitrogen or carbon dioxide, and unaffected by trace hydrocarbons.
LOWEST TOTAL COST OF OWNERSHIP

Specification

Range	0.0 to 100% Oxygen
Resolution	0.1% Oxygen
Accuracy	±0.1% (below 10% oxygen).
Minimum Detection Limit	0.1%
Drift	less than 1% per month
Sensor	Proprietary electrochemical cell, expected lifetime 4-5 years
Sample Pump	Internal, draws ~5cc/sec, with 2-12 second adjustable timer (on side of unit)
Sampling Assembly	Probe with male luer connection for side-port needle, PTFE tubing
Calibration	Calibrates with room air; SPAN adjustment on side; ZERO adjustment on side
Calibration Frequency	Minimum once per year
Power Supply	Four "AA" NiMH rechargeable batteries; auto shut-off after 45 minutes idle. 100-240V (50-60Hz) Charger included
Backup Power	Four "AA" alkaline batteries (not included)
Input Voltage	100-240V, 50-60Hz
Battery Life	10-14 hours before recharging
Size	200 x 100 x 40 mm
Weight	450g

Application for O2 Measurement

How to Use

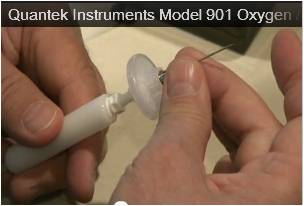

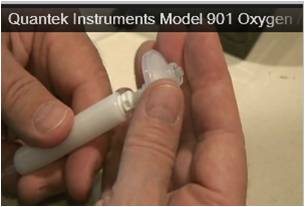

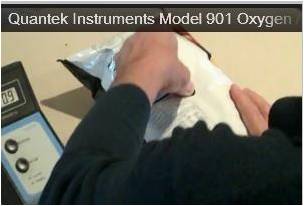

Put filter on probe.	Put needle on filter.	Attached foam pad on package.

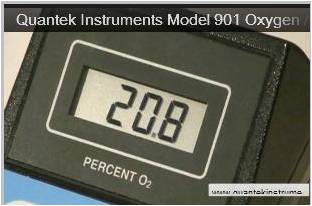

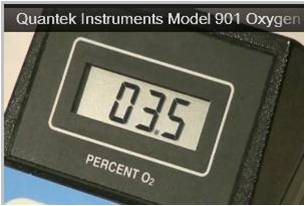

Insert needle onto package through foam pad. Press Pump	Sample is drawn through the probe and into the internal oxygen sensor.	The residual oxygen concentration displays within 15-20 seconds.
