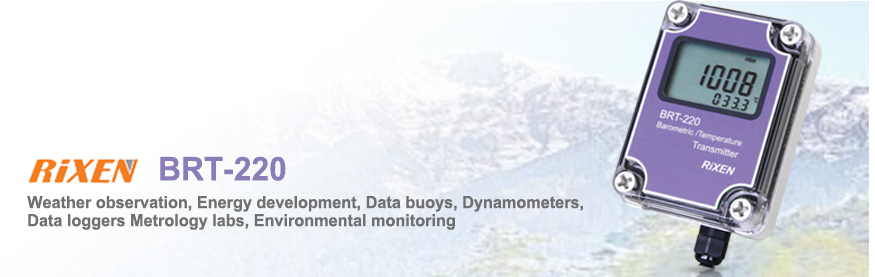

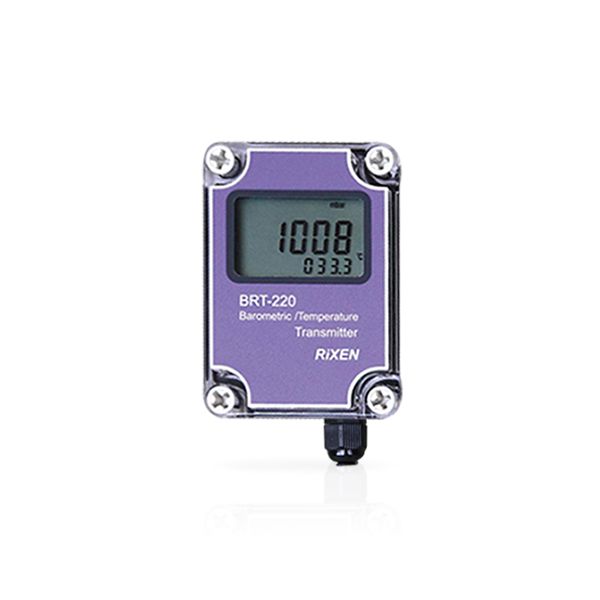

Rixen BRT-220 Barometric/ Temperature Transmitter

SKU

BRT-220

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

Out of stock

Barometric/ Temperature Transmitter
Weather observation, Energy development, Data buoys, Dynamometers,
Data loggers Metrology labs, Environmental monitoring.
Barometric pressure : 100 ~ 1100 mbar
Temperature : -30 ~ +70.0 ºC
Approvals IP65, CE

Discontinued BRT-220 Replaced product BRT-220N

Categories: Barometers, Rixen, Discontinued Products

Rixen BRT-220 Barometric/ Temperature Transmitter

Specifications

Measurement Range	Barometric pressure : 100 to 1100 mbar Temperature: -30 to 70.0 ºC
Analog Output	DC4 to 20mA
Digital Output	RS-485 / Modbus / RTU
Accuracy (at 23ºC)	Barometric pressure: (300 ~ 1,100 mbar)	Absolute Pressure ± 1.5 mbar (at 25ºC) Relative Pressure ± 1.0 mbar (0 to 50ºC) Relative Pressure ± 5.0 mbar (Beyond 0 to 50ºC)
	Temperature :	± 0.5ºC +1digit
Display	Digital LCD display
Power source	DC 9 to 32V, >150mA (Max. DC40V)
Long-term stability	< 1.0 mbar/ year
Housing/ Protection	IP65 rated for dust and Water intrusion
Operating environment	Temperature : -40 to 70ºC / Humidity : 0 to 100 %RH
Dimensions (Weight)	128 × 80 × 50mm (210g)
Accessories	Cable gland, Mounting Kits, Instruction manual
Approvals	IP65, CE

More Information

SKU	BRT-220
Weight	210.000000
Dimension	128 x 80 x 50 mm
Manufacturer	Rixen
Data logger	No
Barometer range	100 to 1100 mbar/ -30 to 70ºC
Other Function	Output 4-20 mA มี LCD Display ในตัว
Power Supply	Battery DC9 - 32V, >150 mA
Resolution	1 mbar/ 0.1ºC
Water resistance	IP65 rated for dust and water intrusion
Sensor Output Interface	No
Accuracy	Barometric pressure (300 ~ 1,100 mbar) Absolute Pressure ± 1.5 mbar (at +25℃) Relative Pressure ± 1.0 mbar (0 ~ +50℃) Relative Pressure ± 5.0 mbar (Beyond 0 ~ +50℃) Temperature ± 0.5℃+1 digit

	ดาวน์โหลดแคตตาล็อค Rixen

Optional Accessories :

Cable gland
mounting kits
Instruction manual
