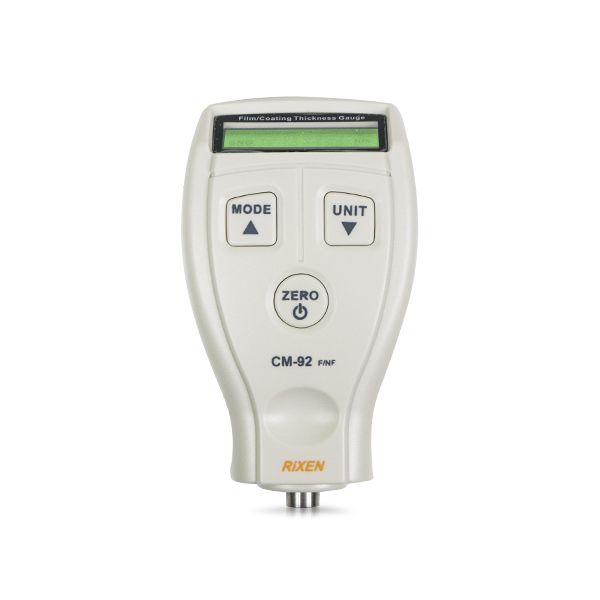

Rixen CM-92 Coating Thickness Tester

Rixen CM-92 Coating Thickness Tester

Features :

• Non-Magnetic coating on Non-Magnetic or Magnetic
• Magnetic Induction Mode
• Fast Response, High Accuracy and Lossless
• AIS, Automatic Identification System
• Single, Successive, Difference of measuring mode
• Zero and Two Basic of calibrating method
• Metric and imperial unit of measurement optional
• LCD back-light, Automatic shutdown

Applications : Painted Parts , Plated Metals , Painted & Plated Cars , Renovation , Construction , Installation Engineering , Chemical Industry , Manufacturing ,
Metalworking , Commodity Inspection , Inspection Field …etc.

• Measurement Range: 0~1500um / 0~59mil / 0~1.5mm
• Accuracy: ≦150um ±2% of rdg + 3um, ≧150um ±3% of rdg + 1um
• Resolution: 0.1um(<100um), 1um(≧100um) / 0.1mil / 0.001mm
• Min. diameter of substrate: Magnetic ø12mm, Non-Magnetic ø50mm
• Min. thickness of magnetic substrate: 0.5mm
• Min. thickness of non-magnetic substrate: 0.5mm
• Min. curvature radius of convex magnetic substrate: 2mm
• Min. curvature radius of concave magnetic substrate: 11mm
• Operating environment: 0~45℃, 10~95%RH
• Display: Digital LCD display with Back-light
• Calibration: Zero, One-point , Two-point
• Main Functions: ※Built-in calibration function ※Back-light ※Single, Successive, Difference measuring modes ※Battery sign and Battery warning ※metric / imperial switchable ※Auto / Manual power off
• Power Supply: Two AAA 1.5V alkaline battery (for over 2000 reading)
• Dimensions: 110 x 62 x 31mm (4.3 x 2.5 x 1.2 in)
• Weight: Approx. 64g (without battery)
• Standard Accessories: CM-92 Coating Thickness Tester, CM-095 Zero test plates x2 (Non-Magnetic x1 , Magnetic x1), CM-096 Calibration foils x6 standards, CM-097 Plastic carrying case, Instruction manual
