Rixen VFT-512 Low Differential Pressure Transducer | Output 4-20mA | 0-5V/ 0-10VDC | RS-485

SKU
VFT-512

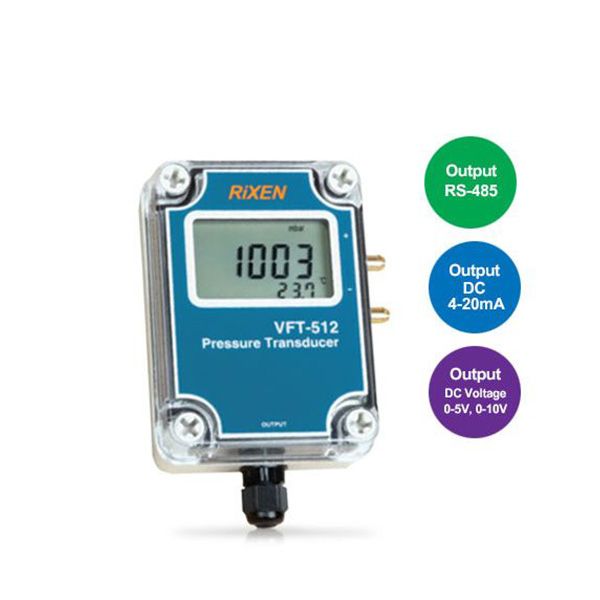

main product photo
฿13,000.00
In stock

Differential Pressure Transducer
Output: 4~20mA | 0~5V / 0~10V | RS-485
Differential Pressure: ±7000Pa / ±700mmH2O / ±70mbar
Wind Speed: 0 to 100m/s (via Pitot tube)
Ceramic sensor, excellent durability
Autop Temperature Compensation | IP65
RIXEN

Add to Compare
Categories: Manometers, Differential pressure, Our Recommendations , Home page recommended, Rixen, Sensor
Rixen

Rixen VFT-512 Differential Pressure Transducer IP65 | Output 4-20mA/ 0-5V/ 0-10VDC/ RS-485

The VFT-512 is a Differential Pressure Transducer, with 3 measurement types: Differential Pressure, Wind Speed, Temperature. Measurement range selectable ±7000Pa / ±700mmH2O / ±70mbar

3 Output types: 4~20mA | 0~5V / 0~10V | RS-485. LCD multi-function display and Ceramic Sensor, excellent durability. Auto Temperature Compensation (ATC) and IP65 protection.
RIXEN

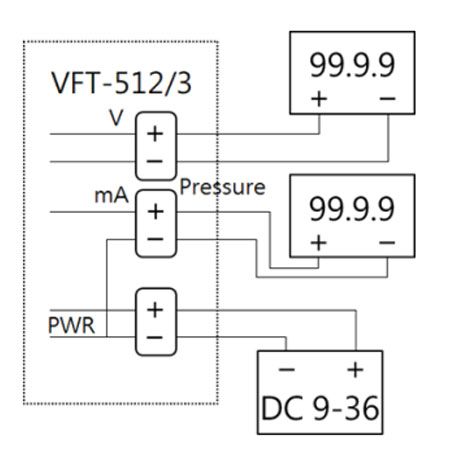

DC Voltage (0-5V, 0-10V) output / DC 4-20mA output ▲ DC Voltage (0-5V, 0-10V) output DC 4-20mA output

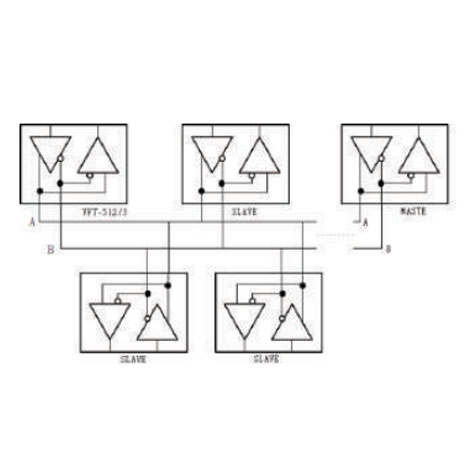

RS-485 output▲ RS-485 output

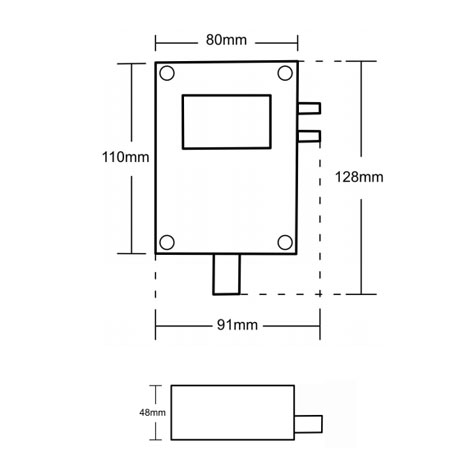

External Dimensions(mm)▲ External Dimensions(mm)
Measuring Range Differential Pressure ±7000Pa / ±700mmH2O / ±70mbar
Wind Speed 0 ~ 100m/s (via Pitot tube)
Resolution Differential Pressure 1Pa / 0.1mmH2O / 0.01mbar
Wind Speed 0.1m/s
Accuracy (at 25°C) ±0.25% F.S / TEB<1%
TEB : Total Error Band
Measurement Unit Differential Pressure: Pa / mbar / mmH2O switchable
Wind Speed : m/s
Temperature : °C/ °F switchable
Media Compatibility Dry air or non-corrosive gases and liquids
Display and Functions LCD display (4-digital), The functions can be displayed : Relative pressure.
Differential Pressure / Wind Speed / Temp./ Max. / Min. / Averages / Measurement Unit
Sampling Rate Approx. 0.5 sec
Output Signal Analog Output : 4 ~ 20mA/ 0 ~ 5V / 0 ~ 10Vdc
Digital Output : RS-485 / Modbus RTU protocol (Wind Pressure / Temp. simultaneously)
Auto temp. compensation 0 ~ +60°C (+32°F ~ +140°F)
Measurement range setting The user can set the measuring range by setting botton
Calibration Zero & Span adjustments and Zero setting
Baud Rate 9600
Over Pressure 2 times FSP
Operating Environment 0 ~ +55°C (+32 ~ +131°F), 0~95%RH non-condensing
Storage Environment 20 ~ +60°C (-4 ~ +140°F), 0~95%RH non-condensing
Power Supply DC 9~32V, ≧150mA (Max. DC36V)
Dimensions 110(L) × 80(W) × 48(D)mm (4.33 × 3.15 × 1.89 inches) ; Not including the pressure hose connector & cable gland
Weight Approx. 215g
Approvals RoHS, CE, IP65
SKUVFT-512
Weight215.000000
Dimension110(L) × 80(W) × 48(D)mm
ManufacturerRixen
Data loggerNo
Type of PressureGauge Pressure
Resolution Differential Pressure: 1Pa | 0.1mmH2O | 0.01mbarr
Wind Speed: 0.1m/s
Measurement RangeDifferential Pressure: ±7000Pa | ±700mmH2O | ±70mbar
Wind Speed: 0 to 100m/s (via Pitot tube)
Other FunctionDifferential Pressure: Pa | mbar | mmH2O switchable
Wind Speed: m/s
Temperature: °C | °F switchable
LCD display (4-digital)
Relative pressure
Differential Pressure
Wind Speed
Temp.
Max./ Min./ Averages
Measurement Unit
Power SupplyDC 9 to 32V
Water resistanceIP65
Sensor Output InterfaceAnalog Output: 4 ~ 20mA | 0 ~ 5V | 0 ~ 10Vdc
Digital Output: RS-485 | Modbus RTU protocol (Wind Pressure | Temp. simultaneously)
Accuracy±0.25% F.S
