Aikoh RZ Series Digital Push Pull Gauge

Measurement Range 10 - 1,000 Newton
Measurement Unit Kgf, N, lb
Function Peak value & Track value
Accuracy ±0.2% F.S.
Dimention 232 x 68 x 40 mm (375g)
Battery Nicd Battery AAA x 3

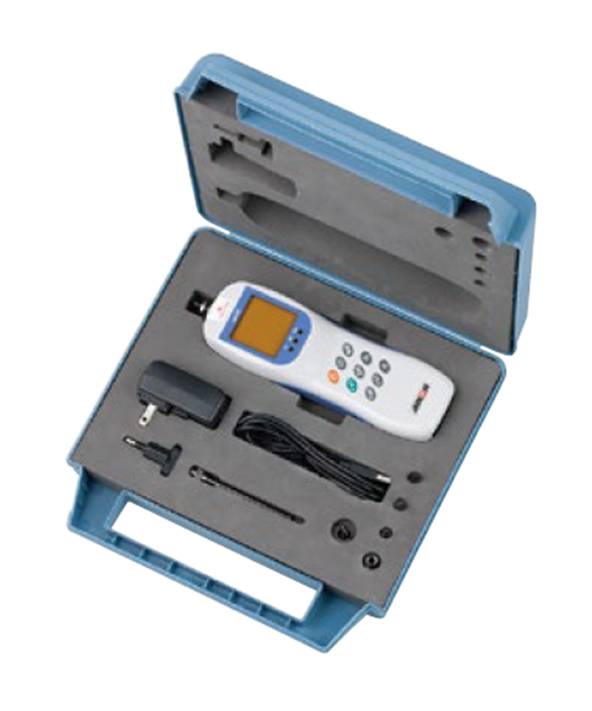

Included Accessories measuring tools,Grips & Jigs,box,adapter

Test Stand

 M-1308U

Equipment connected printer

RX-3000 Software

RZ-OP-1 I/O cable

RZ-OP-2 I/O cable

RZ-OP-3 Mitutoyo DP-1VR printer output

RZ-OP-4 Sanel Electric line Thermal pronter cable

RZ Series Digital Push Pull Gauge

RZ-1 Force Gauge 10N (1Kgf) /min display 0.001N (0.1gf)

RZ-2 Force Gauge 20N (2Kgf) /min display 0.01N (1gf)

RZ-5 Force Gauge 50N (5Kgf) /min display 0.01N (1gf)

RZ-10 Force Gauge 100N (10Kgf) /min display 0.01N (1gf)

RZ-20 Force Gauge 200N (20Kgf) /min display 0.1N (10gf)

RZ-50 Force Gauge 500N (50Kgf) /min display 0.1N (10gf)

RZ-100 Force Gauge 1000N (100Kgf) /min display 0.1N (10gf)
